Lycom EK-114 2 Port Firewire 800 (1394B) ExpressCard/34 Adapter for Notebooks PC/MAC
End Of Life
Lycom EK-114 2 Port Firewire 800 (1394B) ExpressCard/34 Adapter for Notebooks PC/MAC
Scan code: LN40707 Manufacturer code: EK-114
End Of Life

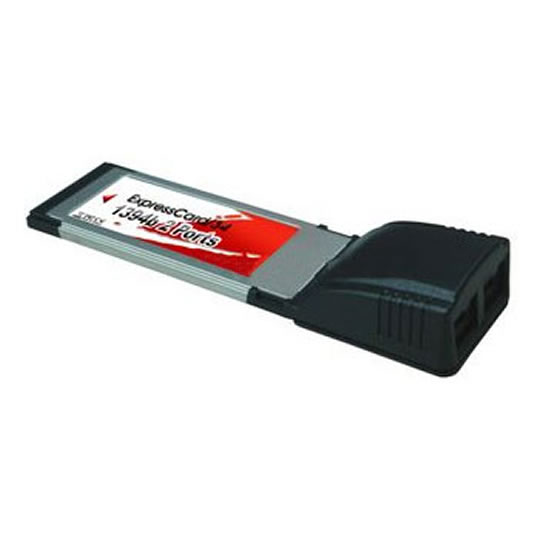

Lycom EK-114 2 Port Firewire 800 (1394B) ExpressCard/34 Adapter for Notebooks PC/MAC : image 1
  • Thumbnail 1 : Lycom EK-114 2 Port Firewire 800 (1394B) ExpressCard/34 Adapter for Notebooks PC/MAC
End Of Life

Lycom EK-114 2 Port Firewire 800 (1394B) ExpressCard/34 Adapter for Notebooks PC/MAC

Lycom EK-114 2 Port Firewire 800 (1394B) ExpressCard/34 Adapter for Notebooks PC/MAC
MORE INFO
MORE INFO

Scan code: LN40707 Manufacturer code: EK-114
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

Product Overview Add 2Ports IEEE 1394b 9Pin (800Mbps) in your ExpressCard/54 or ExpressCard/34 Notebook!
Features • Two Bilingual P1394b 9-Pin Ports
• Truly 1-lane 2.5Gbps PCIe based ExpressCard/34 form factor
• Supports ExpressCard/34 and ExpressCard/54 Notebook
• Compliant with PCI Express Specification, revision 1.0a
• Supports data transfer rate up to 800 Mbps
• Fully supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabite signaling rates
• Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard
• Two 1394b Bilingual 9-pin Ports at S800 or S400b speed
• Built-in FIFOs for isochronous transmit (2048 bytes), asynchronous transmit (2048 bytes), and receive (3072 bytes)
• 32-bit CRC generation and checking for receive/transmit packets
• Supports Plug and Play
• 1.3 mm DC power jack for optional 12V1A DC Power Adapter
• Supported by built-in 800Mbps drivers on Windows 98, Millennium
• Built-in 800Mbps driver supported by Mac OS X v10.2.4 or newer
• ubCoreTM free driver support 32bit / 64bit Windows 7, Vista, XP, 2003, 2008, 2000
• Chipset : TI
• Fully RoHS compliant
