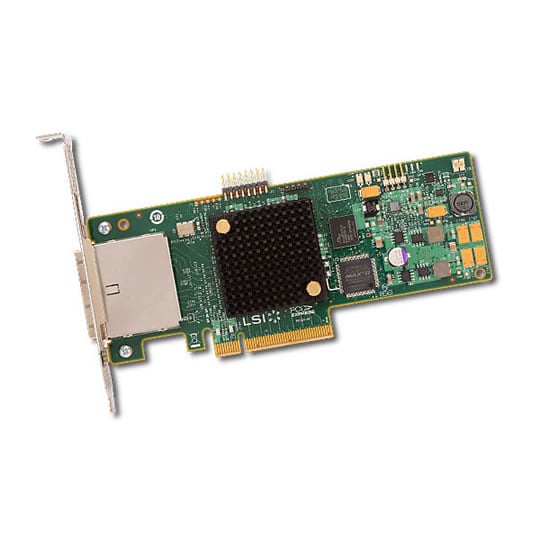

LSI SAS 9205-8e SGL - 8-Port Ext, 6Gb/s SATA + SAS

Product Overview • Highest performance 8-port adapter offered
• Flexible SATA+SAS array architecture optimizes cost
• 8 external high-speed SAS ports for maximum mass-storage connectivity
• SATA+SAS interconnect proven through the LSI robust serial technology
• Environmentally friendly due to low-power consumption
• LSI SATA+SAS HBAs are compatible with 6Gb/s and 3Gb/s, SATA and SAS, hard disk drives, solid state drives, and tape drives
• Mac OS support for additional integration flexibility
Features • 6Gb/s data transfer rate per port
• Two x4 external SFF8088 Mini-SAS connectors
• x8 5Gb/s PCI Express 2.0 host interface
• MD2 low-profile form-factor design
• Maximum power usage of 9W
• Connects to SAS and SATA HDDs, SSDs, and tape drives
• Support for up to 1024 end devices
• Fusion-MPT architecture can achieve more than 550,000 I/Os per second
• Supports all major operating systems
• RoHS compliant
• Three-year standard warranty
