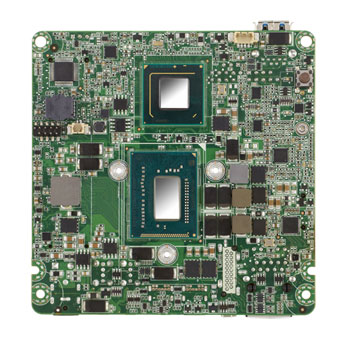

Intel NUC i5 Barebone OEM Board - BLKDC53427RKE
Delivery
DPD £5.48 Delivered by DPD Wed 27 May. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

BLKDC53427RKE - Intel NUC, Intel QS77 Express, Intel Core i5-3427U 2.8GHz, Dual Channel DDR3 SO-DIMM, HDMI/ miniDP, 4"x4", OEM

Intel NUC i5 Barebone OEM BoardIntel NUC i5 Barebone OEM BoardIntel NUC i5 Barebone OEM BoardIntel NUC i5 Barebone OEM Board
Intel NUC i5 Barebone OEM Board
Product Overview
Imagine a computing device powerful enough to produce stunning visuals with responsive performance. Yet small enough to drive digital signage, kiosks, or other applications demanding performance in a tight space.

With a visibly smart Intel Core i5 processor in a highly customizable package, the NUC is a breakthrough in compact computing. Get reliable connectivity through Gigabit LAN. Effortlessly move between applications with smart multitasking delivered by Intel Hyper-Threading Technology.
Features
• VESA mounting hole support
• Antennae for WIFI and Bluetooth pre-assembled for ease of deployment
• Front Panel USB 3.0
• Intel Core i5-3427U Processor
• Intel QS77 Express Chipset
Technical Specification
General
Manufacturer:
Intel
Form Factor:
4" x 4"
CPU Socket:
Integrated Intel Core i5-3427U (2.8GHz)
QPI Speed:
N/A
Chipset:
Intel QS77 Express
Memory Type:
DDR3 SO-DIMM
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1333
  • DDR3 - 1600
Memory Capacity:
16GB
Graphics Connectors:
  • HDMI
  • Mini DisplayPort
Graphics Interface:
None
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
N/A
RAID:
None
Expansion Slots:
  • 2 x Mini PCIe
Internal I/O:
  • 2 x Memory Slots (DDR3)
  • 1 x USB 2.0 Header
Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI
  • 2 x Mini DisplayPort
  • 2 x USB 2.0
  • 1 x USB 3.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan OEM
Telephone:
0871 472 4747
Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send
Find Similar Products

Find similar products with the same specifications as Intel NUC, Intel QS77 Express, Intel Core i5-3427U 2.8GHz, Dual Channel DDR3 SO-DIMM, HDMI/ miniDP, 4"x4", OEM . Please choose from the list below.

4" x 4"

Please tick the check box above

Integrated Intel Core i5-3427U (2.8GHz)

Please tick the check box above

N/A

Please tick the check box above

Intel QS77 Express

Please tick the check box above

DDR3 SO-DIMM

Please tick the check box above

Dual

Please tick the check box above

Non-ECC

Please tick the check box above

Unbuffered

Please tick the check box above

DDR3 - 1333
DDR3 - 1600

Please tick the check box above

16GB

Please tick the check box above

HDMI
Mini DisplayPort

Please tick the check box above

None

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

No

Please tick the check box above

N/A

Please tick the check box above

None

Please tick the check box above

2 x Mini PCIe

Please tick the check box above

2 x Memory Slots (DDR3)
1 x USB 2.0 Header

Please tick the check box above

1 x 10/100/1000 (LAN)
1 x DC-In Jack
1 x HDMI
2 x Mini DisplayPort
2 x USB 2.0
1 x USB 3.0

Please tick the check box above
Customer Reviews
Rated 4 out of 5 by 1 reviewer.
Rated 4 out of 5 by small form factor more powerfull than you think I have owned this little gem of a pc for some months now coupled with a fanless case conversation, mini ssd, the killer dual band WiFi Bluetooth adaptor four gig of low power ram also from scan.co.uk. To say I'm happy with it is an understatement initially I wanted a rugged mobile desktop, which it excels in running the likes of Google earth etc with quick smooth graphics, what I did not expect however was its ability to play games. For eg eve online, and to a small extent star citizen, now in the case of the later this is due to direct x 11 integrated on this board, though it will play the former reasonably well the later starts to show lagging I feel this is down to my fanless case not dissipating heat fast enough. What ever you preference I do recommend fanless for desktop application. For playing less taxing games like eve its ok, but if this is what you think you want to use it for consider a robust thermal solution. 17 August 2014
