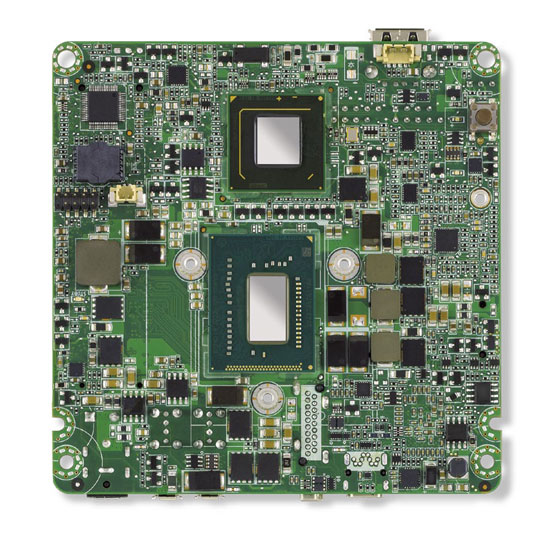

BLKD33217CK - Intel Campers Lake NUC Board, Intel QS77, Intel Core i3-3217U, Dual Channel DDR3, HDMI/ Thunderbolt, SFF 4"x4", OEM

Intel BLKD33217CK Next Unit of Computing Motherboard - OEM
Intel BLKD33217CK Next Unit of Computing Motherboard - OEM
Product Overview
SUPERIOR PROCESSING AND GRAPHICS
Visibly smart graphics using the 3rd generation Intel® Core™ i3-3217U processor deliver amazing performance and visually stunning graphics.

STUNNINGLY SMALL FORM FACTOR
The 4"x4"x2" form factor unlocks a world of potential design applications, from digital signage and kiosks to portable innovations.

ADVANCED TECHNOLOGY
The D33217CK features Intel's Thunderbolt™ technology transforming device interconnectivity, dramatically increasing transfer performance with bi-directional 10Gbps speed, and offers daisy chaining to multiple devices, two SO-DIMM sockets for expandability upto 16 GB of memory, two PCIe* mini-card connectors for flexible support of wireless and SSD configurations, BIOS vault technology, fast boot and Intel® Visual BIOS.
Features
• Intel® Core i3 - 3217U
• Intel® QS77 Express Chipset
• Dual channel DDR3, 2x SODIMM slots, 16GB maximum
• Thunderbolt
• Compatible with Microsoft® Windows® 7 & 8 / Linux (Fedora, Ubuntu, OpenSUSE)
Technical Specification
General
Manufacturer:
Intel
Form Factor:
4" x 4"
CPU Socket:
Integrated Intel Core i3-3217U (1.8GHz)
QPI Speed:
N/A
Chipset:
Intel QS77 Express
Memory Type:
DDR3 SO-DIMM
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
Memory Capacity:
16GB
Graphics Connectors:
  • HDMI
  • Thunderbolt
Graphics Interface:
None
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
N/A
RAID:
None
Expansion Slots:
  • 2 x Mini PCIe
Internal I/O:
  • 2 x Memory Slots (DDR3)
  • 1 x mSATA
  • 1 x USB 2.0
  • 1 x USB 2.0 Header
Back Panel:
  • 1 x DC-In Jack
  • 1 x HDMI
  • 1 x Thunderbolt port
  • 2 x USB 2.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
