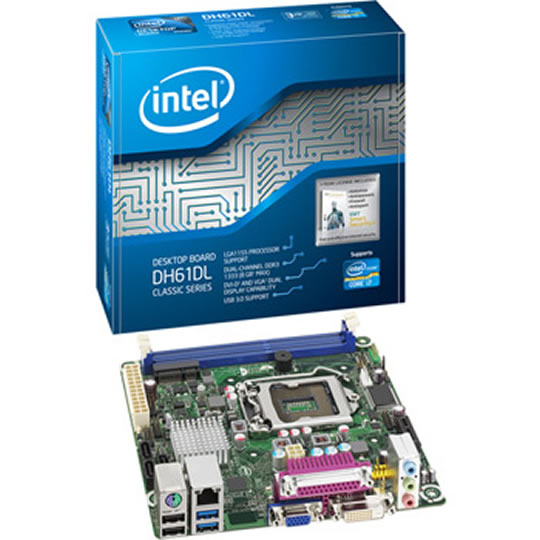

Intel BOXDH61DLB3 Intel H61Sandy Bridge Motherboard
Scan code: LN38118
Manufacturer code: BOXDH61DLB3
End Of Life
Intel BOXDH61DLB3 Intel H61Sandy Bridge Motherboard
Intel BOXDH61DLB3, Intel H61, S 1155, DDR3, SATA II - 3Gb/s, Graphics On Board, Mini ITX
Scan code:
LN38118
Manufacturer code:
BOXDH61DLB3
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
Enjoy great multitasking performance in a small form factor board with the Intel® Desktop Board DH61DL. It is designed to run with the 2nd generation Intel® Core™ processor family in the LGA1155 socket. This mini-ITX board supports the latest features including USB 3.0, and dual display capabilities making it an excellent choice for an entry-level mini-ITX based system.
This board offers premium features such as Intel® High Definition Audio (Intel® HD Audio) with 5.1 surround sound and multi-streaming capability and an integrated Intel® PRO 10/100/1000 Network Connection in a low-power design.
The Intel Desktop Board DH61DL is Microsoft Windows* 7 Ultimate and Windows Vista* Ultimate WHQL certified.
Features Supports 2nd generation Intel Core processors, Including Intel Core i7 and Intel Core i5 processors and other Intel processors in the LAG1155 package for exceptional performance
Intel H61 Express Chipset PCH
Dual-channel DDR3 with two connectors for 1333 / 1066 / 800 MHz memory support (8GB max)
One PCI Express 2.0 x1 connector
Three SATA ports (3.0 Gb/s)
Two SuperSpeed USB 3.0 Ports
Eight USB 2.0 Ports
Integrated Intel PRO 10/100/1000 Network Connection
Six-channel Intel High Definition Audio
DVI-D and VGA ports
PS/2 port
Mini-ITX form factor
This board offers premium features such as Intel® High Definition Audio (Intel® HD Audio) with 5.1 surround sound and multi-streaming capability and an integrated Intel® PRO 10/100/1000 Network Connection in a low-power design.
The Intel Desktop Board DH61DL is Microsoft Windows* 7 Ultimate and Windows Vista* Ultimate WHQL certified.
Features Supports 2nd generation Intel Core processors, Including Intel Core i7 and Intel Core i5 processors and other Intel processors in the LAG1155 package for exceptional performance
Intel H61 Express Chipset PCH
Dual-channel DDR3 with two connectors for 1333 / 1066 / 800 MHz memory support (8GB max)
One PCI Express 2.0 x1 connector
Three SATA ports (3.0 Gb/s)
Two SuperSpeed USB 3.0 Ports
Eight USB 2.0 Ports
Integrated Intel PRO 10/100/1000 Network Connection
Six-channel Intel High Definition Audio
DVI-D and VGA ports
PS/2 port
Mini-ITX form factor
