SATA III 4 Port Internal Raid Backplane 4x3.5" SATA hard into 3x5.25" Device Bays
Scan code: LN39300
Manufacturer code: MB974SP-B
End Of Life
SATA III 4 Port Internal Raid Backplane 4x3.5" SATA hard into 3x5.25" Device Bays
Icy Dock MB974SP-B Tray-less 4 in 3 SATA 3 Internal Raid Backplane
Scan code:
LN39300
Manufacturer code:
MB974SP-B
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
ICY DOCK MB974SP-B Tray-less 4 in 3 SATA II Hot-Swap Backplane Raid Cage Module with eSATA & USB 2.0 Port.

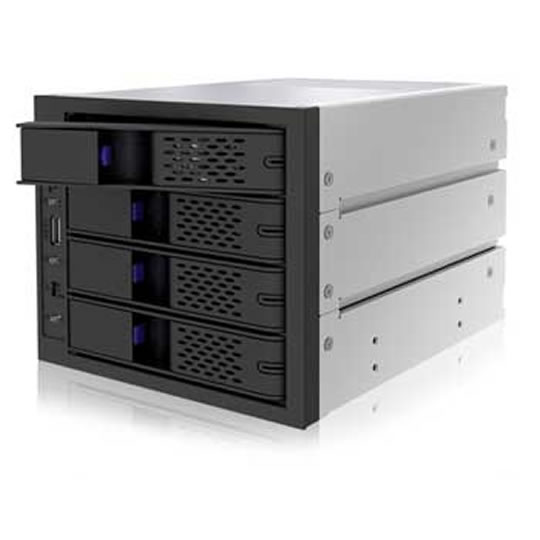

Introducing the new face of Icy Dock screw-less technology, the MB974SP-B 4-in-3 SATA Backplane. This product allows the user to install 4 x 3.5” SATA hard drives into a computer case’s 3 available 5.25” device bays. Using our world renowned screw-less technology, no screws or tools are required to insert or eject the drives making hot swapping a completely hassle free experience.
• Fits 4 x 3.5” SATA HDD into 3 x 5.25” Device Bays.
• Screw-less, tool-less design for genuine plug &play and hot swap use.
• Stylish aluminium body construction for durability and heat dissipation.

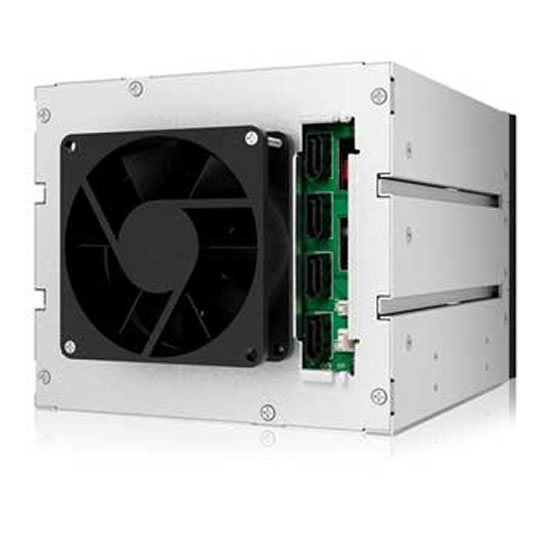

• 80mm cooling fan for maximum air flow.
• On-demand power system - Fan power only when a drive is powered on.
• Fan is replaceable with aftermarket fans that use 2-pin or 3-pin connectors.
• 3 speed fan control including Smart Cooling Technology providing temperature.
• Front and rear ventilation slots.

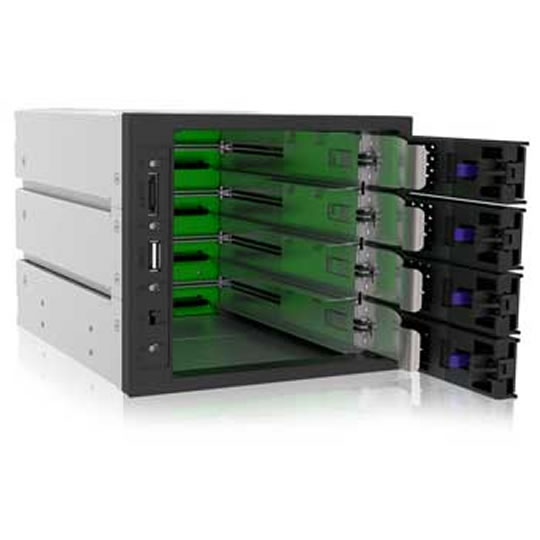

• Front side USB and eSATA ports for convenient external storage connections.
• Individual power switches and LEDs for each drive.
• Child-proof power buttons to avoid accidental power shut down.
• Multi-locking door latches to prevent accidental drive ejection.
• Internal SATA cable and USB header cable built into rear of device. Features Colour: Black.
Drive Fit: 3.5” SATA 1.5 / 3 Gbit/s hard drive x 4.
Host Connection:
• 7 pin SATA port x 4 for HDD.
• 7 pin SATA connector x 1 for front Panel eSATA port.
• 5 pin USB 2.0 connector x 1 for front Panel USB port.
Device Space: 5.25" half height device bay x 3.
Transfer Rate: Up to 3 Gbit/s. (depending on hard drive speed).
Insert& Extract connection Via: Direct SATA hard drive connection.
Front Panel Contents:
• eSATA Port x 1 & USB 2.0 Port x1.
• Adjustable fan speed control (High/Low/Auto).
Structure: Aluminium body w/ partial plastic.
Drive Cooling: Removable rear outtake fan w/ aluminium heat dispersion.
Cooling Fan Type: 80mm ball bearing fan with 2 or 3 pin connector.
Power Indicator: Blue LED.
HDD Access Indicator: Flashing blue LED.
Dimension (L x W x H): 210 x 148 x 126 mm
Weight: 1210g.
