Icy Box IB-554SSK for 4x3.5" SATA/SAS HDD backplane into 3x5.25" bays
End of Life

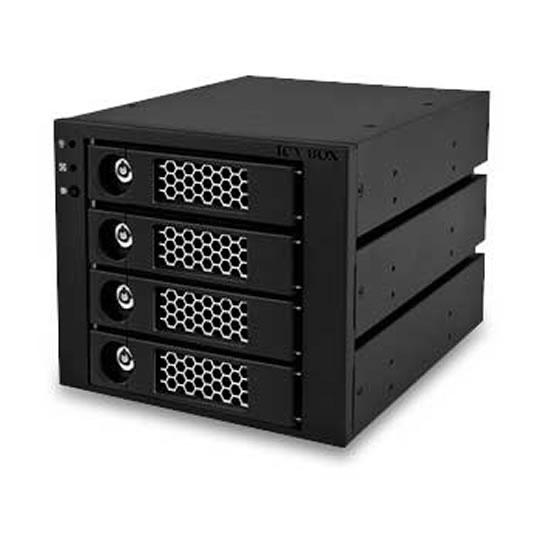

Icy Box IB-554SSK for 4x3.5" SATA/SAS HDD backplane into 3x5.25" bays

Images

Thumbnail 1 : Icy Box IB-554SSK for 4x3.5" SATA/SAS HDD backplane into 3x5.25" baysThumbnail 2 : Icy Box IB-554SSK for 4x3.5" SATA/SAS HDD backplane into 3x5.25" bays

IB-554SSK - Icy Box IB-554SK for 4x3.5" SATA/SAS HDD backplane into 3x5.25" bays

Scan Code: LN27713

Manufacturer Code: IB-554SSK

Customer Reviews and Q&A

Social Media

Product Overview

These three HDD backplanes are well-proven in extremely hard server duty. Even with highest transfer rates they run very smoothly. That’s why we recommend them for the demanding duty in RAID systems.

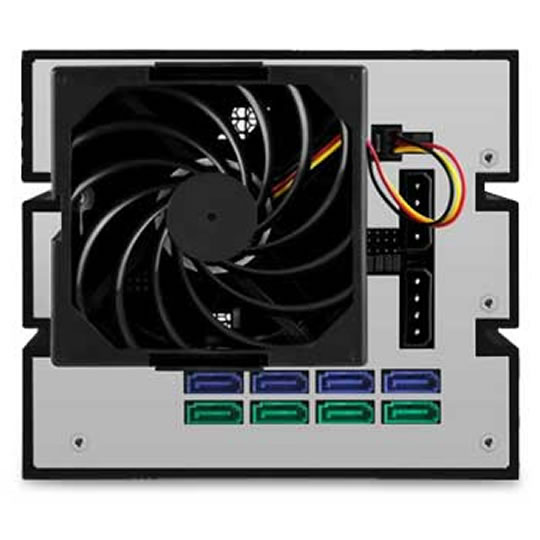

Accordingly elaborate is the temperature control. The aluminium parts dissipate the heat. The 80-mm fan operates reliably and silently. If necessary it is easily removed or attached, no tools needed. For the case of a too high temperature there are optical and acoustic signals.

All moving parts are layed out for strongest strain. The trays and their locking mechanism are extremely fitting. They slide without resistance. The aluminium parts are electropolished.

Package Contents IB-554SSK

1x IB-554SSK backplane, 8x case screw,
18x HDD screw, 2x key, 2 sets of access and
HDD fail signal cable, 4x SATA cable, 1x manual

Features

- 4x 3,5" SATA or SAS HDD in 3x 5,25" bay
- 2x host connector (dual channel) for each SAS HDD
- Hard disk capacity not limited
- SATA host interface 3.0Gbit/s
- HDD tray with key lock
- LED for power and HDD access
- Visual LED and audio alarm for fan failure & over-heat
- Access-LED signal from HDD or host selectable
- 80x80mm cooling fan toolless removable
- Audio alarm mute switch button on the front
- Alarm temperature adjustable (45°C, 55°C, 75°C)
- Plug & Play and hot swap
- Support all OS systems

Technical Specification

Manufacturer:Icy BoxSpace Requirement:3 x 5.25" Internal
External Interface:8 x SATA II - 3Gb/s
Fan(s):No
HDD:4 x SAS/SATA
Colour:Black
Power Connectors:2 x Molex

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Return to base

DOA Period: 28 days

RTB Period: 12 months
