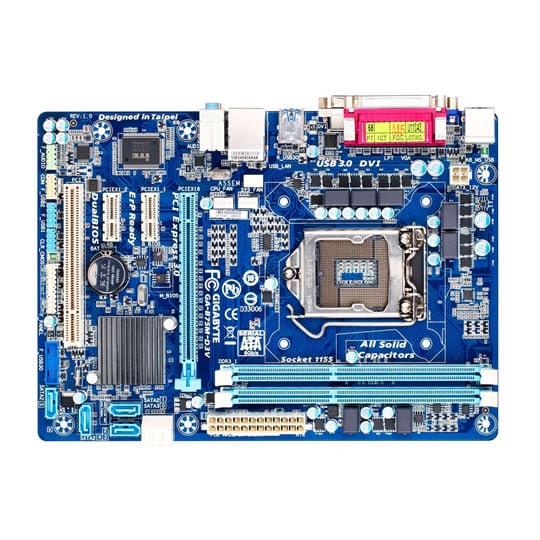

Gigabyte GA-B75M-D3V Intel B75 Socket 1155 Motherboard
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

Gigabyte GA-B75M-D3V, Intel B75, S 1155, DDR3, SATA III - 6Gb/s, SATA, PCIe 3.0, D-Sub DVI-D, Micro ATX

Gigabyte GA-B75M-D3V Intel B75 Socket 1155 MotherboardGigabyte GA-B75M-D3V Intel B75 Socket 1155 MotherboardGigabyte GA-B75M-D3V Intel B75 Socket 1155 MotherboardGigabyte GA-B75M-D3V Intel B75 Socket 1155 Motherboard
Gigabyte GA-B75M-D3V Intel B75 Socket 1155 Motherboard
Product Overview
GIGABYTE Ultra Durable™ 4 Classic

Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Electrostatic Protection
GIGABYTE Ultra Durable 4 Classic motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

Power Failure Protection
Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DaulBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

High Temperature Protection
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.
Features
• SuperSpeed USB 3.0
• SATA 6 Gbps
• 3x USB Power Boost (for USB 3.0 ports only)
• On/Off Charge Technology
• DVI Support
Technical Specification
General
Manufacturer:
Gigabyte
Form Factor:
Micro ATX
CPU Socket:
1155
QPI Speed:
N/A
Chipset:
Intel B75
Memory Type:
DDR3
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
Memory Capacity:
16GB
Graphics Connectors:
  • D-Sub (VGA)
  • DVI-D
Graphics Interface:
PCIe 3.0 (x16)
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
SATA III 6Gb/s
RAID:
None
Expansion Slots:
  • 1 x PCI (32 bit)
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
Internal I/O:
  • 1 x 24pin (V)
  • 1 x 4pin (V)
  • 1 x FP Audio Header
  • 5 x SATA II - 3Gb/s
  • 1 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header

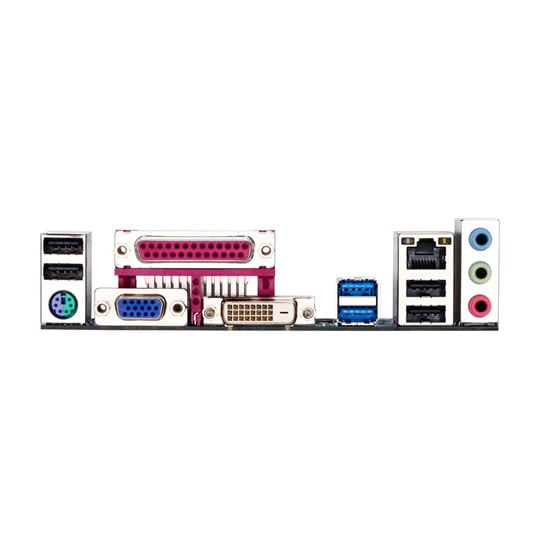

Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic In
  • 1 x Parallel (LPT)
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 2.0
  • 2 x USB 3.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
