Fractal Design Define R3, Black Pearl, Mid Tower Case w/o PSU - FD-DEFINER3-BL
End of Life

Fractal Design Define R3, Black Pearl, Mid Tower Case w/o PSU

Images

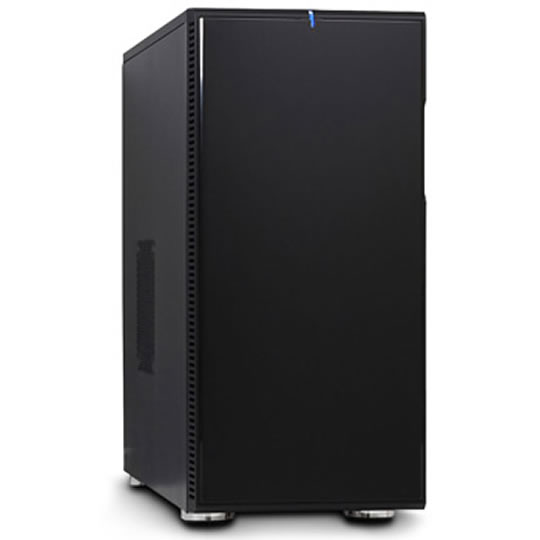

Thumbnail 1 : Fractal Design Define R3, Black Pearl, Mid Tower Case w/o PSU

FD-DEFINER3-BL - Fractal Design Define R3, Black Pearl, Mid Tower Case w/o PSU

Scan Code: LN35333

Manufacturer Code: FD-DEFINER3-BL

Customer Reviews and Q&A

Social Media

Product Overview

The Define R3 reaches new heights in combining stylish, contemporary design with maximum functionality and noise absorbing features. The minimalistic, yet stunning front panel design, fitted with noise absorbing material on the inside, creates an aura of exclusivity. The patent pending feature ModuVent™ allows you to choose whether to have side and top air vents open or not. This makes the case appealing for users seeking optimal silence, as well as the performance hungry ones.

Features

• Stunning front panel design.
• Patent pending ModuVent™ design - removable vents!
• Pre-fitted with dense, noise absorbing material.
• Motherboard tray cut-out, allows easy access to rear of motherboard.
• Eight HDD-trays, with silicone mounting.
• PCI fan controller for 3 fans included.
• Easily removable front fan filters with clip-on holders for 120mm fans.

Dimensions 207.40 x 440 x 521.2mm (WxHxD)
Weight 12.5 Kg
Motherboard Compatibility Mini ITX, Micro ATX and ATX
Power Supply Compatibility Standard ATX, can accommodate long PSUs
PCI/AGP Card Compatibility Full size (up to 290 mm long)
3.5" Drive Bays 8, all SSD compatible
5.25" Drive Bays 2, one bay converts to 3.5" for floppy or card reader
Roof Cooling Fans Space for two 120mm, none supplied
Rear/Side Cooling Fans Rear - space for one 120mm fan, supplied; Side - space for 140 or 120mm fan not supplied
Front/Floor Cooling Fans Front - space for two 120mm fans (both with filters), one supplied; Floor - space for one 120mm fan (with filter), not supplied
Expansion Card Slots 7, with sleek white painted brackets
Front I/O Ports 2x USB 2.0, 1x eSATA and Audio I/O
Accessories PCI fan controller, controllers up to 3 fans
Warranty 24 months

Technical Specification

Manufacturer:Fractal DesignFans Included:2 x 120mm
Case Edition:Window:No
Case Form Factor:PSU :
Motherboard Form Factor:ATX
Micro ATX
Mini ITX
Power Supply Form Factor:
Material:Max CPU Cooler Height:
Front/ Side/ Top Panel:1 x eSATA
1 x Headphone
1 x Mic In
2 x USB 2.0
Max VGA Card Length:
Drive Bays:8 x 3.5"
2 x 5.25"
Dimensions:207.4 x 440 x 521.2 (WxHxD mm)
Expansion Slots:Colour:Black
Fan Bays:1 x 120/140 mm
6 x 120mm
Weight:12.5 kg (Approx)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Direct

DOA Period: 28 days
