Fractal Design Define Mini microATX Case No PSU - FD-CA-DEF-MINI-BL

£56.73 Ex VAT

£68.08 Inc VAT

Scan Finance Example: based on a £500 (inc VAT) order
  • Buy Now Pay Later (9 Months / 39) After a 10% deposit pay nothing for 9 months.
  • Classic Credit 24 Months 15.9% After a 10% deposit pay £21.78 for 24 months.
  • Classic Credit 36 Months 15.9% After a 10% deposit pay £15.57 for 36 months.
  • Classic Credit 48 Months 15.9% After a 10% deposit pay £12.49 for 48 months.
PayBreak

Spend between £100 and £1000 and get the goods before you pay.

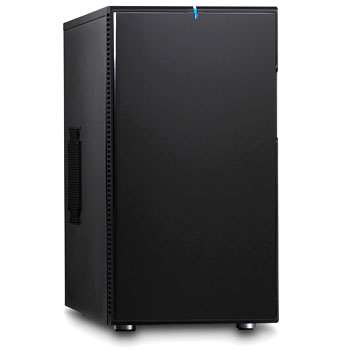

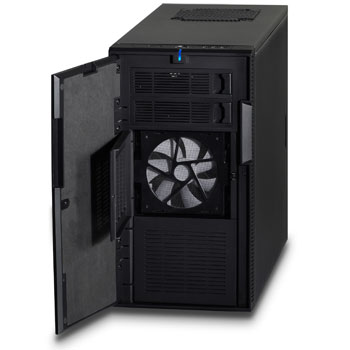

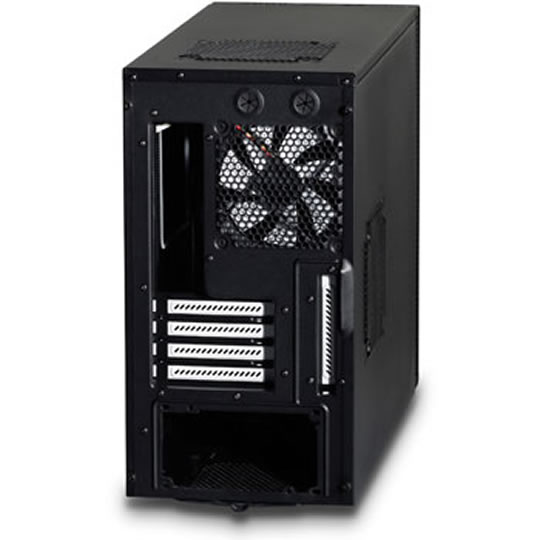

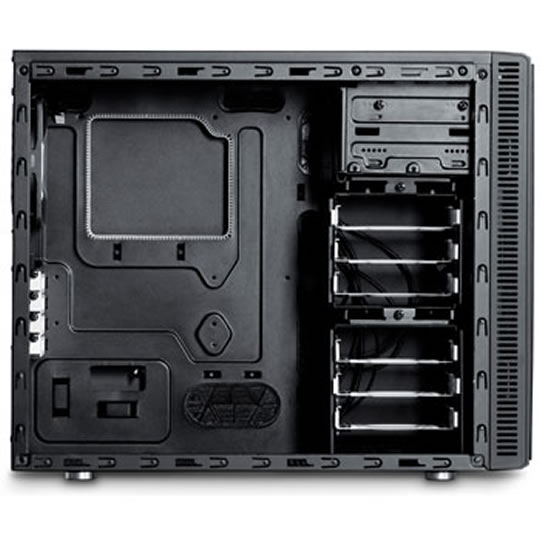

Fractal Design Define Mini microATX Case No PSU

Images

Thumbnail 1 : Fractal Design Define Mini microATX Case No PSUThumbnail 2 : Fractal Design Define Mini microATX Case No PSUThumbnail 3 : Fractal Design Define Mini microATX Case No PSUThumbnail 4 : Fractal Design Define Mini microATX Case No PSU

FD-CA-DEF-MINI-BL - Fractal Design Define Mini micro-ATX Mini Tower Performance Case with USB 3.0 w/o PSU

Scan Code: LN40698

Manufacturer Code: FD-CA-DEF-MINI-BL

Customer Reviews and Q&A

Social Media

Product Overview

The Define series is reaching new heights in combining stylish, contemporary design with maximum functionality and noise absorbing features. The minimalistic, yet stunning front panel design, fitted with noise absorbing material on the inside, creates an aura of exclusivity.

• Stunning front panel design
• Patent pending ModuVent™ design, allowing the user to either have optimal silence or optimal airflow
• Pre-fitted with dense, noise absorbing material
• 6 white painted HDD-trays, with silicone mounting
• A total of 6 fan slots (2x120mm in front, 1x 120/140mm in top, 1x120mm in back, 1x 120/140mm in side panel, 1x 120mm in bottom)
• Two120mm Fractal Design 120mm fans included
• Fan controller for 3 fans included
• Upper HDD cage is removable and rotatable
• USB3 support in the front panel
• Excellent cable routing and cable routing covers
• Supports graphic cards with lengths up to circa 400mm when upper HDD bay is removed
• Extra, vertically mounted expansion slot, suitable for fan controllers or non-input expansion cards

Features

As the name implies, Define Mini is the smaller sibling of the acclaimed and award winning Define R2/R3 case. Being a Micro ATX version of Define R2/R3, it offers a number of interesting functions with a very stylish appearance. It's a case focused on low noise level, without neglecting other important features such as cooling, expandability and ease of use. The Define Mini excels in including a lot of features in a small size!

The patent pending feature ModuVent™, in which you can choose whether to have fan slots in side and top panels open or not, makes the case appealing for users seeking optimal silence, as well as the performance hungry ones.

The sleek black interior is matched with pre-fitted, dense noise absorbing material on the side panels, efficiently absorbing noise and vibrations. You can fit an astonishing total of six(!) hard drives into this case, using the user friendly HDD-trays. All painted in a nice white color and using black silicone mounts. PSU is mounted in the bottom of the case, with a convenient pull-out filter beneath it.

Cooling system
• Fan controller for 3 fans included
• 1 rear Fractal Design 120mm @ 1200rpm included
• 1 front Fractal Design 120mm @ 1200rpm included
• 1 front 120mm fan (optional)
• 1 top 120/140mm fan (optional)
• 1 bottom 120mm fan (optional)
• 1 side panel 120mm/140mm fan (optional)

Technical Specification

Manufacturer:Fractal DesignFans Included:2 x 120mm
Case Edition:Window:No
Case Form Factor:PSU :
Motherboard Form Factor:Micro ATX
Mini ITX
Power Supply Form Factor:
Material:Max CPU Cooler Height:
Front/ Side/ Top Panel:1 x Line Out
1 x Mic In
2 x USB 2.0
1 x USB 3.0
Max VGA Card Length:
Drive Bays:6 x 3.5" Internal
1 x 5.25" / 3.5" External
1 x 5.25" External
Dimensions:210 x 395 x 490 (WxHxD mm)
Expansion Slots:Colour:Black
Fan Bays:1 x 120/140 mm
5 x 120mm
Weight:9.5 kg (Approx)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Direct

DOA Period: 28 days

RTB Period: 12 months

Manufacturer Contact Details

Manufacturer: Quiet PC

Telephone: 01653668000

Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send

Find Similar Products

Find similar products with the same specifications as Fractal Design Define Mini micro-ATX Mini Tower Performance Case with USB 3.0 w/o PSU . Please choose from the list below.

Please tick the check box above

Please tick the check box above

Micro ATX
Mini ITX

Please tick the check box above

Please tick the check box above

1 x Line Out
1 x Mic In
2 x USB 2.0
1 x USB 3.0

Please tick the check box above

6 x 3.5" Internal
1 x 5.25" / 3.5" External
1 x 5.25" External

Please tick the check box above

Please tick the check box above

1 x 120/140 mm
5 x 120mm

Please tick the check box above

2 x 120mm

Please tick the check box above

No

Please tick the check box above

Please tick the check box above

Please tick the check box above

Please tick the check box above

Please tick the check box above

210 x 395 x 490 (WxHxD mm)

Please tick the check box above

Black

Please tick the check box above

9.5 kg (Approx)

Please tick the check box above

Customer Reviews

Rated 4.6 out of 5 by 8 reviewers.
Rated 5 out of 5 by Rock solid and spacious Mini it isn't, but there's plenty of space around the board to route cables. Heavyweight construction deadens sound well. 08 April 2014
Rated 3 out of 5 by It's not micro, or mini It's my own fault really for not reading the dimensions of the case, but with a name like "Fractal Design Define Mini micro-ATX Mini Tower" you'd be forgiven for thinking that it was small. It isn't. It's huge. And heavy. Looks great, and I'm sure that it would have been a good case if I hadn't wanted something a little less massive, but I did, so I had to send it back. Scan were very good about it! 07 February 2014
Rated 4 out of 5 by Nice little case This was my Dad's built so he didn't want a whopping ATX tower, it fits nicely under his desk. The built was easy as there was more than enough room to manoeuvre, plenty of cable tie downs too. The front door is an excellent design, not flimsy at all, it does however come off with little force, which can either be a good of bad thing. There are brilliant cooling facilities, with a lot of fan filters, despite the opportunity for a lot of fans, the silencing panels mean the case is barely audible even at full load. I would recommend this case to anyone, especially over the Arc Midi, as the front filter tends to dust up very badly, also the Midi's front IO isn't well fixed at all, all USB ports come out when removing USB drives. The Mini however is an excellent purchase. 29 November 2013
Rated 5 out of 5 by Essentially silent Sleak USB 3.0 on the front Great build quality Spacious inside Don't have a bad word to say about it, other than it's quite big! 18 May 2013
Rated 5 out of 5 by - Very solid build quality, nothing cheap and tacky here. - Massive array of mounting options for drives, I loved the ability to mount SSD's to the motherboard tray - Ability to remove the upper drive tray to improve airflow - Great cable management (well grommeted routing options) - Included fans were nice and quiet. Fan controller included. - Extremely quiet with great aesthetics - A lot of effort has been put into sound dampening. I really appreciate things like anti-vibration screws and spacers provided by default. Fractal also ship plenty of screws to accommodate the potential mounting options - Fan filters provided by as standard. Easy to remove and clean. - Fan controller broke unexpectedly after a few weeks. After contacting Fractal they happily sent a replacement free of charge. - Not the greatest airflow with the default fan configuration, although I have remedied this by adding more fans and removing some of the sound-dampening material - I don't particularly like the mounting tray for the front intake fans, as they only accommodate certain form factors, and have a simple clip system that picks up fan vibration. Not a major problem, but I felt that they could have implemented this a lot better than they did. 23 April 2013
Rated 5 out of 5 by Quiet, easy to build in, doesn't look too fussy, good cooling performance. Build quality on the hard drive caddies on a few of these cases I've used but that's nitpicking really. 19 March 2013
Rated 5 out of 5 by Nice design/ looks good, build quality, cooling, cable management and it's very quiet 01 March 2013
Rated 5 out of 5 by Lots of space inside and removable hard drive section. very good case the best I have had so far. Other than I am thinking of buying the side panel with the window for this, None. 14 February 2013
1-8 of 8
