Titan X/GTX 980Ti Acetal Nickel Water Cooling Block EKWB
Scan code: LN63355
Manufacturer code: 3831109830567
End Of Life
Titan X/GTX 980Ti Acetal Nickel Water Cooling Block EKWB
EK-FC Titan X High Performance Nickel Acetal Full Cover Water Block for Reference Design GTX TITAN X/980Ti Graphics Card
Scan code:
LN63355
Manufacturer code:
3831109830567
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
- 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview
Compatible with NVIDIA Reference Design GTX Titan X and GTX 980Ti Graphics Cards!

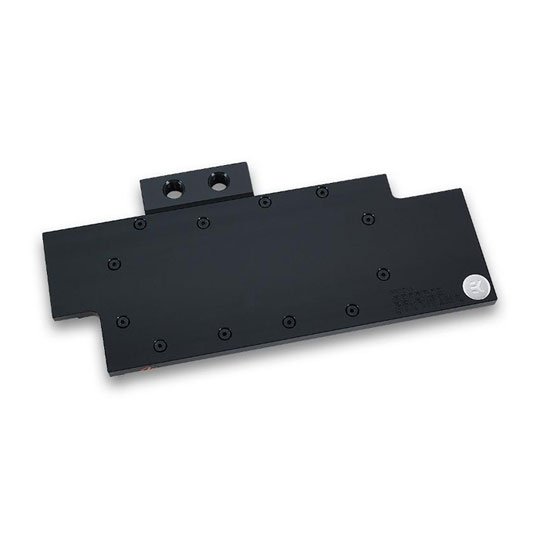

EK-FC Titan X is a high performance full-cover water block for nVidia reference (NVA-PG600) design GeForce GTX Titan X series graphics cards.
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC Titan X water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic perfromance allowing this product to be used in liquid cooling systems using weaker water pumps.

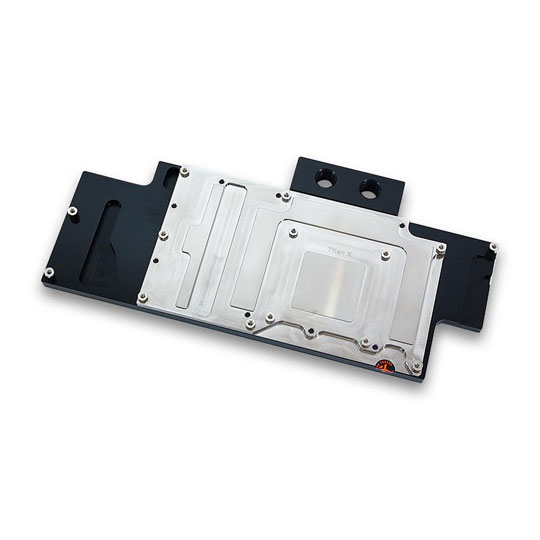

Base is made of nickel-plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3 DIN7985 screws.
EKWB recommends the purchase of aesthetic retention backplate (EK-FC Titan X Backplate - Black, Nickel, Blue, Red, Gold) which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section.
G1/4" threaded fittings can be used on both sides of the FC terminal. Up to four EK-FC Titan X water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.
EK-FC Titan X series product is also the choice of EVGA for their factory liquid cooled NVIDIA GeForce GTX Titan X HydroCopper series graphics cards. Features • Liquid cool your TITAN X/980Ti Graphics Card
• Higher cooling capacity provides more headroom for Overclocking
• Nickel Acetal Material
• G1/4 Threads
Includes:
• EK-FC Titan X series water block
• mounting mechanism with screw-in brass standoffs
• thermal pads
• thermal grease EK-TIM Ectotherm (1g)
Made in Slovenia - Europe!
EK-FC Titan X is a high performance full-cover water block for nVidia reference (NVA-PG600) design GeForce GTX Titan X series graphics cards.
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC Titan X water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic perfromance allowing this product to be used in liquid cooling systems using weaker water pumps.
Base is made of nickel-plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3 DIN7985 screws.
EKWB recommends the purchase of aesthetic retention backplate (EK-FC Titan X Backplate - Black, Nickel, Blue, Red, Gold) which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section.
G1/4" threaded fittings can be used on both sides of the FC terminal. Up to four EK-FC Titan X water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.
EK-FC Titan X series product is also the choice of EVGA for their factory liquid cooled NVIDIA GeForce GTX Titan X HydroCopper series graphics cards. Features • Liquid cool your TITAN X/980Ti Graphics Card
• Higher cooling capacity provides more headroom for Overclocking
• Nickel Acetal Material
• G1/4 Threads
Includes:
• EK-FC Titan X series water block
• mounting mechanism with screw-in brass standoffs
• thermal pads
• thermal grease EK-TIM Ectotherm (1g)
Made in Slovenia - Europe!
