Corsair Obsidian 750D PC Case - CC-9011035-WW

£112.49 Ex VAT

£134.99 Inc VAT

Scan Finance Example: based on a £500 (inc VAT) order
  • Buy Now Pay Later (9 Months / 39) After a 10% deposit pay nothing for 9 months.
  • Classic Credit 24 Months 15.9% After a 10% deposit pay £21.78 for 24 months.
  • Classic Credit 36 Months 15.9% After a 10% deposit pay £15.57 for 36 months.
  • Classic Credit 48 Months 15.9% After a 10% deposit pay £12.49 for 48 months.
PayBreak

Spend between £100 and £1000 and get the goods before you pay.

HOT SELLER

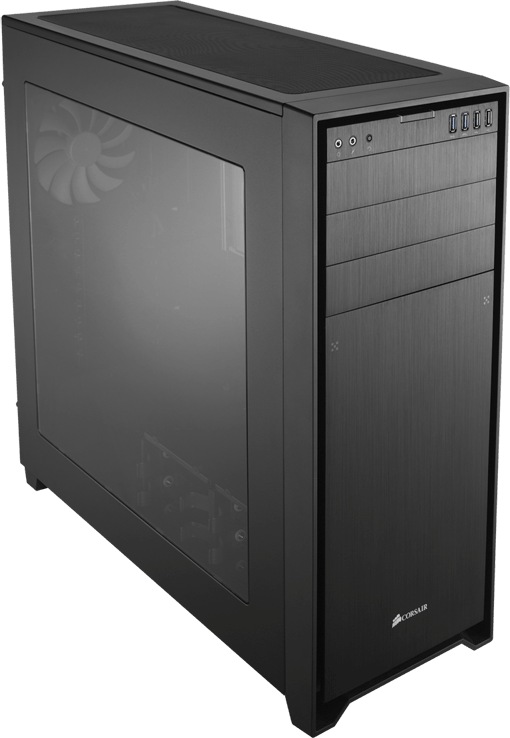

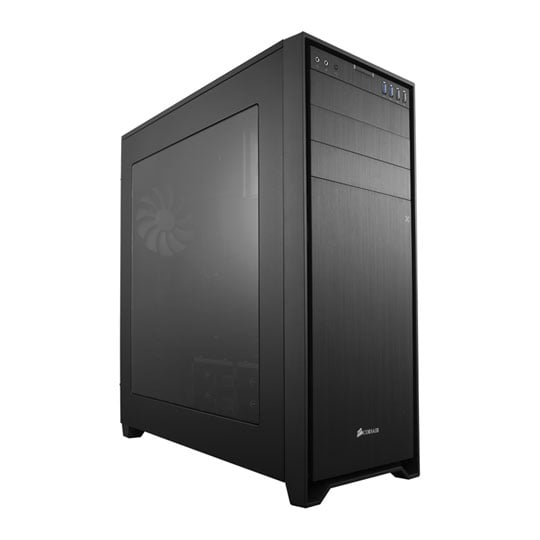

Corsair Obsidian 750D PC Case

CC-9011035-WW - Corsair Obsidian 750D Black Full Tower case Aluminium Steel with Side Window 3x140mm Fans USB 3.0 E-ATX/ATX w/o PSU

Scan Code: LN53701

Manufacturer Code: CC-9011035-WW

Customer Reviews and Q&A

Social Media

CC-9011035-WW - Corsair Obsidian 750D Black Full Tower case Aluminium Steel with Side Window 3x140mm Fans USB 3.0 E-ATX/ATX w/o PSU

Corsair Obsidian 750D PC CaseCorsair Obsidian 750D PC Case
Corsair Obsidian 750D PC Case

Product Overview

The Obsidian Series 750D full tower PC case combines generous expansion flexibility, room for advanced cooling options, and an interior that’s optimized for fast and easy builds and upgrades. It has a clean, elegant exterior that dispenses with arbitrary plastic add-ons in exchange for the beauty of brushed aluminum and solid steel.

This rigid, rugged exterior surrounds a frame that has ample room for high-performance components and the sophisticated cooling you’ll need if you’re going to push those components to their limits. And, it incorporates a host of clever system builder-focused features, because building a system should be straightforward, trouble-free, and even fun.

The room you need when you’re getting serious
Nine PCI-E expansion slots support double and triple GPUs. There’s room for up to ten drives, and four USB ports on the brushed aluminum front panel.

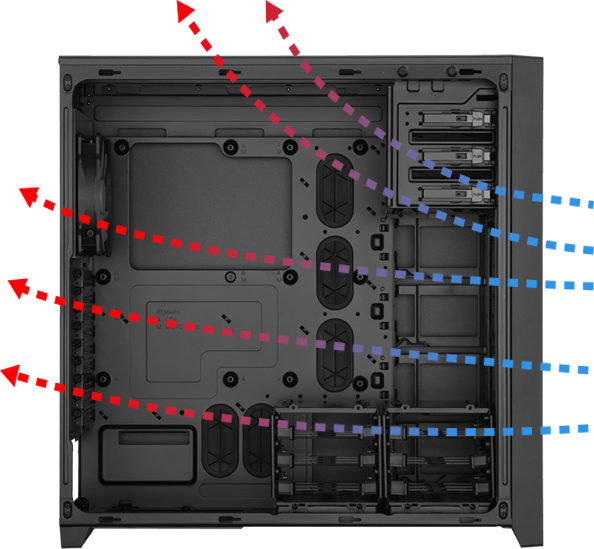

Your system. Your cooling.
The three included Corsair AF140L high-airflow 140mm intake and exhaust fans are custom engineered to deliver excellent airflow with less unnecessary turbulence and noise. You can mount up to eight fans, with room for dual radiators on the bottom, front, and top.

Take control of your storage
There are four separate mounting locations for the drive cages, and if you’re moving to 100% solid-state, you can remove the 3.5” cages entirely and use the four side-mounted 2.5” cages.

Designed for fast, straightforward builds
The side panels and expansion slots use thumb screws, and storage installation is tool-free. A center-post standoff holds the motherboard in place while you secure it, and the dust filters are easily accessible and removable. Our innovative cable routing system has multiple cutouts with rubber grommets for superior airflow and a cleaner look, and the CPU backplate cutout lets you install or upgrade your CPU cooling without removing the motherboard.

Features

• Generous expansion room for building high-performance systems
• Beautiful brushed aluminum fascia makes an elegant design statement

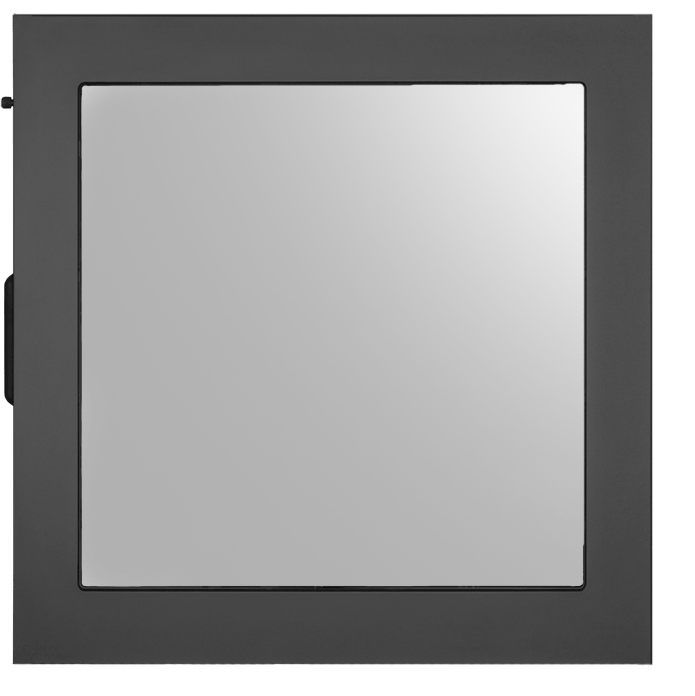

• Full side panel window to view your components
• Tool-free SSD, Hard Drive, and Optical Drive installation
• Includes three AF140L fans, with room for up to eight fans
• Modular drive cage system for highly customizable layouts
- Two modular drive cages house three 3.5” or 2.5” drives each
- Four tool-free dedicated SSD cages, sideways mounted
• Radiator and fan compatibility compatibility:
- Top: 3 x 120mm or 2 x 140mm
- Front: 2 x 140mm or 2 x 120mm (2 x 140mm included)
- Bottom: 2 x 120mm
- Rear: 1 x 140mm or 120mm (140mm included)
• Two USB 3.0 and two USB 2.0 front panel connectors, plus headphone and microphone
• Easily accessed front, top, and PSU dust filters
• Excellent cable routing with rubber grommets for clean builds
• Nine expansion slots for multiple PCI-E devices or large motherboards
• Maximum CPU Cooler Height 170mm
• Maximum GPU Length 450mm

Technical Specification

Manufacturer:CorsairFans Included:3 x 140mm
Case Edition:Obsidian 750D Window:Yes
Case Form Factor:Full Tower PSU :
Motherboard Form Factor:ATX
E-ATX
Micro ATX
Mini ITX
XL-ATX
Power Supply Form Factor:ATX
Material:Aluminium/ Steel Max CPU Cooler Height:170 mm
Front/ Side/ Top Panel:1 x Headphone
1 x Mic In
2 x USB 2.0
2 x USB 3.0
Max VGA Card Length:450 mm
Drive Bays:4 x 2.5" Internal
6 x 2.5"/ 3.5" Internal
3 x 5.25" External
Dimensions:546.1 x 236.22 x 558.8 (WxHxD mm)
Expansion Slots:9 Colour:Black
Fan Bays:5 x 120/140 mm
2 x 120mm
Weight:9.7 kg (Approx)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Return to base

DOA Period: 28 days

RTB Period: 12 months

Manufacturer Contact Details

Manufacturer: Scan

Telephone: 0871 472 4747

Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send

Find Similar Products

Find similar products with the same specifications as Corsair Obsidian 750D Black Full Tower case Aluminium Steel with Side Window 3x140mm Fans USB 3.0 E-ATX/ATX w/o PSU . Please choose from the list below.

Obsidian 750D

Please tick the check box above

Full Tower

Please tick the check box above

ATX
E-ATX
Micro ATX
Mini ITX
XL-ATX

Please tick the check box above

Aluminium/ Steel

Please tick the check box above

1 x Headphone
1 x Mic In
2 x USB 2.0
2 x USB 3.0

Please tick the check box above

4 x 2.5" Internal
6 x 2.5"/ 3.5" Internal
3 x 5.25" External

Please tick the check box above

9

Please tick the check box above

5 x 120/140 mm
2 x 120mm

Please tick the check box above

3 x 140mm

Please tick the check box above

Yes

Please tick the check box above

Please tick the check box above

ATX

Please tick the check box above

170 mm

Please tick the check box above

450 mm

Please tick the check box above

546.1 x 236.22 x 558.8 (WxHxD mm)

Please tick the check box above

Black

Please tick the check box above

9.7 kg (Approx)

Please tick the check box above

Customer Reviews

Rated 4.6 out of 5 by 23 reviewers.
Rated 4 out of 5 by Just short of perfection. There's not a lot too be said about the 750D that others haven't already said, but I'll try to talk about some of the good and bad of the case myself regardless. First, let's start with some of the negatives (There are very few, honestly.) Negatives: -Using a Corsair H100i radiator at the top of my case, despite them both being manufactured by Corsair the screws on the H100i stick out of the top too much and I find they dent the magnetic dust cover on the top. -Some of the items in the case are done in a bit of a strange way, makes it hard to position some things and meant it was a bit difficult to fit new fans in the front of the case. -Stock fans are pretty loud and a bit poor, may want to change them. I can't really think of many other negatives, so if those things don't bother you, you're in luck with the laundry list of positives for this case: Positives: -Sleek, minimalist design, with brushed aluminium front panels that adds an amazingly simple and classy look to the case. -Tons of space. I'm currently using this with SLI 980's inside and there's still enough room to swing a cat in there, but not so much extra room that it starts to look ridiculous unless you add in some watercooling parts, it's really a perfect size. I removed one of the drive bays because I only needed one and I figured removing it may help with airflow and cable management, but it's absolutely not necessary. -Stays cool. Very cool. Not only does this case look cool, but with a H100i on the CPU and replacing the rather noisy and slightly poor fans on the front with two Noctua AF-N14's for intake fans + a quiet edition Corsair AF140 on the back, it stays almost silent even when running all fans at 100% and everything stays very cool. I can't really think of much else to say about this case, but I certainly reccomend it to anyone considering it, so long as the few negatives at the top don't deter them. 11 April 2015
Rated 4 out of 5 by Good, but not perfect. I wanted a well built, good looking case for my new rig and this was my choice. It was very easy to build in as it has plenty of space, options and great cable management. However, there are a few niggles. First is there are no damping pads on the psu mounts and second, no dust filters on the bottom fan positions. Neither is enough to spoil the overall result though and I'm very happy with my choice. 22 March 2015
Rated 5 out of 5 by Just Crying to be Water Cooled! Fantastic case, lots of room for watercooling, good build quality and keeps components very cool. Bought the case with only air cooling in mind but after building my build and seeing how much room is left i am certainly going to be putting in a custom watercooling loop. It supports up to 360 rad on the top, 280 on the front and 240 on the bottom, though unsupported you can fit a 420 on the top but you have to bend a bit of metal in the top 5.2 inch bay. i think i made a good choice with this case and i am a very happy customer, thanks Scan and Corsair! 08 March 2015
Rated 5 out of 5 by Cosair Obsidian 750D Full Tower Case What a case. You can not only get inside, so much room, the cables are all hidden in the back. no messy cable to get in the way. 6 hard drive bays 4 SSD drive bays, and with the motherboard and Power supply you still have room for a London bus and taxi cab. I added the Corsair H80i water cooling system. When up and running I had to keep checking if the PC was on, absolutely no noise, just a very very slight hum if you listen for it. The best choice I ever made. 20 November 2014
Rated 5 out of 5 by Well worth The case itself is a well manufactured piece of metal, the overall look is flawless. More than enough room to fit extra additions to the setup. Very easy to swap and remove parts with a few clicks or screws. 26 September 2014
Rated 5 out of 5 by Corsair 750D Great case with lots of upgrade potential well worth the cash 18 September 2014
Rated 4 out of 5 by One of the best cases I have owned This case is excellent. Went from a Corsair 500r to this as I wanted a bigger case for a full water cooling loop in the future. Stock fans that come with it are actually pretty good and not as audible as I thought they would be being a Corsair fan (not exactly the quietest of brands) Fan filters seem to do a good job of keeping all the dust out and fitting everything into the case and making it look tidy is a doddle thanks to its size and the space behind the motherboard tray. One of the only gripes I have for this case is the front air intake air flow or lack of it. With the front of the case on, there is very little in the way of airflow. I got round it by punching lots of 20 mm holes in the panel, now it breathes like it should! Highly recommend this case to anyone. Only reason it didn't get a full 5 star rating is down to the front intake air flow issue. 10 August 2014
Rated 5 out of 5 by Amazing design This case is a good solid build and has plenty of room. It's a simple design but it does the job and it's pretty quiet 01 April 2014
  • 2015-04-27T06:39:35.633-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co-hasreviews, tv_23, tr_23
  • loc_en_US, sid_53701, prod, sort_default
2 next>>

Questions and Answers

(2 Questions : 6 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer

5 answers

What connector do the included fans have?

Are they 4 pin PWM or 3 pin.
Thanks
Age: 18 to 24
Gender: Male
1 year, 2 months ago
Customer avatar
by
Ipswich, Suffolk, UK
Read all my Q&A

Please wait while more information about Russboy360 is loaded.
Additional information about Russboy360 could not be loaded.
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0

Answers

Answer:
The case fans would be 3 Pin.
1 year, 1 month ago
Customer avatar
by
Read all my Q&A

Please wait while more information about ChrisP is loaded.
Additional information about ChrisP could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
3 pin.
1 year, 1 month ago
Customer avatar
by
Loughborough, UK
Read all my Q&A

Please wait while more information about Remi is loaded.
Additional information about Remi could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
They're three pin. I've connected them into a fan controller. Cables are nice and long which is a bonus
1 year, 1 month ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Mike6557 is loaded.
Additional information about Mike6557 could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
3 Pin
7 months ago
Customer avatar
by
Liverpool, Merseyside, UK
Read all my Q&A

Please wait while more information about dabble is loaded.
Additional information about dabble could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
3 pin
5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about SteveBishop is loaded.
Additional information about SteveBishop could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Will a triple rad fit in the top of this case?? More so a Thermalchill PA120.3 rad...

I'm trying to find something that will house my EVGA 759 and 762 boards.. I was hoping this one might get them in!!
Age: 25 to 34
Gender: Male
7 months ago
Customer avatar
by
Bridgwater, Somerset, UK
Read all my Q&A

Please wait while more information about Phill is loaded.
Additional information about Phill could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
yes
4 months, 3 weeks ago
Customer avatar
by
Read all my Q&A

Please wait while more information about thermobaricj is loaded.
Additional information about thermobaricj could not be loaded.
-1point
0out of 1found this answer helpful.
