Brainboxes- PCMCIA 1 Port Velocity Serial (RS-422/485) PC Card with 128 Byte FIFO (PM-120)
End Of Life
Brainboxes- PCMCIA 1 Port Velocity Serial (RS-422/485) PC Card with 128 Byte FIFO (PM-120)
Scan code: LN12397 Manufacturer code: PM-120
End Of Life

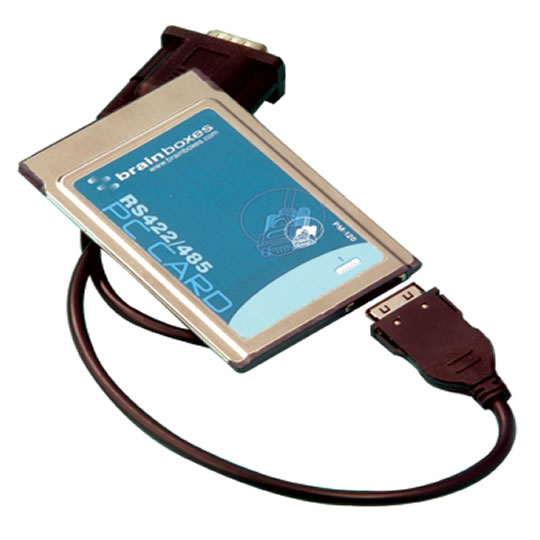

Brainboxes- PCMCIA 1 Port Velocity Serial (RS-422/485) PC Card with 128 Byte FIFO (PM-120) : image 1
  • Thumbnail 1 : Brainboxes- PCMCIA 1 Port Velocity Serial (RS-422/485) PC Card with 128 Byte FIFO (PM-120)
End Of Life

Brainboxes- PCMCIA 1 Port Velocity Serial (RS-422/485) PC Card with 128 Byte FIFO (PM-120)

Scan code: LN12397 Manufacturer code: PM-120
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview A PCMCIA type II card providing a single serial port configurable as RS422 or RS485 full or half duplex.

The megabaud data transfer rates and the 128 byte deep FIFO, coupled with the RS485 Half Duplex Hardware Implemented Autogating guarantees uncompromising performance and fault-free use for the laptop user.

Baud rates are software selectable. Features Software
Micrsoft signed drivers (easy installation and robust operations) for:

• Windows server 2003 x32 bit and x64 bit Editions
• Windows XP x32 bit and x64 bit Editions
• Windows 2000

Fully tested drivers also included for:

Windows Me, Windows 98 and 95
Windows CE

As well as: full support documentation, a thorough trouble shooting guide and terminal software. Detailed sample source code for all popular programming languages.

Features
• 1 port RS422/485
• PCMCIA Type II
• 128 Byte FIFO with user definable trigger level
• Up to 921,600 baud
• Standard and Ruggedised Options
• Full Duplex and Half Duplex Autogating
• Transient Spike Protector
• Drivers for all popular operating systems
• Sample programs, Test and Terminal software- all with source code
• Lifetime Support and Lifetime Warranty
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
999 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
999 months
Manufacturer Contact Details
Manufacturer:
Scan

Additional Notes:
Life Time Warranty subject to manufacturer.

12 months warranty direct with scan, remainder subject to manufacturer warranty.

This Warranty does not cover any damage due to accident, misuse, abuse or negligence & products whose serial numbers have been altered, removed or made illegible.
