Brainboxes IS-200 Intashield 2 Port (RS-232) Serial Universal 32 bit PCI Card (3.3V/5V) (16550 UART)
End Of Life
Brainboxes IS-200 Intashield 2 Port (RS-232) Serial Universal 32 bit PCI Card (3.3V/5V) (16550 UART)
Scan code: LN12389 Manufacturer code: IS-200
End Of Life

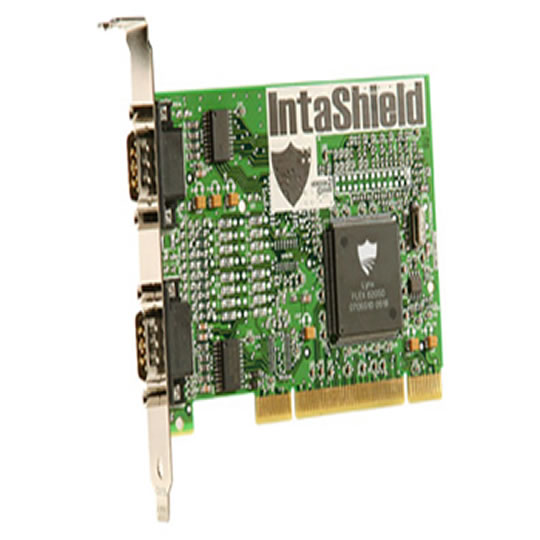

Brainboxes IS-200 Intashield 2 Port (RS-232) Serial Universal 32 bit PCI Card (3.3V/5V) (16550 UART) : image 1
  • Thumbnail 1 : Brainboxes IS-200 Intashield 2 Port (RS-232) Serial Universal 32 bit PCI Card (3.3V/5V) (16550 UART)
End Of Life

Brainboxes IS-200 Intashield 2 Port (RS-232) Serial Universal 32 bit PCI Card (3.3V/5V) (16550 UART)

loBrainboxes IS-200 Intashield 2 Port (RS-232) Serial Universal 32 bit PCI Card (3.3V/5V) (16550 UART)
MORE INFO
MORE INFO

Scan code: LN12389 Manufacturer code: IS-200
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview This card provides 2 industry standard 9 pin RS232 serial COM ports in a single PCI slot. As PCI is fully Plug & Play compatible the operating system or BIOS automatically configures the card ensuring conflict free installation.

Features Product Features
• 2 x 9 pin, D type RS232 Serial Ports
• PCI Bus - Fully Plug & Play
• PCI 2.3 Compliant
• 16 Byte transmit and receive FIFO
• Supports both 3.3V / 5V standards
• Drivers for all popular operating systems
• Test software provided
• Install guide, FAQ and other support documents provided

Specifications
• Serial Ports: 2 x RS232
• UART: 16550
• Speed: 115,200 maximum baud rate
• Data Bits: 5, 6, 7 or 8
• Stop Bits: 1 or 2
• Parity: Odd, even, none, mark or space
• FIFO Size: 16 byte
• Bus type: 32-bit PCI
• IRQs: Plug and play - Shared interrupts for all ports
