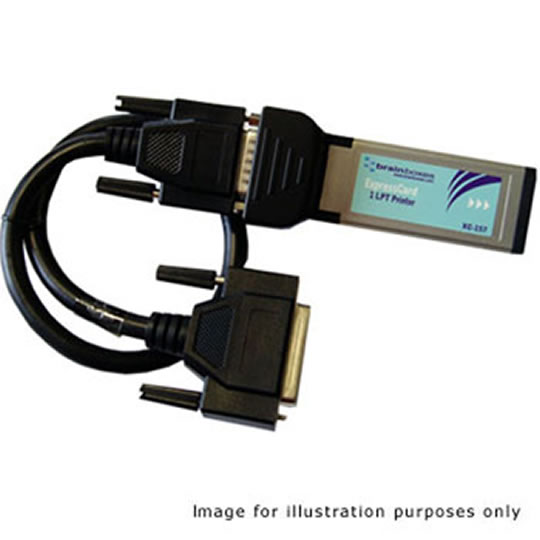

Brainboxes XC-157 1 LPT Printer Port PCIe ExpressCard
Scan code: LN41118
Manufacturer code: XC-157
End Of Life
Product Overview
XC-157 1 LPT Printer Port PCIe ExpressCard providing one Printer port; where absolute compatibility with classic desktop LPT parallel printer ports is a necessity. Guaranteed low latency, memory mapped, no compromise high performance interface. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008 and Windows 7.
Features
Port:
Ports: 1.
Protocol: LPT Printer.
Connector: 25 Pin Parrallel Port Female Connector.
Operating Distance: EIA - RS232 Standard.
Cable: 25 Pin D-sub female.
General
Power Consumption: 40mA @ 3.3V.
Product Weight: 0.043 kg.
Product Dimensions: 110(l) x 46(w) x 20(h) mm.
Interface: ExpressCard PCIe Implementation. Unlike the VX range which uses USB technology over expresscard, this uses PCI Express technology over expresscard.
Ports: 1.
Protocol: LPT Printer.
Connector: 25 Pin Parrallel Port Female Connector.
Operating Distance: EIA - RS232 Standard.
Cable: 25 Pin D-sub female.
General
Power Consumption: 40mA @ 3.3V.
Product Weight: 0.043 kg.
Product Dimensions: 110(l) x 46(w) x 20(h) mm.
Interface: ExpressCard PCIe Implementation. Unlike the VX range which uses USB technology over expresscard, this uses PCI Express technology over expresscard.
