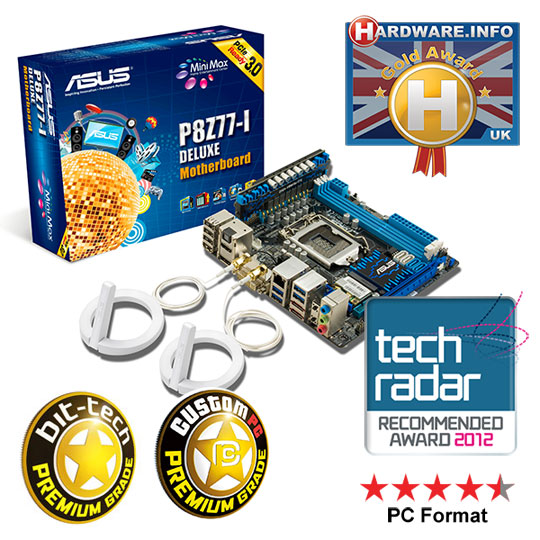

Asus P8Z77-I DELUXE Intel Z77 Socket 1155 Mini ITX Motherboard
End of Life

Asus P8Z77-I DELUXE Intel Z77 Socket 1155 Mini ITX Motherboard

Asus P8Z77-I DELUXE, Intel Z77, S 1155, DDR3, SATA III - 6Gb/s, SATA RAID, PCIe 3.0 (x16) DVI-I, Mini ITX

Scan Code: LN45198

Manufacturer Code: P8Z77-I DELUXE

Customer Reviews and Q&A

Social Media

Asus P8Z77-I DELUXE, Intel Z77, S 1155, DDR3, SATA III - 6Gb/s, SATA RAID, PCIe 3.0 (x16) DVI-I, Mini ITX

Asus P8Z77-I DELUXE Intel Z77 Socket 1155 Mini ITX MotherboardAsus P8Z77-I DELUXE Intel Z77 Socket 1155 Mini ITX MotherboardAsus P8Z77-I DELUXE Intel Z77 Socket 1155 Mini ITX Motherboard
Asus P8Z77-I DELUXE Intel Z77 Socket 1155 Mini ITX Motherboard

Product Overview

Intel® Z77 Express Chipset
The Intel® Z77 Express Chipset is a single-chipset design to support socket 1155 Intel® 3rd generation Intel® Core™ processor-based platform and 2nd generation Core™ i7/i5/i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel® Z77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel® integrated graphic performance.

Digital Power Design: The New Standard
The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). The new generation of Dual Intelligent Processors 2 with DIGI+ VRM provides precise Vcore PWM, integrated graphics voltages and frequency module adjustments with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency.

The Ultimate Turbo Processor
Unleash your performance with ASUS' simple onboard switch or AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning , GPU Boost and TurboV functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations.

Features

Energy Efficiency All Around
Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!

Faster USB 3.0 Transmission with UASP
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.

AI Suite II
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise overclocking, energy management, fan speed control, voltage and sensor readings, and even interact with mobile devices via Wi-Fi. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.

Technical Specification

Manufacturer:AsusGraphics Connectors:DVI-I
Form Factor:Mini ITX Graphics Interface:PCIe 3.0 (x16)
CPU Socket:1155 SLI Support:
QPI Speed:N/ACrossfire Support:
Chipset:Intel Z77 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Dual RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:1 x PCIe 3.0 x16
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
1 x 4pin (V)
1 x 4pin Fan (V)
1 x 8pin (V)
1 x Clear CMOS Button
1 x MemOK! Button
2 x SATA II - 3Gb/s
2 x SATA III - 6Gb/s
1 x SPDIF-Out Header
1 x Speaker
1 x System panel connector
2 x USB 2.0 Header
1 x USB 3.0 Header
Memory Speed (Mhz):1333
DDR3 - 1600
DDR3 - 1800(OC)
DDR3 - 2000(OC)
DDR3 - 2133(OC)
DDR3 - 2200(OC)
DDR3 - 2400(OC)
Back Panel:1 x 10/100 (LAN)
1 x Audio I/O
1 x Clear CMOS Button
1 x DisplayPort
1 x DVI-I
2 x eSATA 3Gb/s
1 x HDMI
1 x SPDIF Out (Optical)
4 x USB 2.0
4 x USB 3.0
1 x USB BIOS Flashback Button
2 x Wireless LAN antenna jack
Memory Capacity:16GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Direct

DOA Period: 7 days

Manufacturer Contact Details

Manufacturer: ASUS

Telephone: 01442 265548
