ASRock Z97E-ITX/AC Mini-ITX Motherboard
Scan code: LN58406
Manufacturer code: Z97E-ITX/AC
End Of Life
ASRock Z97E-ITX/AC Mini-ITX Motherboard
ASRock Z97E-ITX/AC, Intel Z97, S 1150, DDR3, SATA III 6Gb/s, SATA RAID, PCIe 3.0 (x16), DP/DVI/HDMI, Mini ITX
Scan code:
LN58406
Manufacturer code:
Z97E-ITX/AC
This product is no longer available to purchase.
Email me when the availability or price changes
- 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview
Premium Alloy Choke
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
Dual-Stack MOSFET for CPU Power
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 m?, so the power supply for the CPU Vcore is more efficient.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 m?, delivering higher efficiency and lower temperature.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Sapphire Black PCB
ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
M.2 Socket (PCIe Gen2 x2 & SATA)
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) solid state drives or other devices. ASRock supports M.2 SATA3 6Gb/s modules and M.2 PCI Express modules up to Gen2 x2 10Gb/s, which is 2X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.
Nichicon Fine Gold Audio Caps
ASRock applied Nichicon Fine Gold Series audio capacitors that every audiophile has been longing for on a PC! Compared with traditional solid caps, the leakage current of Nichicon audio caps is merely 10uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. Features • ASRock Super Alloy
- Premium 60A CPU Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power
• Supports Dual Channel DDR3 3200+(OC), 15? Gold Contact in DIMM Slots
• 1 PCIe 3.0 x16, 1 mini-PCIe for WiFi + BT Module, 15? Gold Contact in VGA PCIe Slot (PCIE1)
• VGA Output/Input Options: DVI-I, HDMI, HDMI-In, DisplayPort
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Nichicon Fine Gold Series Audio Caps, Supports DTS Connect
• TI® NE5532 Premium Headset Amplifier
• Intel® Gigabit LAN
• 1 SATA Express, 6 SATA3, 1 M.2 (PCIe Gen2 x2 & SATA, Supports 30mm and 42mm M.2 devices), 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
• WLAN: 1 x 2T2R Dual Band 802.11ac WiFi + BT v4.0 Module, 1 x ASRock WiFi 2.4/5 GHz Antenna
• Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
Dual-Stack MOSFET for CPU Power
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 m?, so the power supply for the CPU Vcore is more efficient.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 m?, delivering higher efficiency and lower temperature.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Sapphire Black PCB
ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
M.2 Socket (PCIe Gen2 x2 & SATA)
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) solid state drives or other devices. ASRock supports M.2 SATA3 6Gb/s modules and M.2 PCI Express modules up to Gen2 x2 10Gb/s, which is 2X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.
Nichicon Fine Gold Audio Caps
ASRock applied Nichicon Fine Gold Series audio capacitors that every audiophile has been longing for on a PC! Compared with traditional solid caps, the leakage current of Nichicon audio caps is merely 10uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. Features • ASRock Super Alloy
- Premium 60A CPU Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power
• Supports Dual Channel DDR3 3200+(OC), 15? Gold Contact in DIMM Slots
• 1 PCIe 3.0 x16, 1 mini-PCIe for WiFi + BT Module, 15? Gold Contact in VGA PCIe Slot (PCIE1)
• VGA Output/Input Options: DVI-I, HDMI, HDMI-In, DisplayPort
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Nichicon Fine Gold Series Audio Caps, Supports DTS Connect
• TI® NE5532 Premium Headset Amplifier
• Intel® Gigabit LAN
• 1 SATA Express, 6 SATA3, 1 M.2 (PCIe Gen2 x2 & SATA, Supports 30mm and 42mm M.2 devices), 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
• WLAN: 1 x 2T2R Dual Band 802.11ac WiFi + BT v4.0 Module, 1 x ASRock WiFi 2.4/5 GHz Antenna
• Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI

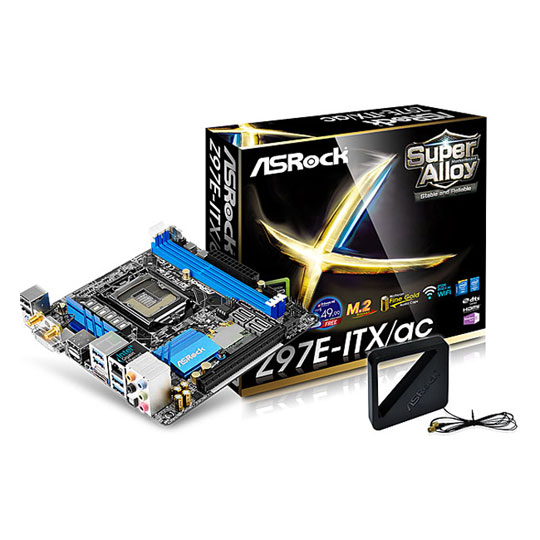

ASRock Z97E-ITX/AC Mini-ITX Motherboard
