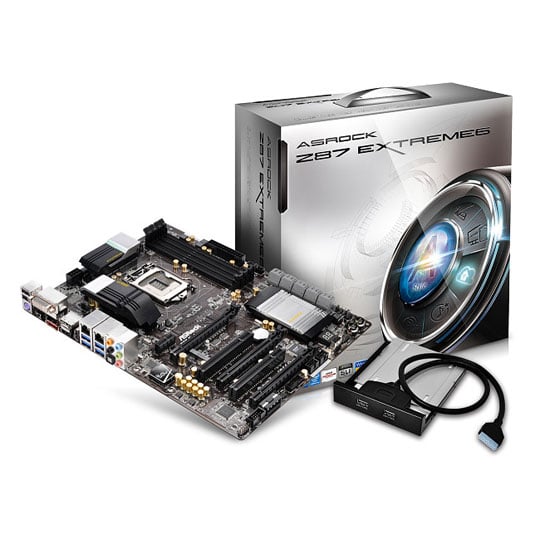

ASRock Z87 Extreme6 Intel Z87 Socket 1150 Motherboard
Scan code: LN51145
Manufacturer code: Z87 Extreme6
End Of Life
ASRock Z87 Extreme6 Intel Z87 Socket 1150 Motherboard
ASRock Z87 Extreme6, Intel Z87, S 1150, DDR3, SATA III - 6Gb/s, SATA RAID, PCIe 3.0 (x16), DPort/DVI-I/HDMI, ATX
Scan code:
LN51145
Manufacturer code:
Z87 Extreme6
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
Intel® Ethernet
This motherboard supports remote wake with the onboard Intel® LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
Purity Sound™
Purity Sound is a combination of several hardware, software audio solutions and technologies that will satisfy even the pickiest audiophiles. Including 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® 5532 Premium Headset Amplifier which supports up to 600 ohm headphones, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and support for DTS Connect.
HDMI-In
Tired of constantly switching devices to connect to your one and only monitor? From now on just connect the monitor to your motherboard, and connect your secondary device (such as a PS3 or Xbox) to the motherboard’s HDMI-In port. With HDMI-In users may conveniently toggle between the computer’s screen and the secondary device’s screen, or even use their secondary device without powering on the computer.
Premium Gold Caps
Premium Gold Caps are 100% made in Japan; these solid capacitors are sleek, high gloss caps with a premium gold coating representing long life Premium Gold and stable performance.
4K/2K
4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Features • A-Style : Home Cloud, Purity Sound™, HDMI-In
• Supports 4th Gen Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 Package
• Premium Gold Capacitor Design, Digi Power, 12 Power Phase Design, Dual-Stack MOSFET
• Supports Dual Channel DDR3 2933+(OC)
• 3 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x mini-PCIe
• Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX
• Supports NVIDIA® Quad SLI and SLI
• Multi VGA Output Options : DVI-I, HDMI, DisplayPort
• Intel® Dual Gigabit LAN with Teaming
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
• 10 x SATA3, 1 x eSATA, 8 x USB 3.0, 7 x USB 2.0
• 1 x Front USB 3.0 Panel with 2.5" HDD/SSD Rack, 1 x Rear USB 3.0 Bracket
• Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
This motherboard supports remote wake with the onboard Intel® LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
Purity Sound™
Purity Sound is a combination of several hardware, software audio solutions and technologies that will satisfy even the pickiest audiophiles. Including 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® 5532 Premium Headset Amplifier which supports up to 600 ohm headphones, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and support for DTS Connect.
HDMI-In
Tired of constantly switching devices to connect to your one and only monitor? From now on just connect the monitor to your motherboard, and connect your secondary device (such as a PS3 or Xbox) to the motherboard’s HDMI-In port. With HDMI-In users may conveniently toggle between the computer’s screen and the secondary device’s screen, or even use their secondary device without powering on the computer.
Premium Gold Caps
Premium Gold Caps are 100% made in Japan; these solid capacitors are sleek, high gloss caps with a premium gold coating representing long life Premium Gold and stable performance.
4K/2K
4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Features • A-Style : Home Cloud, Purity Sound™, HDMI-In
• Supports 4th Gen Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 Package
• Premium Gold Capacitor Design, Digi Power, 12 Power Phase Design, Dual-Stack MOSFET
• Supports Dual Channel DDR3 2933+(OC)
• 3 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x mini-PCIe
• Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX
• Supports NVIDIA® Quad SLI and SLI
• Multi VGA Output Options : DVI-I, HDMI, DisplayPort
• Intel® Dual Gigabit LAN with Teaming
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
• 10 x SATA3, 1 x eSATA, 8 x USB 3.0, 7 x USB 2.0
• 1 x Front USB 3.0 Panel with 2.5" HDD/SSD Rack, 1 x Rear USB 3.0 Bracket
• Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
