ASRock 970 Extreme4 AMD 970 AM3+ Motherboard - 970 EXTREME4
£4.57 Next Day Delivery

£58.97 Ex VAT

£70.76 Inc VAT

Scan Finance Example: based on a £500 (inc VAT) order
  • Buy Now Pay Later (9 Months / 39) After a 10% deposit pay nothing for 9 months.
  • Classic Credit 24 Months 15.9% After a 10% deposit pay £21.78 for 24 months.
  • Classic Credit 36 Months 15.9% After a 10% deposit pay £15.57 for 36 months.
PayBreak

Spend between £100 and £1000 and get the goods before you pay.

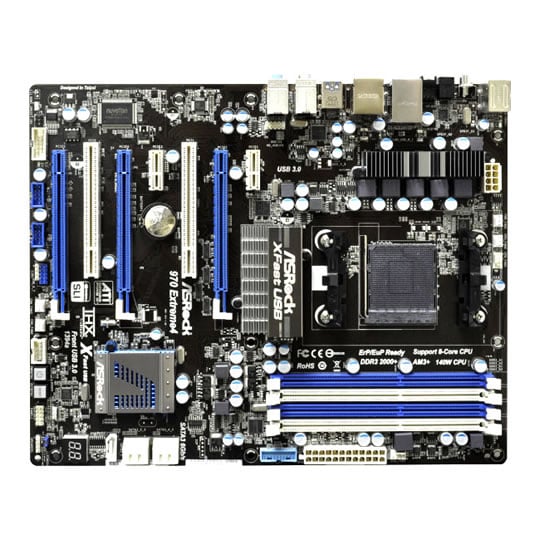

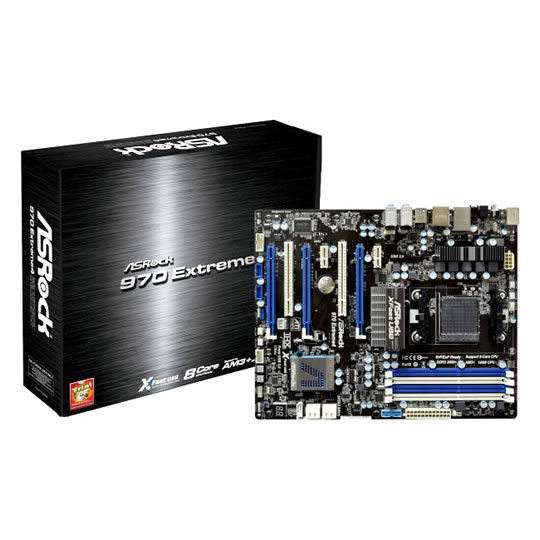

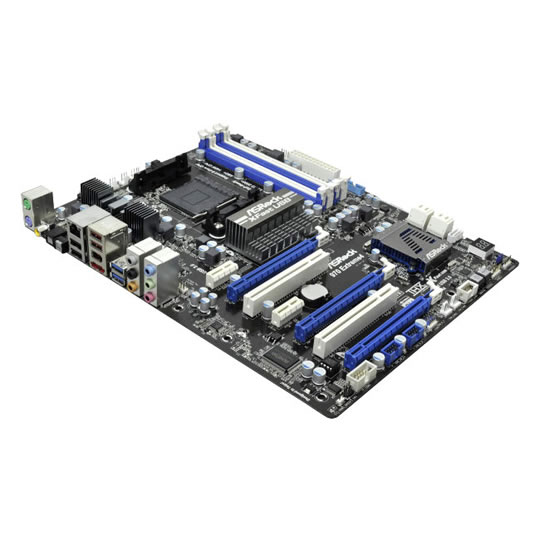

ASRock 970 Extreme4 AMD 970 AM3+ Motherboard

970 EXTREME4 - ASRock 970 Extreme4, AMD 970, S AM3+, DDR3 2100MHz(OC), SATA III - 6Gb/s, SATA RAID, PCIe 2.0 (x16), ATX, USB 3.0, eSATA

Scan Code: LN43628

Manufacturer Code: 970 EXTREME4

Customer Reviews and Q&A

Social Media

970 EXTREME4 - ASRock 970 Extreme4, AMD 970, S AM3+, DDR3 2100MHz(OC), SATA III - 6Gb/s, SATA RAID, PCIe 2.0 (x16), ATX, USB 3.0, eSATA

ASRock 970 Extreme4 AMD 970 AM3+ MotherboardASRock 970 Extreme4 AMD 970 AM3+ MotherboardASRock 970 Extreme4 AMD 970 AM3+ MotherboardASRock 970 Extreme4 AMD 970 AM3+ Motherboard
ASRock 970 Extreme4 AMD 970 AM3+ Motherboard

Product Overview

XFast RAM - Fully Optimize Memory Usage
It fully utilizes the memory space that cannot be used under Windows® 32-bit OS. ASRock XFast RAM also shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

XFast LAN Technology
ASRock XFast LAN is a smart productivity tool to help you manage your priorities of internet applications, simplify your digital life and accomplish more. The innovative features include : Internet Application Prioritization, Lower Latency in Game, Traffic Shaping and Real-Time Analysis of Your Data. It's the smartest way to control your web programs.

ASRock XFast USB Technology - Faster Than Your Imagination!
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. ASRock XFast USB technology can even boost USB 3.0 performance up to 5X faster!

AM3+ 8-Core Processor Support
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.

Graphical UEFI – The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.

AXTU - The All-in-1 Tuning Software
ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to adjust the CPU frequency, ratio and some voltages for optimal system performance. In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.

Features

• ASRock Dura Cap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
• Digi Power, Supports AM3+ Processor, 8-Core CPU
• Supports Dual Channel DDR3 2100(OC)
• Supports AMD Quad CrossFireX™ , 3-Way CrossFireX™ and CrossFireX™
• Supports NVIDIA® SLI™
• 4 x USB 3.0, 5 x SATA3, 2 x IEEE 1394, Dr. Debug, Power/Reset/Clear CMOS Switch with LED
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio™
• Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
• Supports Graphical UEFI, On/Off Play, Instant Boot, Instant Flash, APP Charger, SmartView, Turbo UCC

Technical Specification

Manufacturer:ASRockGraphics Connectors:
Form Factor:ATX Graphics Interface:PCIe 2.0 (x16)
CPU Socket:AM3+ SLI Support:
QPI Speed:N/ACrossfire Support:
Chipset:AMD 970 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Dual RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:2 x PCI (32 bit)
2 x PCIe 2.0 x1
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16 (x4 Bandwidth)
1 x PCIe 2.0 x16 (x8 Bandwidth)
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
1 x 8pin (V)
1 x CIR
3 x Fan Header (V)
1 x Firewire
1 x FP Audio Header
1 x HDMI_SPDIF
1 x IrDA
4 x Memory Slots (DDR3)
5 x SATA III - 6Gb/s
1 x Serial (COM) Header
3 x USB 2.0 Header
1 x USB 3.0 Header
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
DDR3 - 1800
DDR3 - 1866
DDR3 - 2100(OC)
DDR3 - 800

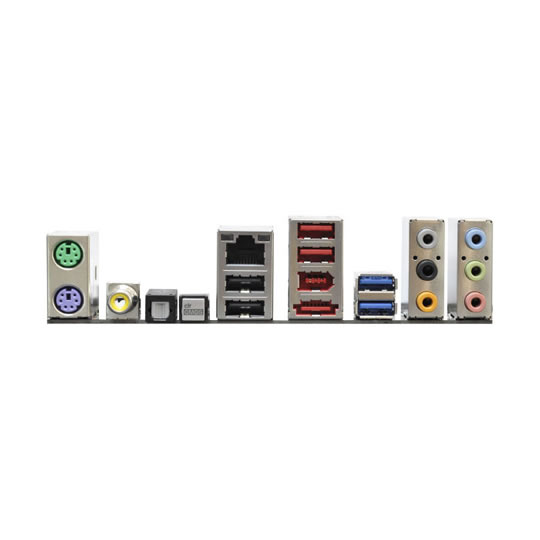

Back Panel:1 x 10/100/1000 (LAN)
1 x 7.1 Audio I/O
1 x Clear CMOS Button
1 x eSATA 6Gb/s
1 x Firewire (6pin)
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x SPDIF Out (Coaxial)
1 x SPDIF Out (Optical)
4 x USB 2.0
2 x USB 3.0
Memory Capacity:64GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 28 days

RTB Period: 24 months

Manufacturer Contact Details

Manufacturer: Scan

Telephone: 0871 472 4747

Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send

Find Similar Products

Find similar products with the same specifications as ASRock 970 Extreme4, AMD 970, S AM3+, DDR3 2100MHz(OC), SATA III - 6Gb/s, SATA RAID, PCIe 2.0 (x16), ATX, USB 3.0, eSATA . Please choose from the list below.

ATX

Please tick the check box above

AM3+

Please tick the check box above

N/A

Please tick the check box above

AMD 970

Please tick the check box above

DDR3

Please tick the check box above

Dual

Please tick the check box above

Non-ECC

Please tick the check box above

Unbuffered

Please tick the check box above

DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
DDR3 - 1800
DDR3 - 1866
DDR3 - 2100(OC)
DDR3 - 800

Please tick the check box above

64GB

Please tick the check box above

Please tick the check box above

PCIe 2.0 (x16)

Please tick the check box above

Please tick the check box above

Please tick the check box above

No

Please tick the check box above

SATA III 6Gb/s

Please tick the check box above

SATA

Please tick the check box above

2 x PCI (32 bit)
2 x PCIe 2.0 x1
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16 (x4 Bandwidth)
1 x PCIe 2.0 x16 (x8 Bandwidth)

Please tick the check box above

1 x 24pin (V)
1 x 8pin (V)
1 x CIR
3 x Fan Header (V)
1 x Firewire
1 x FP Audio Header
1 x HDMI_SPDIF
1 x IrDA
4 x Memory Slots (DDR3)
5 x SATA III - 6Gb/s
1 x Serial (COM) Header
3 x USB 2.0 Header
1 x USB 3.0 Header

Please tick the check box above

1 x 10/100/1000 (LAN)
1 x 7.1 Audio I/O
1 x Clear CMOS Button
1 x eSATA 6Gb/s
1 x Firewire (6pin)
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x SPDIF Out (Coaxial)
1 x SPDIF Out (Optical)
4 x USB 2.0
2 x USB 3.0

Please tick the check box above

Customer Reviews

Rated 4.4 out of 5 by 5 reviewers.
Rated 3 out of 5 by Not the best choice for OC Ill be ohnest when i fist got this motherboard i thought it was the best hing ever, after little over a year i have fouind it top be troublesome in trying to get a decent oc from the cpu as the motherboard is not capable of delivering the required voltages to the different sections of the system as and when they need them. Ill admit im using high oc but none the less it took a long time to figure out what the sensors were, what caused the throttle on the cpu and why it was overheating. Its only good if your new to computers and arnt bothered about really pushing your cpu, if you are im afraid you will have to shell out some more cash. 18 September 2013
Rated 4 out of 5 by enough usb ports for the majority of people, and the board does seem to get the most out of the chip. drives are all sata so you will need a controller if you are going to use an older hard drive and the chances are you may need to get a new dvd writer for the same reason 18 March 2013
Rated 5 out of 5 by Quite easy to set up but still evaluating its overall performance. There are builders who's eyesight is not as good as it was and the manual supplied might take this into consideration Using an Inwin Griffin Case and have not been able to get the front usb connectors to work 15 November 2012
Rated 5 out of 5 by Amazing Motherboard, A must have if your looking to set up a gaming pc. Easy To Install Parts Onto Simple To Use Can't Fault 13 November 2012
Rated 5 out of 5 by Good build quality, nice layout, good value board. SLi lanes are x16, x8, x8, would like to have x16, x16, x8 but for its price its more than ok. 24 August 2012
