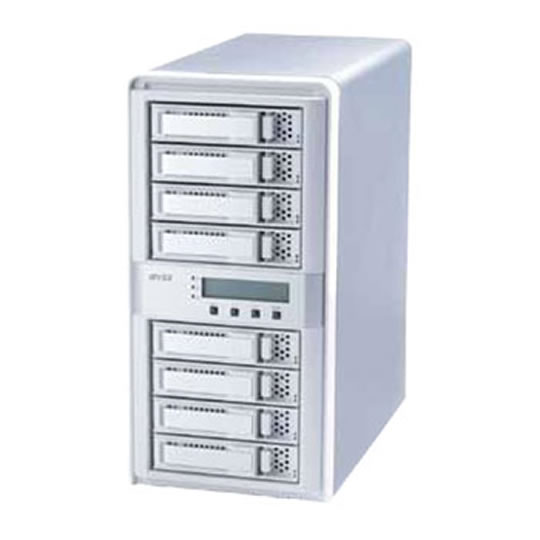

Areca ARC-8040 8-Bays 6Gb/s SAS to SAS RAID Subsystem
Scan code: LN36134
Manufacturer code: ARC-8040
End Of Life
Product Overview
The ARC-8040 is the most complete 8-bay subsystem with RAID control capabilities. The ARC-8040 unleashes a truly innovative 6Gb/s SAS to SAS RAID solution for both PC and Mac. SAS 2.0 is designed for backward compatibility with SAS 1.0, twice speed data transfer 6Gb/s than previous available. The SAS 2.0 interface supports both 6Gb/s SAS disk drives for data-intensive applications and 6Gb/s SATA drives for low-cost bulk storage of reference data. The ARC-8040 supports flexibility interface configuration; one 4 lanes 6Gb/s SAS host with one 4 lanes 6Gb/s SAS expander or two 4 lanes 6Gb/s SAS host for easy expansion and performance. When expander port used with SAS 6Gb/s expander, the ARC-8040 can provide up to (122) devices through one or more 6Gb/s SAS JBODs, making it an ideal solution for enterprise-class storage applications that call for maximum configuration flexibility.
Features Adapter Architecture
• 800 MHz RAID-on-Chip for RAID core and SAS microcode
• 512MB on-board DDR2-800 SDRAM with ECC protection
• NVRAM for RAID event log & transaction log
• Write-through or write-back cache support
• Redundant flash image for adapter availability
• Real time clock support
• Battery Backup Module ready (Option)
RAID Features
• RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
• Multiple RAID selection
• Online array roaming
• Offline RAID set
• Online RAID level/stripe size migration
• Online capacity expansion and RAID level migration simultaneously
• Online volume set growth
• Instant availability and background initialization
• Automatic drive insertion / removal detection and rebuilding
• Support global and dedicated hot spare
• Greater than 2TB per volume set (64-bit LBA support)
• Greater than 2TB per disk drive
• Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
• Login record in the event log with IP address and service (http, telnet and serial)
• Support intelligent power management to save energy and extend service life
• Support NTP protocol to synchronize RAID controller clock over the on-board LAN port
• Max 122 devices
• Max 128 LUNs (volume set) per controller
Monitors/Notification
• Push Buttons and LCD Display Panel for setup and status
• Environment and drive failure indication through LCD, LED and alarm buzzer
• Keep silent and adequate air flow and cooling by intelligent cooling fan speed controller
• Subsystem management ready (SES-2)
Drive Interface
• Up to 8 x 6Gb/s internal port
• Up to 122 devices using SAS expanders (one external SFF-8088 connector port1)
• Up to 6Gb/s per port
Host Interface
• 6Gb SAS-to-SAS
• One (port0) or two (port0 & port1) external SFF-8088 6Gb/s SAS ports-600MB/sec per PHY link
RAID Management
• Field-upgradeable firmware in flash ROM
• Firmware-embedded manager via RS-232 port and LCD
• Firmware-embedded browser-based RAID manager, SMTP manager, SNMP agent and Telnet function via 1Gb/s LAN port
• API library for customer to write its own monitor utility
• SAP management feature to easily manage multiple RAID units in the network
