Corsair CP-9020059-UK CXM Builder series 500W Power Supply (PSU)

£37.49 Ex VAT

£44.99 Inc VAT

Scan Finance Example: based on a £500 (inc VAT) order
  • Buy Now Pay Later (9 Months / 39) After a 10% deposit pay nothing for 9 months.
  • Classic Credit 24 Months 15.9% After a 10% deposit pay £21.78 for 24 months.
  • Classic Credit 36 Months 15.9% After a 10% deposit pay £15.57 for 36 months.
  • Classic Credit 48 Months 15.9% After a 10% deposit pay £12.49 for 48 months.
PayBreak

Spend between £100 and £1000 and get the goods before you pay.

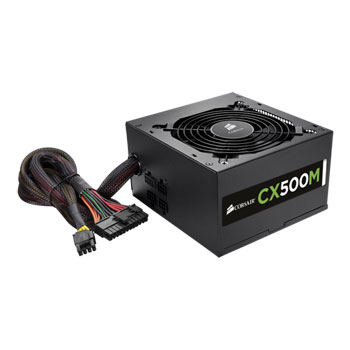

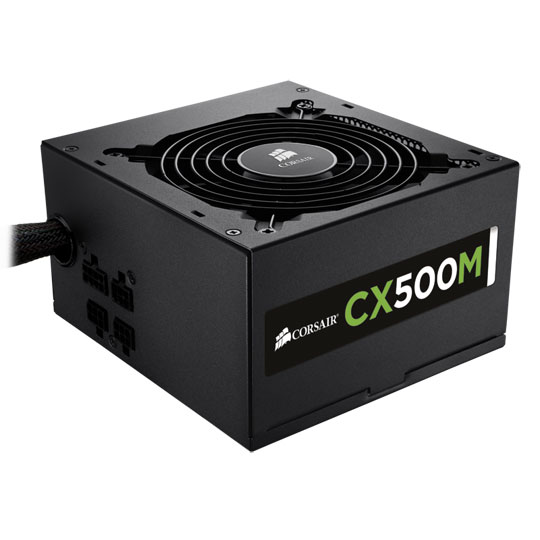

Corsair CP-9020059-UK CXM Builder series 500W Power Supply (PSU)

CP-9020059-UK - 500W Corsair CXM Builder series, Hybrid Modular, 80 PLUS Bronze, 1x120mm, ATX, PSU

Scan Code: LN48713

Manufacturer Code: CP-9020059-UK

Customer Reviews and Q&A

Social Media

CP-9020059-UK - 500W Corsair CXM Builder series, Hybrid Modular, 80 PLUS Bronze, 1x120mm, ATX, PSU

Corsair CP-9020059-UK CXM Builder series 500W Power Supply (PSU)
Corsair CP-9020059-UK CXM Builder series 500W Power Supply (PSU)

Product Overview

CX Series™ Modular power supply units are an excellent choice for basic system builds and desktop PC computer upgrades, offering high reliability, low noise, easy installation. The flexible modular cabling system lets you use only the cables you need, and 80 PLUS Bronze certified efficiency means less excess heat, lower noise, and lower power bills. The large-diameter, thermally controlled fan makes CX Series Modular quieter at idle, and the large diameter reduces noise even when you’re pushing your system hard. And, the matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.

Features

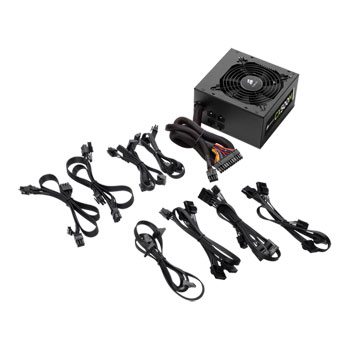

Modular cabling system lets you use only the cables you need
Built and tested to strict standards for trouble-free installation and smooth operation
80 PLUS Bronze certified efficiency for low noise and lower power bills

Additional Features
Up to 85% energy efficiency means less heat generation and lower energy bills.
0.99 Active Power Factor Correction provides clean and reliable power.
Universal AC input from 90-264V.
A dedicated single +12V rail offers maximum compatibility with the latest components.
Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
Extra long fully-sleeved cables support full tower chassis.
It supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
ErP Lot 6 Compliant
A three year warranty and lifetime access to Corsair¡¦s legendary technical support and customer service.

Technical Specification

Manufacturer:CorsairRail 4 +12V:N/A
Size:ATX Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:500 WRail 7 +12V:N/A
80 PLUS Certification:80 PLUS Bronze Rail 8 +12V:N/A
Max. Efficiency:85 %Max. Combined Output +12V:38 A
ErP / EuP Ready:YesModular:No
Cooling:Fan Modular Type:Hybrid Modular
Fans:1 x 120mm
SLI/CrossFire:Yes
Internal +12V Rails:Single Rail EPS 12V:Yes
Rail 1 +12V:38 AMotherboard Connector:24 Pin
Rail 2 +12V:N/AConnectors:4 x 4pin Molex
2 x 6pin PCI-E Power
1 x 8pin CPU +12V
1 x FDD Power
5 x SATA Power
Rail 3 +12V:N/ADimensions:150 x 86 x 160 (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Direct

DOA Period: 28 days

RTB Period: 36 months
