OCZ
Scan code: LN40289
Manufacturer code: VDC-HHPX8-320G
End Of Life

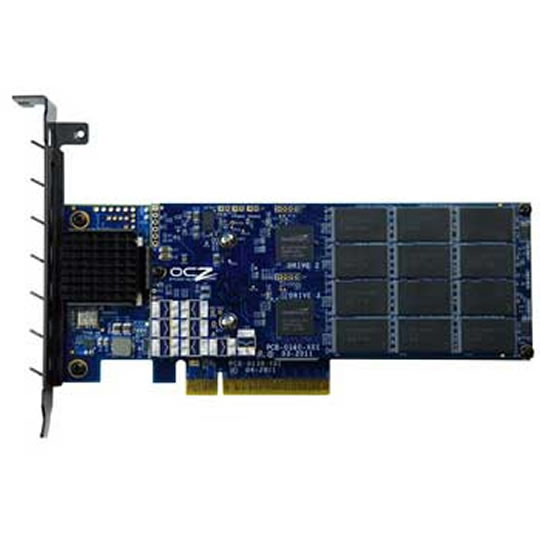

Product Overview
Designed to meet the needs of small to medium-sized businesses (SMBs) and system integrators, the VeloDrive C Series optimizes high-performance computing and storage applications, providing unparalleled versatility and simplified integration.
The VeloDrive can be run in either hardware or software RAID mode and can be deployed in half-height or full-height system requirements. When compared with competing PCIe flash-based solutions, the highly-efficient VeloDrive has a minimal impact on system resources including CPU utilization and the system’s DRAM footprint.
Eliminating the SATA/SAS bottleneck, the PCIe-based VeloDrive has the ability to deliver transfer speeds of up to 1.1GB/s and 125,000 4KB random write IOPS, and features SandForce® SF-1222 SSD processors for a cost-effective client solution. The VeloDrive utilizes MLC NAND flash and will be available in 160GB and 320GB configurations and comes backed by a 3-year warranty.
Features Onboard RAID Controller (Factory-direct configured for hardware RAID, ability to run software RAID*)
4 x SSD Processors
ECC Recovery
MLC NAND Flash
Form Factor: X8 slot low profile with full height bracket
Bootable
Dimensions: 168.55 (L) x 68.91 (W) x 17.14mm (H)
Weight: 132g
Operating Temp: 0°C ~ 70°C
Ambient Temp: 0°C ~ 55°C
Storage Temp: -45°C ~ 85°C
Power Consumption: Idle 9.5W, Active 10.5W
MTBF: 1,000,000 hours
3-Year Warranty
Compatible with Windows 7, XP, Vista, Linux
