End of Life

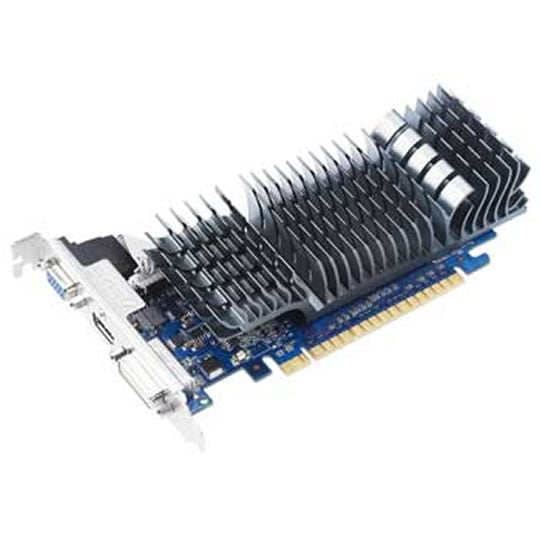

Asus NVIDIA GT 520 Silent Graphics Card - 1GB
ENGT520 SILENT/DI/1GD3(LP) - 1GB Asus GT 520 Silent, 40nm, 1200MHz GDDR3, GPU 810MHz, Shader 1620MHz, 48 Cores, D-Sub/ DVI/ HDMI
The latest addition to the Nvidia 5xx series graphics cards is the GT520 fully equipped with the most advanced 3D features including DirectX 11 and Physx bringing new levels of realism to 3D applications plus improved processing power thanks to the embedded CUDA technology which utilises the GPU cores to accelerate the most demanding system tasks, all designed to maximise your home theatre experience.
The Asus ENGT520 SILENT/DI/1GD3(LP) Provides fully integrated support for 1.3a HDMI allowing for outstandingly deep video colour and 7.1 digital surround sound, essential for any future proof home theatre system. The included low profile bracket ensures perfect compatibility with even the smallest mini ITX form factor and to finish off the ENGT520 SILENT/DI/1GD3(LP) is equipped with a fully passive heat-sink producing a 0db sound level even at peak operation, perfect for all usage scenarios in today's performance demanding era.
• Passive Heatsink: 0db operation for silent running.
• Low Profile Bracket Bundled: Ensures perfect compatibility with even the smallest mini ITX form factor.
• Gamer OSD: Real-time overclocking, benchmarking and video capturing in any PC game!
• Splendid: Watching movies on PC is as good as on Top-of-the-line consumer television.
• Microsoft Windows 7 Support: Enable PC users to enjoy an advanced computing experience.
• DirectX 11 Ready: Bring new levels of visual realism to gaming.
• NVIDIA PhysX ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
• GeForce® CUDA Support: Unlocks the power of GPU’s processor cores to accelerate the most demanding system tasks.
|Manufacturer:||Asus||Interface:||PCIe 2.0 (x16)
|Chipset:||GT 520 ||Connectivity:||1 x D-Sub
1 x Dual Link DVI-I
1 x HDMI
|Edition:||Silent ||Maximum Digital Resolution:||
|Chipset Features:||DirectCompute Support|
Microsoft DirectX 11
Microsoft Windows 7 support
NVIDIA CUDA Technology
NVIDIA PhysX Ready
Shader Model 5.0
Unified Driver Architecture
|Maximum VGA Resolution:||
|Manufacturing process:||40 nm||SLI:||
|Cores:||48 ||Multi Monitor:||
|Core Clock:||810 MHz||Width:||Dual Slot
|Shader Clock:||1620 MHz||Low Profile Compatible:||Yes
|Memory:||1GB ||Low Profile Support:||Yes - Bracket Included
|Memory Bit Rate:||64 Bit||Package Type:||Retail
|Memory Type:||GDDR3 ||Maximum GPU Power:||29W
|Memory Clock:||1200 MHz||Maximum GPU Temperature:||102 °C
