Thermalright Fluid Dynamic Bearing Fan 120mm
End Of Life
Thermalright Fluid Dynamic Bearing Fan 120mm
Scan code: LN34777 Manufacturer code: TR FDB-800
End Of Life

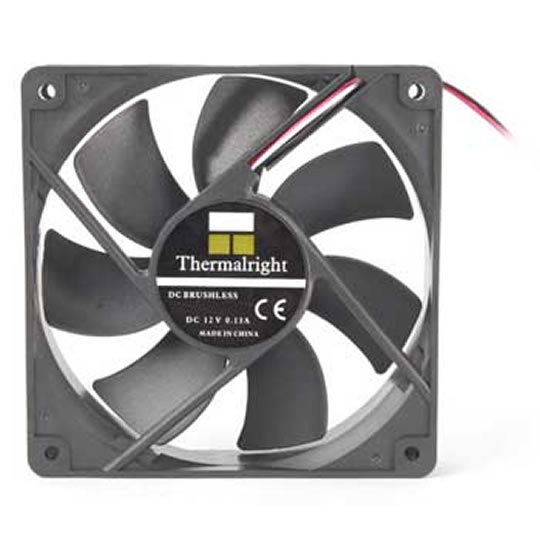

Thermalright Fluid Dynamic Bearing Fan 120mm : image 1
  • Thumbnail 1 : Thermalright Fluid Dynamic Bearing Fan 120mm
End Of Life

Thermalright Fluid Dynamic Bearing Fan 120mm

120mm Thermalright Fluid Dynamic Bearing Fan at max. 800RPM
MORE INFO
MORE INFO

Scan code: LN34777 Manufacturer code: TR FDB-800
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

Product Overview • Japanese imported Fluid Dynamic Bearing Technology to reduced noise and vibration. Work best with Thermalright’s heatsinks for that perfect balance of performance and silence.
• 60,000 hours under normal room temperature. Longer life expectancy than other leading brands.
• High rate of Air Flow even under low RPM.
• 7V of power usage; can be adjusted via fan control device.
• Four speed variation to choose from (800 RPM ,1,000 RPM , 1,300 RPM , 1,600 RPM, and 2,000 RPM). Features • Dimension : 120*120*25mm
• Bearing Type : FDB (Fluid Dynamic Bearing)
• Rated Voltage : 12.0 VDC
• Operating Voltage Range: 10.8~13.2 VDC
• Rated Current: 0.130 Amp +10% MAX /0.11AMP
• Rated Power: 1.56 watt
• Rated Speed: 800 RPM ± 10%
• Airflow: 30.5 CFM
• Noise Level: 13.1 dB/A
• Net weight: 156 GRAMS
• Connector: 3 pin
