Product Overview
Please note: This is a Barebone PC and requires an M.2 SSD and SODIMM DDR4 memory to be purchased separately.

The Ultimate Mini Creator PC

The MAGNUS EN52060V is built for creators and hardware enthusiasts and is empowered by a 9th Gen Intel Core™ i5 processor, NVIDIA GeForce RTX™ graphics and premium connectivity. It has been re-engineered with breathability that strikes the perfect balance between power and thermals for robust performance. Tackle demanding creative workloads, boost your productivity, and power through any experience in the most compact form factor.

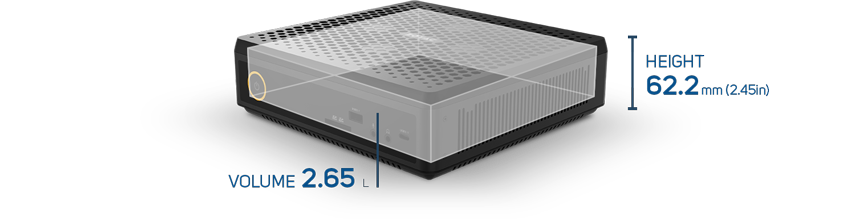

Smaller Size, Bigger Ideas

MAGNUS comes packed with more power and speed than ever, with performance on par with even some desktops, leaving more room for your creativity.


Speed for Creativity

Enable the creative juices to flow faster, from thought to draft with a 9th Generation Intel Core™ processor. Get responsive performance as creativity doesn't wait. Enjoy up to 8K resolution, 360 degree experiences, run VR applications or handle heavy rendering, computing, and multitasking. Edit photos and videos seamlessly. Move between windows quickly. Stream 4K UHD videos, power virtual reality, and play the most demanding games.

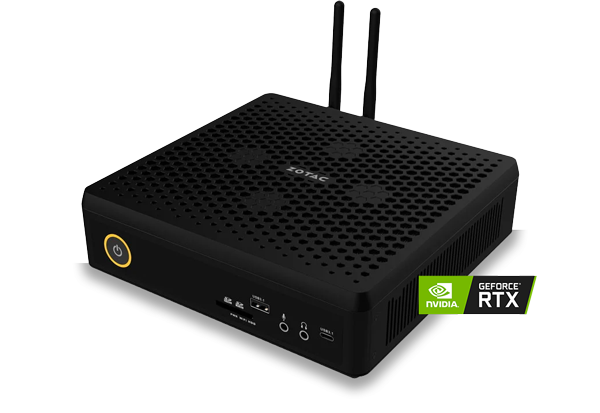

Next-Gen Immersion

Take advantage of the graphics horsepower from an NVIDIA GeForce RTX™ 20-Series graphics card and GPU accelerate. Its Ray-Tracing technology allows you to create beautiful scenes with accurate lighting, shadows, and reflections rendered faster than you thought possible. Let AI handle the time-consuming repetitive tasks with accelerated up-resing, photo enhancements, colour matching, face tagging, and style transfer. Stay on the cutting edge. RTX decodes and debayers up to 8K RED video in real-time with REDCINE-X PRO.


Fast Networking

Armed with Killer WIFI 6 technology and Killer E3000 Gigabit Ethernet, MAGNUS delivers the fastest and most reliable connection on both wired and wireless in which online games, videos and audio take priority with Advanced Stream Detect 2.0 Technology. Killer Gamefast™ Technology also frees up to 10% of your CPU cycles and 20% of your memory for lower latency in gaming.

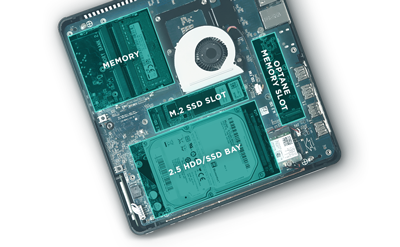

Easy Upgrades

Designed with quick access and quick upgrades with support for up to 32GB DDR4 Memory, Intel® Optane™ Memory and Dual Storage Capable (2.5 inch and M.2).

Features
Processor: Intel Core i5-9300H (quad-core 2.4 GHz, up to 4.1 GHz).
Memory Slots: 2 x DDR4-2666/2400 SODIMM Slots (up to 32GB) and 1x M.2 PCIEx4 / SATA SSD slot (2242,2280), Intel Optane memory slot (2242, 2280).
Graphics Engine: Supported by the powerful NVIDIA GeForce RTX 2060 6GB GDDR6 192-bit, accelerate creation from high quality prints to complex animations.
Video Editing: Work with up to 8K RED RAW files without pre-caching or generating proxies.
Photography: Adjust and output high-resolution images faster than you thought possible.
3D Animation: Smooth and fluid 3D modeling in your favourite apps with fast 3D rasterisation.
Specifications
Edition MAGNUS EN52060V
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i5
CPU Model i5-9300H
Architecture Coffee Lake
Manufacturing Process
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 2.4 GHz
Burst Frequency 4.10 GHz
CPU Cache 8MB
CPU Cooler Passive Heatsink
Max. TDP
CPU Socket N/A
Chipset Intel
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included 32GB
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU Yes
Discrete GPU Chipset NVIDIA GeForce® RTX 20 Series
GPU Architecture Turing
GPU Manufacturing Process
GPU Cores/Streams/Execution Units 1920 CUDA® Cores
GPU Tensor Cores N/A
Base GPU Speed 1365 MHz
Max. GPU Speed 1680 MHz
GPU Memory Size 6GB
GPU Memory Type GDDR6
GPU Memory Clock
GPU Memory Bus 192 Bit
Discrete GPU Cooler Air Cooled
Multi-GPU Configuration No
Max. GPU Resolution 7680x4320 (8K UHD)
Graphics Interface PCIe 3.0 (x16)
Expansion Slots 1 x M.2, 22-42/80, PCIe/SATA
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal (SATA3)
Backplane I/O
RAID Support
Internal I/O
  • 1 x Bluetooth
  • 1 x Power Button with LED
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules

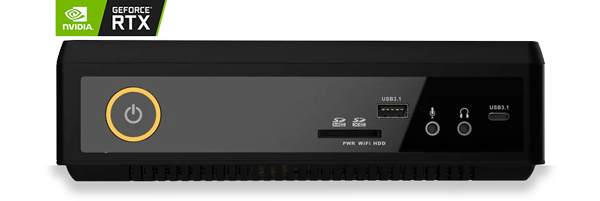

Front Panel
  • 1 x 3-in-1 SD/SDHC/SDXC Card Reader
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button with LED
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C

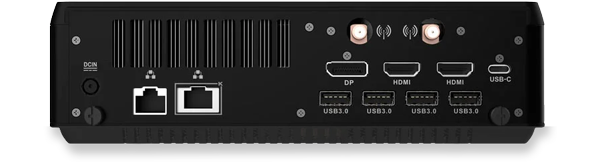

Back Panel
  • 1 x DC-In Jack
  • 1 x DisplayPort
  • 2 x HDMI
  • 2 x RJ-45
  • 4 x USB 3.0
  • 1 x USB Type-C
  • 2 x WiFi Antenna connectors
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 330W W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 210 x 62.2 x 203mm (mm WxHxD)
Weight
Includes
  • 1 x CPU Heatsink/s
  • 1 x Quick Start Guide
  • 1 x UK Power Cable
  • 1 x USB Flash Drive with Drivers
  • 1 x Warranty Card
  • 2 x Wi-Fi Antenna
