Scan code: LN117282 Manufacturer code: ZBOX-ECM53060C-BE

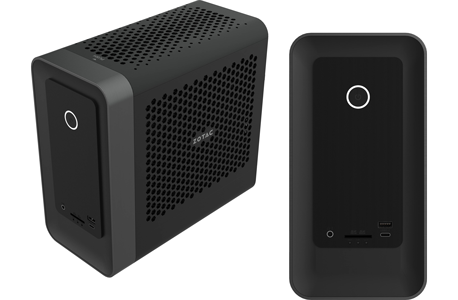

ZOTAC ZBOX Intel Core i5 RTX 3060 Barebone Compact Mini PC Kit

ZOTAC ZBOX, ECM53060C-BE, Intel Core i5-10400, DDR4 SO-DIMM, 2x M.2 + 1x 2.5" Bay, 12GB GeForce RTX 3060, Barebones

Thumbnail 1 : ZOTAC ZBOX Intel Core i5 RTX 3060 Barebone Compact Mini PC Kit Thumbnail 2 : ZOTAC ZBOX Intel Core i5 RTX 3060 Barebone Compact Mini PC Kit Thumbnail 3 : ZOTAC ZBOX Intel Core i5 RTX 3060 Barebone Compact Mini PC Kit Thumbnail 4 : ZOTAC ZBOX Intel Core i5 RTX 3060 Barebone Compact Mini PC Kit
Scan code: LN117282 Manufacturer code: ZBOX-ECM53060C-BE
RRP: £1,129.99
£1,079.99Item overdue since 20 September 2021
Pre order
From £29.50 / month (APR 14.9%)
Monthly Payment: £96.96
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,079.99
Total inc. interest: £1,163.43
Monthly Payment: £51.84
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,079.99
Total inc. interest: £1,244.10
Monthly Payment: £36.90
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,079.99
Total inc. interest: £1,328.18
Monthly Payment: £29.50
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,079.99
Total inc. interest: £1,415.68
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £26.97 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Zotac MAGNUS ONE Barebone Mini-PC with GeForce RTX 3060 Graphics

ASUS RX6800 XT

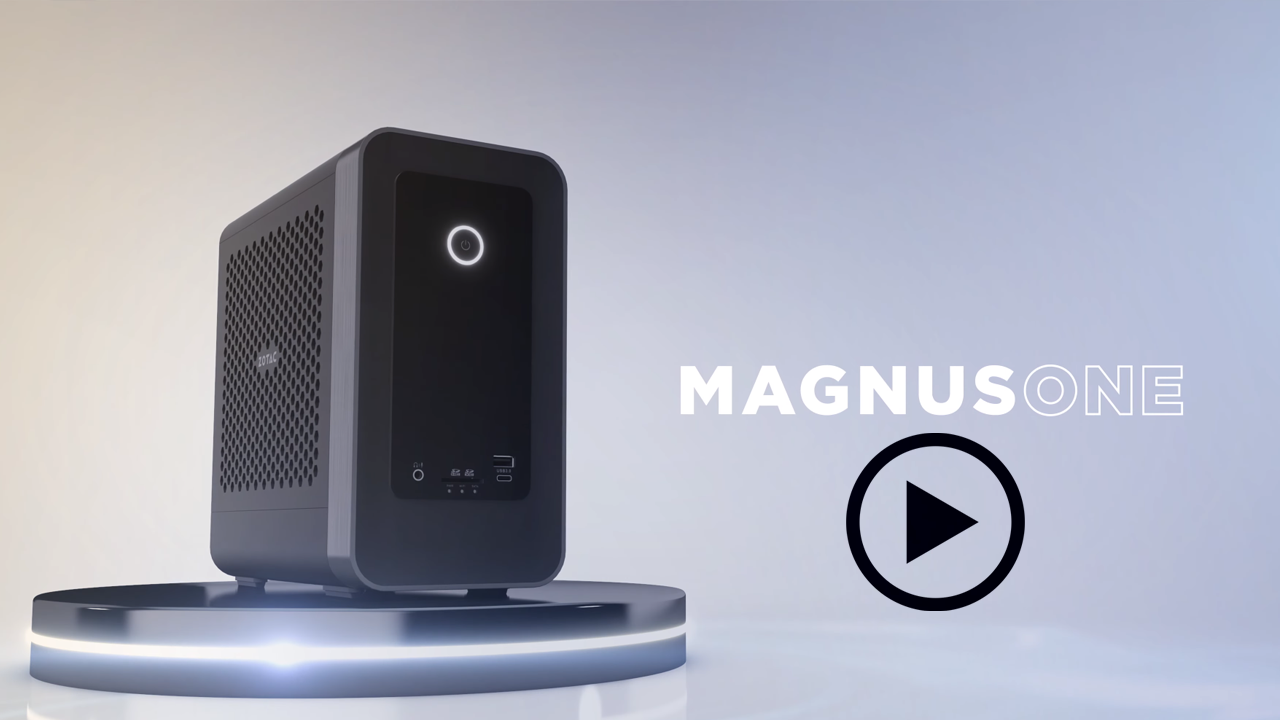

Small Form Factor Performance Empower everything in one incredibly powerful, versatile Mini PC. MAGNUS ONE boasts the ultimate performance in an all-new and compact design. It is the first Mini PC taking advantage of the ZOTAC GAMING GeForce RTX™ 3060 graphics card for high-fidelity ray-traced graphics and cutting-edge AI features with DLSS. Paired with a 10th Gen Intel® Core™ i5 processor, upgradable memory and storage support, full-range connectivity options with Killer networking, MAGNUS ONE has the do-it-all capability to deliver the best experience for daily tasks, gaming, entertainment, content creation and business.

Intel Core i5-10400Processor

GeForce RTX 3060Graphics

2666 MHzMemory Speed

64GBMaximum Memory Capacity

A Powerhouse Pairing

back

Responsive ProcessingThis MAGNUS ONE features a 10th generation intel Core i5 processor, boasting 6 cores and 12 threads with max clock speeds of up to 4.3GHz giving you more than enough power to blaze through your daily tasks, creating your media or even playing your games.

back

Next-Gen FidelityThe ZOTAC GAMING GeForce RTX™ 3060 desktop graphics card with 12GB of high speed GDDR6 memory is powered by the NVIDIA Ampere architecture and pushes the MAGNUS ONE to a whole new level of performance. Experience faster performance over previous-generation GPUs and take in the life-like and smooth visuals with dynamic lighting with the 2nd generation RT cores, Tensor cores and AI Ray-Tracing .

Seamless Connectivity

down

Wifi
6

up

Gigabit
Ethernet

up

Killer 2.5Gbps Ethernet

down

Bluetooth
5

Multiple Connection Options The MAGNUS ONE delivers a fast and reliable connection on wireless or wired with Killer hardware. Connect wirelessly with the latest WiFi 6, pair devices using the latest Bluetooth 5, or plug into either the fast Gigabit Ethernet or faster Killer 2.5Gbps Ethernet port.

Simple Upgradeability

back

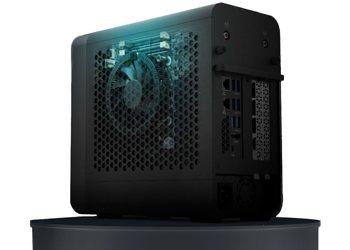

The Fast laneThe all-new MAGNUS ONE continues the easy upgradeability functionality. Unlock two screws at the rear, and simply remove the top lid and side panels to gain access to the internals to upgrade the SO-DIMM memory, M.2 SSD, or 2.5” HDD/SSD. Boasting more bandwidth and newer technologies the MAGNUS ONE can support 2666 MHz DDR4 memory up to a total capacity of 64GB and it also supports PCIe 4.0 storage.

Please Note

This is a barebones system, featuring only the processor and graphics card, memory and storage must be purchased separately.

Maximise Your Viewing Pleasure

4K Recording

HDMI 2.1Fluid viewing with 4K resolution at 120 Hz for life-like motion.

DisplayPort 1.4aFuture display ready for 4K and beyond… up to a vision clearing 8K resolution.

G-SYNC Ready Pair with a compatible display for ultra-smooth gameplay.

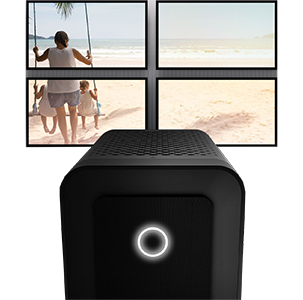

Upto 4 displaysSee and show more with support for up to 4 displays.

Would You Like to See More?

Specifications
Edition ECM53060C-BE
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i5
CPU Model Intel Core i5-10400
Architecture Comet Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core 6 Core
No. of Threads 12
Clock Speed 2.9 GHz
Burst Frequency 4.3 GHz
CPU Cache 12MB
CPU Cooler
Max. TDP 65 W
CPU Socket 1200
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2666
Max. Memory Capacity 64GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU Yes
Discrete GPU Chipset GeForce RTX 3060
GPU Architecture Ampere
GPU Manufacturing Process 8 nm
GPU Cores/Streams/Execution Units 3584
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size 12GB
GPU Memory Type GDDR6
GPU Memory Clock
GPU Memory Bus 192 Bit
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 7680x4320 @ 60Hz (8K UHD)
Graphics Interface PCIe 4.0 (x16)
Expansion Slots
  • 1 x M.2, 22-42/80, PCIe/SATA
  • 1 x SATA 6GB/s
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal (SATA3)
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type 802.11ax WiFi LAN
Network Chip/Modules
Front Panel
  • 1 x Card Reader
  • 1 x USB 3.0
  • 1 x USB 3.0 Type-C
Back Panel
  • 3 x DisplayPort 1.4
  • 1 x HDMI 1.4
  • 1 x HDMI 2.1
  • 2 x USB 3.0
  • 4 x USB 3.1 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 500 W
PSU Efficiency Rating 80 PLUS Platinum
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 265.5 x 126 x 249 (mm WxHxD)
Weight
Includes
  • 1 x Quick Start Guide
  • 1 x UK Power Cable
  • 1 x USB Flash Drive with Drivers
  • 1 x Warranty Card
  • 2 x Wi-Fi Antenna
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN117282
Model Number ZBOX-ECM53060C-BE
GTIN 4895173623066
