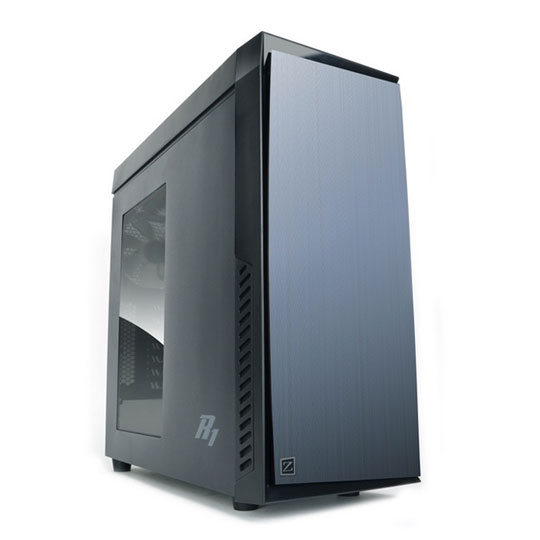

Zalman R1 Mid Tower Case

Zalman R1 Black Mid Tower Case with Side Window w/o PSU

Zalman
Scan code: LN58421 Manufacturer code: R1 Request call
£39.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Zalman R1 features maximized cooling performance with 3 fans that are preinstalled. User can installed up to 5 fans maximum. Soundproof pad is applied onto the inner part of the frontal door, which reduced noises produced by the PC. Features • Up to 5 total system fan mount locations
• Bottom vent exclusively for power supply
• Dust filters on the front and bottom
• Internal chassis painted black
• Holes provided for water cooling system
• Spacious interior up to 360mm long graphic card
Specifications
Specifications
Case Edition R1
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • Micro ATX
  • Mini ITX
Material
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 1 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 1 x 3.5" External
  • 4 x 3.5" Internal
  • 2 x 5.25" External
Expansion Slots 7
Fan Bays 5 x 120mm
Fans Included 3 x 120mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 160 mm
Max VGA Card Length 360 mm
Colour Black
Dimensions 192 x 465 x 450 (WxHxD mm)
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Rated 1.5 out of 5 by 2 reviewers.
Rated 1 out of 5 by DO NOT BUY THIS CASE! The title may seem harsh, however I must warn, this case has a huge design flaw... if there are two fans installed in the front of the case, the front panel of the case, behind the door, can no longer fit as the clip at the top is blocked, meaning it is left to flap about and fall out every time you open the front door panel. Other than that, the build quality, space and features are very good value for money and the case is very quiet if you attach some soundproofing to the side panels (as they tend to rattle a bit). Despite this, you would be stupid to but it, as there are far more cases out there for the same money that actually work! 23 September 2014
Rated 2 out of 5 by Cheap case with some poor design issues. For £32 it is an ok case, but knowing what I do now I would rather have spent more on a Fractal R4 or similar. The case was purchased for my second PC which is why I thought I would try a cheaper case. The whole case has a mass similar to both panels on my Fractal ARC MIDI. This should give you an idea of the thin metal used on the Zalman R1. That being said it does feel somewhat sturdy. The inside is easy to work on and no sharp edges, except for the break away PCI covers. Cable routing can look tidy with some effort. There are a few glaring issues: 1. The top fan vent cover is impossible to remove from the outside so one has to ask why the handle? The only way to remove it is to push on the round contact points from inside the case, this releases the vent cover quite easily. 2. There are 2 x 120mm supports for fans in the front, however if the front top position is used the front filter wont fit as the retention clip bumps in to the fan! 3. The paint job on the front panel looks not too bad, however be warned...it is a very thin paint job. I have already managed to scratch it which reveals an ugly greyish plastic underneath. It scratches very easily. You could probably take the paint of with just a thumb nail and moderate pressure. 4. My case had a faint scratch about 6cm long on the top side plastic brand new out of the box. The brown box had no sign of impact so this happened before it was boxed up. The case also looks better in the pictures I have seen online than in real life. If you are after a cheap case I would look elsewhere. Better quality cases look nicer for longer. 04 September 2014
