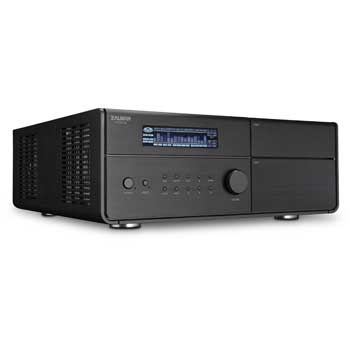

Zalman HD503 Home Theatre PC Case, Black Desktop with DFSTN LCD & Remote

Zalman HD503 Home Theatre PC Case, Black Desktop with DFSTN LCD & Remote

Thumbnail 1 : Zalman HD503 Home Theatre PC Case, Black Desktop with DFSTN LCD & Remote
Zalman HD503 Home Theatre PC Case, Black Desktop with DFSTN LCD & Remote : image 1
Scan code: LN30088 Manufacturer code: HD503
3xs Approved
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview The HD500 series HTPC cases not only look great but they also offer excellent cooling for a HTPC chassis. The minimalist styling, brushed aluminium finish and the rounded corners give these cases a distinctive look. The optical drive, I/O ports and a hot-swappable HDD are all hidden behind front aluminium flaps to maintain the elegant finish.

Spacious Interior for Easy Component Installation
The HD500 series can accommodate Micro ATX as well as Standard ATX motherboards. This makes it possible to install high performance components without having to worry if a large CPU cooler or graphics card will fit. The cases are compatible with coolers no taller than 125mm. Finally, with the HD500 series you can install long PSUs due to the extra space.

Side Ventilation for Intensified Cooling Performance
One of the down sides to HTPC case is the fact they can become quite warm due to the size of the chassis'. Zalman have helped to solve this problem by incorporating many ventilation holes. At the rear and the left side of the case you will find that there are two 80mm fans and 120mm fan. These fans are designed to extract the hot air generated inside the chassis. The intake fan is also 120mm which blows the cooler air from outside the chassis over the HDDs. PLEASE NOTE: The case is only supplied with two 80mm fans. The 120mm fans need to be purchased separately, if required.

Tool-Free HDD Installation
Up to three 3.5" hard drives can be installed into the HD500 series, without any tools! This provides easy access to any of the drives. Also, each drive bay features anti-vibration rubber dampers - to help keep the noise away.

Hot-swappable HDD Support
Both the HD501 and the 503 have the facility for one hot-swappable 3.5" hard drive to be installed. This hard drive is installed into a 5.25" drive bay rather than a 3.5". As you would expect the HDD is mounted on anti-vibrational rubber screws. The hot-swappable HDD is accessed by lowering the bottom flap.

SSD (Solid State Drive) Compatible
With the cost price of solid state drives starting to lower, they are now becoming more and more common in PCs due to the excellent performance they offer. Zalman have noticed this and therefore have supplied the HD500 series with a bracket that will allow for two SSDs to be installed into one 3.5" drive bay.

Convenient Front I/O Ports
For convenience Zalman have also made available at the front of the case several common ports. Two USB, one e-SATA, one headphone and one microphone port are all available. These ports are hidden behind the same flap that hides the hot-swappable HDD.

Integrated DFSTN LCD for Users Convenience - HD503 only
The HD503 features an DFSTN LCD on the front panel which has a wide viewing angle and displays various multimedia information for the users convenience. The 503 is also supplied with remote control that is Vista compatible (Windows 7 support available soon). This allows control of the system from the comfort of your chair! Features • Sleek minimalist design
• Side ventilation for increased cooling
• Tool free anti-vibration HDD installation
• Hot-swappable HDD support
• Accommodates up to two SSDs
• Convenient front I/O ports
• Integrated LCD display *
• Supplied with remote control *
* HD503 only
