Yolobox Portable Live Stream Studio
YoloLiv YoloBox Portable Live Streaming Studio, All-in-One Encoder/Switcher/Recorder/Monitor, 1080p60, WiFi/4G LTE
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
YoloLiv - 'YoloBox Portable Live Stream Studio'

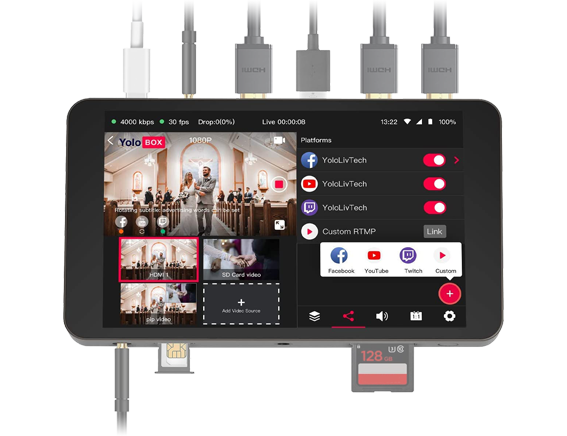

Encoder │ Switcher │ Monitor │ Recorder YoloBox is a portable all in one encoder, switcher, monitor and recorder, allowing users to live stream full HD multi camera content from anywhere, to anywhere. With multiple video modes for multi-camera production including picture in picture, graphical overlays, sports modes, watermarks and many more. Reach your audience by streaming to multiple platforms at the same time with the YoloBox.
SD Card
3-hours+
Line-In Mic
headphone out
1080p/i
HDMI
Ethernet
Shoe Mount
SIM Card/
USB Modem

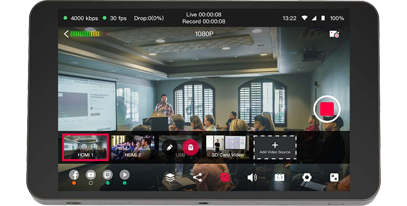

Touchscreen All-in-One Solution
Total TouchScreen ControlNo Computer Required, No Professional Production Team Required, No Dedicated Workstation Required, YoloBox is the most portable and easiest to use multi camera live production studio with encoding, switching, monitoring, recording features entirely self contained, all built in 1, complete system.

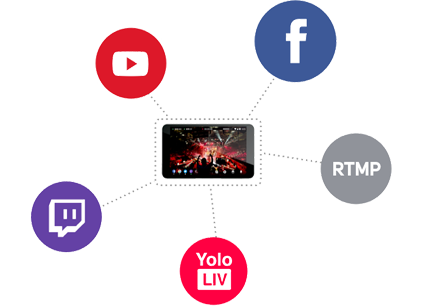

Stream to Major Platforms
Cross Platform StreamingStream your live event to three destinations simultaneously, seamless integration with major platforms. compatible on Facebook, YouTube, TwitterLive and other RTMP supported websites without the need for a third party service.

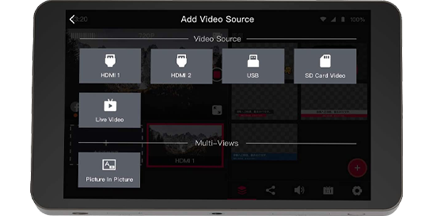

Up to 5 Video Sources
Multi Camera CaptureSupports up to 3 physical cameras and total of 5 video sources, that includes 2 HDMI Inputs(both supports up to 1080P), 1 USB Input(up to 1080P30), 1 local SD card video & 1 RTMP Pull video(live stream from distant location for remote production), in total of 5 video sources.
WiFi & 4G LTE Connectivity

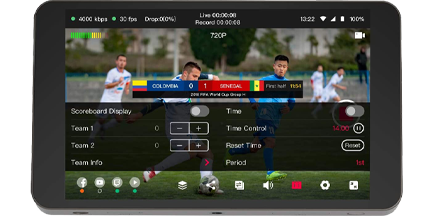

Stream from AnywhereWiFi, Ethernet and 4G LTE as internet options, plus the built-in battery that last 3hours, makes outdoor/mobile streaming, IRL streaming not just possible but extremely simple；Plus Real time HDMI Output, Independent Audio In and Audio Out ports, with Built In Watermark, Graphics, Overlay, Picture In Picture, Scoreboard, etc, various features, additional features are still being added every two weeks.
The Tech Spec
| Features | Specification | Ports | 2x HDMI IN, HDMI OUT, USB Video Input, Ethernet, Audio In, Audio Out, SIM Slot, Hotshoe, SD Card slot, USB Type-C, Power Button |
|---|---|
| Dimensions | 185 x 19.5 x 107mm |
| Weight | 480g |
| Video Encoded Format： | H.264 |
| Audio Encoded Format | AAC (48k) |
| Video Recorded Format | MP4 |
| Audio Input Format | 32kHz, 44.1kHz, 48kHz, 16-bit |
| Video Input Format | 1080i/ 720p/ 1080p |
| Video Recorded Resolution | Up to 1080p：60fps |
| Live Broadcast Resolution | 540P/ 720P/ 1080P |
| Video Storage | SD Card, Up to 128GB |
| WiFi | 2.4G/5G, Support 802.11a/b/g/n/ac |
| 4G Network | LTE-FDD B2/4/5/7/12/13/17/25/26，LTE-TDD B41 |
| SIM Card Size | Standard SIM Card |
| Power Interface | Type C, Quick Charge 3.0 |
| Battery Capacity | 3.7V/5700mAh |
| Network Protocol | RTMP |
| Operating Temperature | -10℃ - 40℃ |
| Storage Temperature | 5℃ - 40℃ |
