Game Streaming Audio Mixer

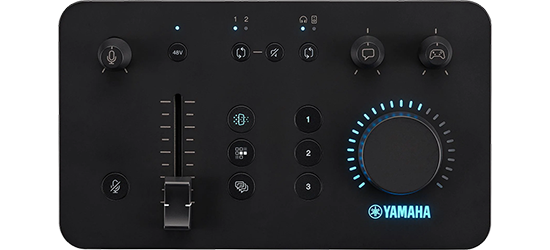

Yamaha - ZG01

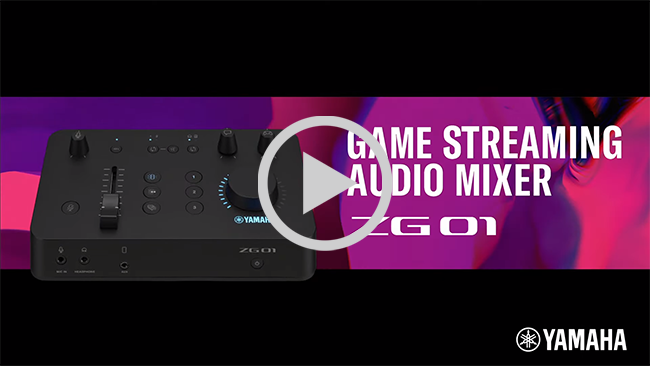

Yamaha ZG01

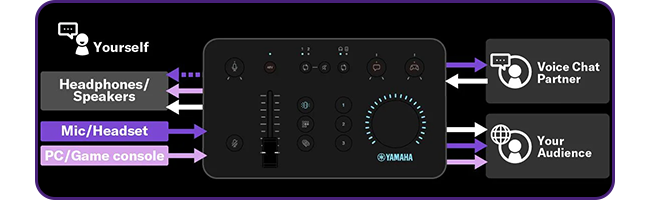

Make It Your WorldThe Yahama ZG01 is their first audio mixer designed especially for game voice chat and game streaming. This mixer enables you to tailor the game audio, your voice, and the voice of the person you are talking with to your own playback environment, whilst simultaneously providing the perfect audio signal to both your chat partner and the streaming audience.

The ZG01 also features easy audio operation with carefully selected physical controls, a range of DSP effects, such as a chat voice changer and authentic surround sound processing through stereo headphones, along with 2-in/1-out HDMI ports that also work as an HDMI switcher and conversion adapter. The ZG01 provides a higher level of immersive game sound and a more comfortable gaming environment with hands on controls specifically made for gaming, voice chat, as well as streaming and to provide simple, intuitive management of all your audio signals without sacrificing any gaming experience.

At A Glance • Intuitive volume control designed for gamer and game streamer
• Flexible volume control with dedicated drivers recognized by Windows/Mac as virtual multiple devices
• HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
• MIC input for condenser mics with +48 phantom power and mute button
• Effect button x 6 (3 for voice chat effects, 3 for game sound effects)
• High resolution (24-bit, 48 kHz) USB audio recording and playback

Ultimate Control For Gaming & Game Streaming

ZG SURROUND

ZG SURROUNDYamaha's new proprietary "ViReal™ technologies for headphones" has been optimized further for gaming to enhance your stereo headphones' 3D sound quality. Enjoy powerful game sound with unmatched realism.

FOCUS MODE/EQ

FOCUS MODE/EQSuppress the sound of your own character's voice or emphasize environmental sounds of the game audio using Focus Mode/EQ. These settings can be configured to suit a variety of game titles, scenes, and playing styles. For example, you can focus on the sound of your opponent's footsteps for a more realistic experience.

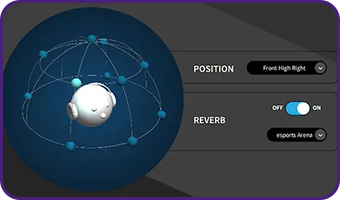

3D CHAT SPACE

3D CHAT SPACEWith 3D CHAT SPACE you will feel as if you were playing a game in the same room with your friends. By placing the other party's voice in a virtual 3D-space, it eliminates overlap with game audio and voice chat, so you can hear all your audio signals loud and clear.

Share Your Surround Sound Experience

Surround Sound

Immersive AuthenticityYour multi-channel game audio is converted and processed by the ZG to create a surround sound experience that you can stream to your listeners.

Even if they are not ZG users, as long as they listen with stereo headphones, you can deliver the same immersive authenticity to your audience.

Enhance Your Gaming Experience

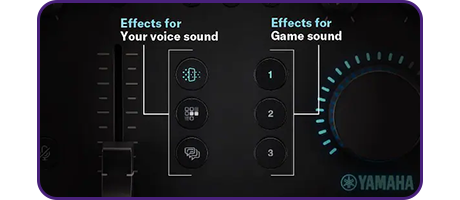

Zero-Latency DSP

Zero-Latency DSPCustomize your voice and game audio using zero-latency DSP processing to adapt to various virtual environments during gameplay.

- For your voice: Voice changer, Transceiver/Radio voice effect, masking beep sound, and 1-Touch Echo

- For game audio: ZG SURROUND and FOCUS MODE/EQ enable sound customization to suit your taste and gaming scene

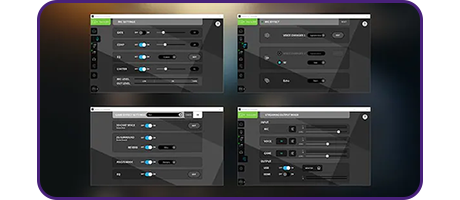

"ZG Controller" Dedicated Software

ZG Controller

detailed settingsThe ZG01's dedicated software application (Windows/Mac), ZG Controller, allows you to select and edit detailed volume and effect settings and assign them to presets for your game audio and headphones.

These presets can also be exported and imported as configuration files that will let share them with friends that also use ZG consoles.

Assign Individual Signals To Multiple Client Software Applications

Yamaha ZG01

ZG dedicated driverAfter installing the dedicated driver in your computer (Windows/Mac), the ZG01 is recognized as two virtual devices, and can send and receive two audio channels for different uses. For example, you can set up a voice chat application to send only your voice audio, along with a streaming application to broadcast your game and voice chat audio.

Input to PCStreaming: Use this channel to send the game and voice chat audio input from the ZG01 to your computer. Assign this channel to the audio input of the streaming application on your computer.

Voice: Use this channel for sending your voice input from your mic or headset to your computer. Assign this channel to the audio input of the voice chat application running on your computer.

Output from PCSpeakers: This channel is for sending audio from your computer to the ZG. If you are playing PC games, assign this channel as the audio output. The game control on the ZG01 can be used as a game volume controller.

Voice: This is the channel for voice chat. When using a voice chat application running on your computer, assign this channel to the audio output of it. The voice chat knob on the ZG01 can be used as a voice chat volume controller.

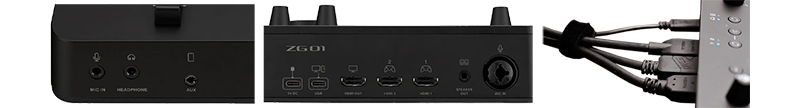

Practical & Comprehensive Connectivity

Yamaha ZG01

extensive gaming sound environmentThe ZG01 features a HDMI port for connecting consumer game consoles, along with other ports needed for building a more extensive gaming sound environment. The built in features allow you to remove the often complicated and cumbersome wiring or adapters that peripheral devices often use.

HDMI portThe 2-in/1-out HDMI ports allow direct connection to consumer game consoles, and can also function as a 2 input HDMI switcher and HDMI conversion adapter with audio extraction. (Audio out: 2ch 24-bit/48kHz fixed, Video signal: Pass-through)

Flexible audio input & outputThe audio I/O jack offers flexibility for connecting the microphone, headphones, headset and desktop speakers of your choice.

USB-C x 2USB2.0 ensures stable signal transfer and power supply.

Integrated terminal ports on the backAll connections that are rarely changed are found on the rear panel, allowing for smart, unobtrusive wiring.

Yamaha Game Streaming Audio Mixer: ZG01

The Tech Spec

Features Specifications
Input Channels Microphone: 1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously
Smartphone: 1 - 4-pole mini input/output (TRRS)
HDMI: 1 - Switchable input HDMI 1 or HDMI 2 by button *No video capture function
USB: 2 - Virtual devices (Voice, Streaming)
Output Channels PHONES: 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones)
Smartphone: 1 - 4-pole mini input/output (TRRS)
MONITOR OUT: 1 - Stereo mini (Speaker out)
HDMI: 1 - Audio out: 2ch 24-bit/48kHz fixed, Video signal: Pass-through
USB: 2 - Virtual devices (Voice, Speaker)
Functions MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3)
On-board processors DSP: ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects *Detail is operated on ZG Controller
USB Audio Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 1.5 A
Power requirements 5 V DC, 1.5 A
Power consumption Max. 7.5 W
Dimensions W: 195 mm (7.7")
H: 47.5 mm (1.9")
D: 110 mm (4.3")
Net weight 0.8 kg (1.8 lbs)
Included Accessories USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide
Others Operating Temperature: 0 to + 40 ℃
Specifications
Computer Interface Type USB 2.0 Type-C
Connections (Input)
  • 1 x 3.5mm (1/8") Stereo Mini Jack
  • 1 x 6.35mm (1/4") TRS - Insert
  • 1 x HDMI
  • 1 x XLR
Mic Preamps (Max) 1
Instrument Inputs (Max)
Phantom Power Yes
Sample Rate (Max)
Bit Resolution
iPad Compatible No
Connections (Output)
  • 1 x 3.5mm (1/8") Stereo Mini Jack
  • 1 x 6.35mm (1/4") TRS - Insert
  • 1 x HDMI
Dimensions (mm) 195 x 47.5 x 110 WxHxD
DSP Processing No
