Yamaha - MS101-4 - Powered Monitor Speakers
Yamaha - MS101-4, 30W Powered Monitor Speakers, 77 Hz – 20 kHz, 115 dB Max SPL
- By DPD On 4th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Yamaha - MS101-4
Powered Monitor Speakers
compact monitoring in a simple formThe Yamaha MS101-4 is a desktop utility powered monitor that offers portability in a compact design that is simple but includes comprehensive functions for outstanding usability. The MS101-4 comes with a 3/8-16 threaded female mounting for direct attachment to a Euro microphone stand, optional accessories can also be added for use in a wide range of applications.

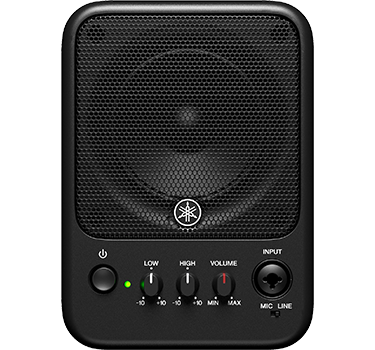

With the controls (power switch, volume and tone controls) and the combo jack input on the lower front panel, the MS101-4 is intuitive and easy to operate. The robust metal grill offers total protection for the four-inch cone driver, whilst the rear panel is equipped with one stereo mini and two TRS Phone input connectors, and an AC inlet for excellent portability. The bass reflex port is also found on the rear surface, resulting in an even more compact chassis.
115 dBMax SPL
77 Hz – 20 kHzFrequency Range
30 WPower
Amazing Features
• 30W of amplifier power provides clean, high output sound
• Redesigned enclosure for an even lower profile
• Combo Input jack accepts both XLR and 1/4" connectors
• Directly mountable on Euro microphone stands
High-Quality Monitoring Anywhere
Compact & ConvenientYamaha's smallest powered monitor speaker compatible with both line and mic inputs, the MS101-4 powered monitor speaker give you the flexibility needed for temporary or permanent use in applications requiring simple, compact monitors.

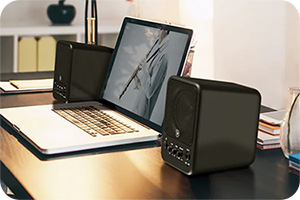

AV Monitoring

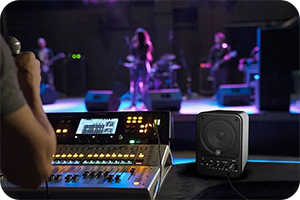

Communications between FOH & Monitor engineers

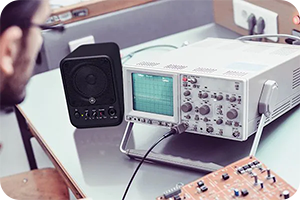

Device Inspection Monitoring

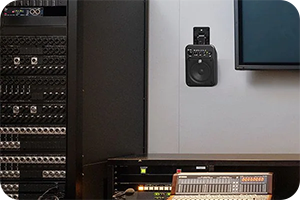

Facility Audio Management
The Tech Specs
| Features | Specification | Speaker type | Full range Powered Speaker, Bass-reflex Type |
|---|---|
| Frequency range (-10dB) | 77 Hz–20 kHz |
| Maximum output level (1m; on axis) | 115 dB SPL |
| Components | LF-HF: 4" Cone, 1" Voice coil, Ferrite magnet |
| Dimensions | W: 142 mm H: 196 mm D: 187 mm |
| Net weight | 2.1 kg (4.6 lbs) |
| Flying and mounting hardware | Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw) |
| Amplifier class | Class-D |
| Power rating | Dynamic: 30 W Continuous: 20 W |
| Cooling | Natural cooling (no fan) |
| I/O Connectors | Mic Input: [Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS) Line Out: 1 x Phone (TRS) AC: 1 x AC inlet |
| Input impedance | [Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ |
| Input sensitivity | [Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum) |
| Input Level | [Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level) |
| Others | Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER |
| Indicators | POWER (Green LED) |
| Power consumption | 1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W |
| Power requirements | 100 V - 240 V, 50/60 Hz |
| Options | Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210 |
