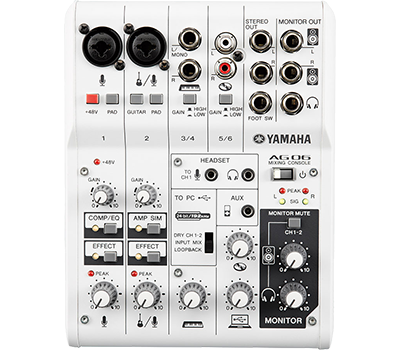

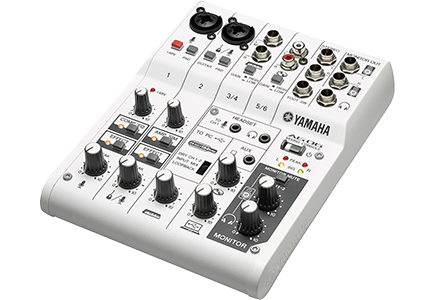

Yamaha - 'AG06'
Hybrid Mixing Console

Yamaha AG03

Multi-Purpose Mixer For Gamers, Vloggers & Music ProducersThe Yamaha AG06 combines mixing, DSP (digital effects) and audio interface technologies into a single easy-to-use unit, perfectly designed for podcasters, gamers and music producers. Compatible with Mac, Windows and iOS, and offers high-resolution (24-bit/192kHz) audio recording and playback, iOS compatibility with optional battery operation.

A main feature of the AG Series is the intuitive ‘TO PC’ switch that enables users to select which inputs are routed back to a computer or iOS device. Selecting Dry CH 1-2 allows the computer or iOS to record inputs 1 and 2, while the INPUT MIX switch sends all inputs to the computer or iOS device using USB for standard music production applications.

The LOOPBACK function in the TO PC section works perfectly for podcasters, routing all inputs to the stereo USB output, along with the USB input from the computer. Making mixing mics and instruments with music beds, sound effects or the audio from computers and iOS devices nice and simple.

at a glance • USB mixer and audio interface for webcasting, gaming, and music production
• Loopback mode combines all inputs and playback channels for easy internet streaming
• Outstanding audio quality, with D-PRE mic preamp and 24-bit/192kHz resolution
• Ready for your microphone, guitar, keyboard, and even your gaming headset
• Built-in DSP for EQ, compression, filtering, and reverb
• Includes Cubase Al downloadable version

High Resolution (192 / 24bit) Playback & Recording

Yamaha AG06

Hear Every DetailThe AG’s high-quality design allows for 192kHz / 24bit sound that can reproduce even the most detailed qualities of your original recordings. You can also bypass the internal Kernal mixer and reproduce the original sound faithfully using the ASIO compatible playback software.

The 192kHz/24bit sound quality is perfect for capturing the most natural reproduction of your analogue recordings when archiving your treasured collection.

Amazing Features

Change your PC, Mac or even your iPad into a virtual radio station and share your content worldwide. With an impressively simple setup process, the AG allows you to produce online content with high-resolution sound, either for real-time broadcast over digital streaming platforms, like USTREAM or YOUTUBE LIVE, or producing on-demand podcasts and videos. The AG06 will enhance your production to the next level with background music, sound effects, and a quality of sound that can’t be matched with a standard computer and headset set up.


LOOPBACK function for
internet live streaming
The LOOPBACK function allows live broadcasting of all the microphones, instruments and other audio sources together with background music from your PC, Mac or iPad.


D-PRE studio quality
mic preamp
The AG06 features the same premium mic preamps designed by Yamaha for high-end recording consoles, capturing most detailed characteristics of your vocal or instrumental performance.

flexible connectivity

AG06 features an input featuring phantom power along with a headset input, giving you the option to use a professional condenser mic, or conventional computer headset.

1-touch dsp

1-TOUCH COMP / EQ can add detail and focus to your sound with the simple click of a button. Just like an authentic radio broadcast, you can add reverb with the 1-TOUCH EFFECT or sound effects from an external device as you wish.

class compliant

Class Compliant mode
for iPad connection
AG works with Apple’s second generation iPad or later, allowing you to create high quality recording and playback using an iOS compatible music app such as Cubasis.

metal chassis

Durable, compact
metal chassis
The AG06 is made from a rugged metal enclosure and is easily portable so you can continue your content creation no matter where life takes you.

ag dsp

AG DSP Controller
for additional control
Using the multi-platform AG DSP Controller software app you can access, and edit the compressor, EQ, high-pass filter, reverb, and amp simulator parameters of your 1-TOUCH DSP. EASY mode gives you accurate and simple control, while EXPERT mode allows you more detailed adjustment of your parameters.

cubase ai

Cubase AI Music
Production Software
Cubase AI Digital Audio Workstation (DAW) software is included with your AG06, giving you a streamlined but powerful music production tool for making high-quality recordings instantly.

usb bus powered

USB bus powered
or mobile battery
The compact and durable AG is controlled using USB bus power or a mobile battery, giving you a powerful mobile setup that can easily fit into a backpack.

Cubasis LE Multitouch Sequencer For The iPad

cubase ipad

Easy Operation"Cubasis LE" is available in the App Store. To make it work, just connect your iPad to an AG06. Cubasis LE is the compact version of Steinberg’s streamlined, multitouch sequencer for the iPad, giving it the same look and feel of its bigger sibling, Cubasis.

Designed especially for quick and easy operation, Cubasis LE makes recording, editing and mixing easy. Cubasis LE places touch-intuitive production tools in your hands, offering you a new range of possibilities for your creativity.

The Tech Spec

Features Specification
Type Analogue
Channels 6
Computer Connectivity USB 2.0
Inputs - Mic Preamps 2 x XLR
Phantom Power Channel 1
Inputs - Line 2 x XLR/TRS (Combo), 2 x 1/4"
Inputs - Other 1 x Stereo (Aux), 1 x 1/8" (Headset), 1 x 1/8" (Aux), 1 x 1/4" (Footswitch)
Outputs - Main 2 x 1/4"
Headphones 1 x 1/4", 1 x 1/8" (Headset)
USB 1 x Type Micro-B, 1 x Type B
Effects Yes
Power Source USB bus powered
Dimensions Height: 2.5"
Width: 6.1"
Depth: 8"
Weight 2.2 lbs.
Computer Interface Type USB 2.0 Type-C
Connections (Input)
  • 1 x 3.5mm (1/8") Stereo Mini Jack
  • 2 x 6.35mm (1/4") TRS Jack
  • 2 x XLR / Jack Combo
Mic Preamps (Max) 2
Instrument Inputs (Max) 2
Phantom Power Yes
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output) 2 x 6.35mm (1/4") TRS Jack
Dimensions (mm) 15.494 x 6.35 x 20.32 WxHxD
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN119523
Model Number CAG06
GTIN 4957812580137

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
