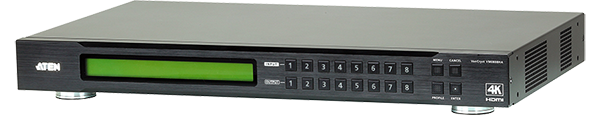

Aten VM0808HA 8x8 4K HDMI Matrix Switch

VM0808HA Aten 8x8 4K HDMI Matrix Switch

Thumbnail 1 : Aten VM0808HA 8x8 4K HDMI Matrix Switch Thumbnail 2 : Aten VM0808HA 8x8 4K HDMI Matrix Switch Thumbnail 3 : Aten VM0808HA 8x8 4K HDMI Matrix Switch
Scan code: LN103635 Manufacturer code: VM0808HA-AT-E
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Aten - 8x8 4K Matrix Switch

aten 8x8

8x8 4K HDMI Matrix SwitchThe ATEN VanCryst™ VM0808H 8x8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displaysand view them in any arrangement.

As a matrix switch the VM0808H allows eight HDMI source devices to cross connect to eight HDMI displays at the same time while independently controlling the output in any array possible giving you the ultimate flexibility and control in any multi-display HDMI installation.

Connect 8 HDMI Sources To Upto 8 HDMI Displays

back

Supports 4K resolutions up to UHD The ATEN VM0808HA 8x8 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0).

Ready for the future of high-definition video switching, the VM0808HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.

back The VM0808HA matrix switch offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays and can be operated through front-panel pushbuttons, IR remote, RS-232 control and Ethernet connections, ensuring optimum viewing and control of high-definition video.

Moreover, with a built-in Web GUI, the VM0808HA is easily accessible via any web browser for remote configuration and customization of each HDMI source and display connection.

System Requirements

Features Specification
Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 15 m
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p
Max. Distance Up to 15 m
Control
RS-232 Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
EDID Settings EDID Mode: Default / Port1 / Remix
Power
Connectors 1 x 3-Prong AC Socket
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A
Consumption 120 VAC, 32W; 230 VAC, 34W
