Scan code: LN92163 Manufacturer code: APX16

Universal Audio Apollo X16 (Mac/Win)

Universal Audio Apollo X16 Thunderbolt 3 Audio Interface (Mac/Win)

Thumbnail 1 : Universal Audio Apollo X16 (Mac/Win) Thumbnail 2 : Universal Audio Apollo X16 (Mac/Win) Thumbnail 3 : Universal Audio Apollo X16 (Mac/Win) Universal Audio Apollo X16 (Mac/Win) : video thumbnail 1
Scan code: LN92163 Manufacturer code: APX16
£2,747.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £75.03 / month (APR 14.9%)
Monthly Payment: £246.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,747.00
Total inc. interest: £2,959.28
Monthly Payment: £131.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,747.00
Total inc. interest: £3,164.42
Monthly Payment: £93.85
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,747.00
Total inc. interest: £3,378.44
Monthly Payment: £75.03
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,747.00
Total inc. interest: £3,601.08
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 17th Aug to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

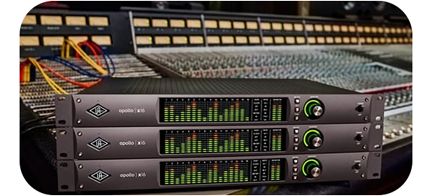

World-class AD/DA Conversion
Universal Audio - 'Apollo x16'

Universal Audio - 'Apollo x16'

50% more processing power than previous Apollos Universal Audio’s flagship ‘Apollo x16’ enables music producers, project and post-production studios to track, overdub, and mix with new, unparalleled A/D and D/A conversion, HEXA Core UAD plug-in processing, Dual-Crystal clocking and 7.1 surround sound monitoring – all wrapped in an elegant rackmountable Thunderbolt 3 audio interface compatible with Mac or PC.

Utilising UA’s 60-years of heritage and know-how of audio craftsmanship, this 18x20 interface sports the broadest dynamic range (133 dB) and lowest THD+N (-129 dB), of any integrated audio interface available today. Furthermore, with brand-new HEXA Core processing, you’ll enjoy 50% more DSP for powering the celebrated UAD Powered Plug-Ins in real time.

Make the UA Apollo x16 the centrepiece of your studio and you’ll see your productivity sky-rocket! Track and mix with a staggering 50% more processing power than any previous Apollo, thanks to UA’s powerful 6-core HEXA Core processor. Enjoy top-shelf sound quality, via Apollo x16’s redesigned elite-tier AD/DA conversion and Dual Crystal clocking. Professional users will bask in native 7.1 surround monitoring support, selectable +24dBu operation, integrated talk-back and more. Beyond this, you’ll enjoy sub-2ms latency and an abundance of expandability thanks to Apollo x16’s super-fast Thunderbolt 3 connectivity.

UA’s Flagship A/D and D/A Conversion Unit

Universal Audio - 'Apollo x16'

All new Dual-Crystal clockingUA’s Apollo range is responsible for 1000’s upon 1000’s of chart-topping songs and 100’s of Grammy-winning albums. In a bid to improve upon the previous range of Apollo interface’s class-leading audio conversion, UA’s team had obsessively auditioned the very latest A/D and D/A converters – ultimately pairing elite-class 24-bit/192 kHz converters with brand-new analogue circuitry for a staggeringly pristine signal path.

The Apollo X series also sees the introduction of Dual-Crystal clocking, boasting dedicated crystals for 44.1/88.2/176.4k and 48/196/192k sample rates, which results in breathtakingly low jitter, clocked at an unbelievable -10 picoseconds. This manifests itseld into pure, artifact-free recordings and solid stereo imaging you can trust.

With 133dB dynamic range and THD+N of -129dB, the Apollo x16’s wide, organic sound quality beats every interface in its peer group, regardless of price, and it’s the optimum starting point for applying UAD processing.

Realtime UAD HEXA Core Processing

back

6 DSP chipsApollo x16 sports brand-new HEXA Core processing with 6 DSP chips and 50% more UAD plug-in processing power than any prior Apollo. This allows you to run more UAD plug-ins, whether you’re tracking in real time with channel strips from Neve, Manley, or API, or running high UAD plug-in counts when mixing in your DAW.

From the tube warmth of the Pultec EQ on guitars, to the subtle limiting of the LA-2A on vocals, or the pump of an authentic Fairchild 670 compressor on drums, your recordings will take a giant leap forward in rich, sonically complex analogue sound

Classic Analogue Processing Onboard

back

Realtime UAD ProcessingOf course, a hallmark feature of Apollo is its Realtime UAD Processing, letting you run the full library of UAD plug-ins with near-zero latency. Apollo x16 includes the Realtime Analog Classics Plus plug-in bundle, so you can record and mix with the world’s only authentic Teletronix LA-2A, 1176LN, and Fairchild compressors, Pultec EQs, and many more.

Access the World of UAD Powered Plug-Ins

4K Recording

an extensive library of world-class plug-insGoing beyond the included Realtime Analog Classics Plus plug-ins, Apollo x16 lets you tap into the full UAD Powered Plug-In library of legendary vintage EQs, compressors, reverbs, tape machines, channel strips, and more — at near-zero latency, regardless of your audio software’s buffer size and without taxing your computer’s CPU.

With exclusive emulations from SSL, Neve, Studer, Manley, Helios, API, Ampex, Lexicon, Fender, and more, it truly is just like having a studio full of classic analogue gear, in a single rack space. And unlike competing interfaces, these award-winning DSP-powered plug-ins are also available in your DAW for mixing.

Surround Sound, Talkback, and More

back

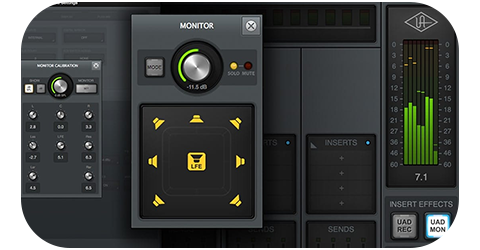

7.1 surround monitoring supportThe Apollo x16 features built-in front-panel monitoring functions including a Talkback mic, Alt Speakers, and assignable Dim or Mono control. Plus, with its comprehensive 7.1 surround monitoring support, Apollo x16 is fantastic for engineers and producers working on audio and music for video games, television, and the web.

In addition, Apollo x16 offers selectable +24 dBu operation for out-of-the-box compatibility with professional mixing consoles and other high-end pro audio equipment.

Build an Expanded Studio System

back

via thunderboltApollo x16 offers 18 x 20 simultaneous inputs/outputs (16 x 16 analogue I/O) and two built-in Thunderbolt 3 ports. This allows users of any Thunderbolt-equipped Apollo Twin or Apollo rackmount audio interfaces to easily combine up to four Apollos and six total UAD-2 devices — adding fast, high-bandwidth I/O and DSP as your studio grows.

'LUNA' Software Included!

4K Recording

Deep Apollo Integration for a fast, natural workflowLUNA gives Apollo owners the fastest recording environment for music production, editing, and mixing. LUNA’s Accelerated Realtime Monitoring™ gives users seamless hardware-software integration for capturing audio through UAD plug-ins with no discernible latency, offering Apollo owners the most natural, analog-style workflow of any DAW available.

Rounding out LUNA’s feature set at launch is a full suite of built-in instruments and extensions, created in collaboration with the biggest brands in audio. From integrated Studer multitrack tape and genuine Neve summing, to all-new LUNA Instruments from Moog, UA, Spitfire Audio, and more, LUNA brings Universal Audio’s expertise in modelling, sampling, and synthesis to the forefront of audio production.

Please note: FREE for all existing Thunderbolt Apollo & Arrow interfaces (Mac only)

killer Features • Free UA recording application available for all macOS-based thunderbolt equipped Apollo and Arrow users.
• Accelerated Realtime Monitoring™ provides analog-style tracking and overdubbing.
• Deep Apollo and Arrow integration for a fast, natural workflow.
• Built-in Neve®Summing extension for instant classic console sound.
• Integrated Oxide and Studer multitrack tape delivers warmth and punch on demand.
• All-new LUNA instruments include Ravel grand piano, Moog, Minimoog, and Shape creative toolkit.
• Contextual editing and browsing – the system intelligently switches tools and viewing modes based upon workflow.
• Runs all UAD and Audio Units (AU) plug-ins and instruments.
• Session Auto-Save—LUNA is constantly saving, so you'll never lose your work again.
• AAF imports allow you to import sessions from other major DAWs using the industry-standard Advanced Authoring Format (AAF).

Meet the Family

Universal Audio - ApolloIntroducing Apollo X. Four world-class Thunderbolt 3 audio interfaces, designed for excellence in every detail.

Track and mix with all-new elite class A/D and D/A conversion, HEXA Core UAD plug-in processing, authentic Unison mic preamp models from Neve, Manley, API, Helios, and SSL, selectable +24 dBu operation, and available 7.1 surround sound monitoring. All in a sleek Thunderbolt 3 interface for Mac or PC.

The Tech Spec

Features Specification
Computer Connectivity Thunderbolt 3
Form Factor Rackmount
Simultaneous I/O 18 x 20
A/D Resolution 24-bit/192kHz
Built In DSP/FX 6 x UAD DSP Cores
Phantom Power No
Analogue Inputs 2 x DB-25 (line)
Analogue Outputs 2 x XLR (monitor), 2 x DB-25 (line/7.1 surround)
Digital Inputs 1 x XLR (AES/EBU)
Digital Outputs 1 x XLR (AES/EBU)
Thunderbolt 2 x USB-C (Thunderbolt 3)
Clock I/O In/Out (75 ohm termination switch)
Software HEXA Core UAD Plug-in processing, Realtime Analog Classics Plus Plug-ins
OS Requirements - Mac macOS 10.12 or later, Quad Core i7 Processor or higher
OS Requirements - PC Windows 10 64-bit Anniversary update or later, Quad Core i7 Processor or higher, Thunderbolt 3 port required
Rack Spaces 1U
Power Supply 12V DC power supply
Specifications
Computer Interface Type Thunderbolt
Analogue Inputs (Total) 16
Analogue Outputs (Total) 16
Connections (Input)
  • 2 x 25 Pin D-Sub Analog Input
  • 1 x AES-EBU
  • 1 x word clock
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range 133 dB
Connections (Output)
  • 2 x 25 Pin D-Sub Analog Output
  • 1 x AES-EBU
  • 1 x word clock
  • 2 x XLR
Dimensions (mm)
DSP Processing Yes
Misc. Notes
Additional Information
Scan Code LN92163
Model Number APX16
GTIN 819937002496
