NewTek TriCaster TC Mini 4K Deluxe Bundle

NewTek TriCaster TC Mini 4K Deluxe Bundle, Spark Plus I/O 4K, NDIHX-PTZ1, TriCaster TC1SP Control Surface

Thumbnail 1 : NewTek TriCaster TC Mini 4K Deluxe Bundle Thumbnail 2 : NewTek TriCaster TC Mini 4K Deluxe Bundle Thumbnail 3 : NewTek TriCaster TC Mini 4K Deluxe Bundle Thumbnail 4 : NewTek TriCaster TC Mini 4K Deluxe Bundle
Scan code: LN109518 Manufacturer code: TCM4KUHDDB
£21,301.00Item currently awaiting an ETA
Pre order
From £443.77 / month (APR 0%)
Monthly Payment: £1,775.09
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £21,301.00
Total inc. interest: £21,301.00
Monthly Payment: £887.55
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £21,301.00
Total inc. interest: £21,301.00
Monthly Payment: £591.70
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £21,301.00
Total inc. interest: £21,301.00
Monthly Payment: £443.77
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £21,301.00
Total inc. interest: £21,301.00
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

NewTek - 'Tricaster Mini 4K'
Deluxe Bundle

NewTek - 'Tricaster Mini 4K'

'You have a story to tell' NewTek 'Tricaster Mini' (TC) is an easy to use compact video creation system to let anyone with a story to tell make fun & exciting shows without needing production expertise.

You don't have to be a video expert to tell your story with television-quality results. with TC Mini, you can be on your way to making a show in resolutions up to 4K UHD for delivery to any type of screen you want within minutes of opening the box. TC Mini takes portable live production to new heights with hundreds of amazing features, including virtual sets, social media publishing, multi-channel audio mixing, streaming, integrated media playback, & even live motion graphics & Live Story Creator MS Word® show automation w/ Premium Access.

TC Mini delivers you all the benefits of IP based production using NDI® for easy connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras & devices without cable length limitations.

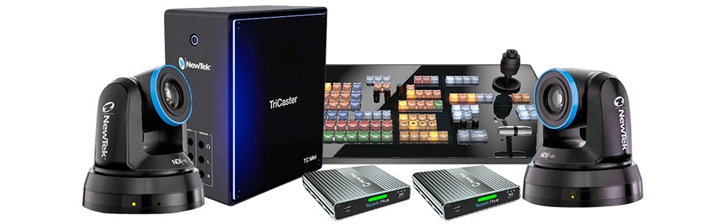

what's included? • 1x TriCaster Mini
• 1x TriCaster TC1SP
• 2x Spark Plus 4K IO Converters
• 2x PTZ1 Cameras

Tricaster Mini 4K

Zoom F6

INCLUDES 2 INPUT MODULES NewTek’s powerful ‘TC Mini’ is a simple and easy-to-use portable video creation system to enable anyone with a story to tell, to craft fun and exciting shows without the need for extensive production knowledge.

Users don’t have to be a video production veteran to tell your story with TV-quality results. With the NewTek ‘TC Mini’, you can be on your way to creating a show in resolutions up to 4K UHD for delivery to any type of screen you want within minutes of opening the box. TC Mini elevates portable live production to new heights with hundreds of amazing features, including virtual sets, social media publishing, multi-channel audio mixing, streaming, integrated media playback, and even live motion graphics and Live Story Creator MS Word® show automation with Premium Access.

‘TC Mini’ hands you all the benefits of IP based production using NDI® for simple connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras and devices without annoying cable length limitations.

Direct One-to-One Connectivity

back

highly portableThere is simply no other portable video creation system which is able to offer so many simple and fun ways to tell stories in such a small form for the price than the NewTek ‘TC Mini’.

The sleek unit is easily transportable and set up with all the features you need to produce high quality shows to screens and displays of any size or shape. With NDI®, TC Mini connects to a wide variety of NewTek and third-party systems over IP like cameras, converters, and custom software applications.

Direct one-to-one connectivity with HDMI cameras and devices simplifies configurations and removes cable length limitations.

UHD 60p NDI HDMI Media Converter
NewTek - 'Spark Plus I/O 4K'

Arturia - 'Sound Explorer Collection'

Compact Media
IP Converter
NewTek Spark™ Plus are portable, affordable UHD 60p to NDI® video converters. Capturing video directly from the connected camera or device and converting it to high bitrate NDI®, a Spark Plus device is the fastest, easiest, and most flexible way to acquire up to a UHD 60p video source from anywhere on the network and integrate it into your IP-based video production workflows.

NewTek Spark Plus offers all types of media production professionals a quick and easy solution that does not require technical expertise, or an enterprise-level network infrastructure to use up to UHD 60p video in IP based media production workflows.

Spark Plus is compatible with hundreds of systems, devices, and applications that support innovative Network Device Interface technology and is ideal for live production, streaming, sports, competitive and social gaming, corporate communications, classroom production, and more. Say goodbye to cost, cables, capture or display cards, and confusion.

Compatible with Hundreds of Systems

Arturia - 'Sound Explorer Collection'

Pristine UHD VideoCapture broadcast-quality ultra high definition video with native support for resolutions up to 2160p 60 with simultaneous video loop out.

IP Based ProductionDeliver video to the network with NDI® through HDMI connectivity for integrating with professional video equipment, or consumer cameras, game consoles, and everyday A/V gear.

Simple ConnectivityConnect to the network and transmit video with a single Ethernet cable.

Compatible With Any NDI® Workflow

Arturia - 'Sound Explorer Collection'

Tally IndicatorEasily recognize when the source is on Program or Preview.

Web InterfaceConfigure settings and monitor video from the browser of any networked computer or mobile device with an intuitive, Webbased user interface.

Software DrivenIntegrates with live production systems from NewTek and other manufacturers, as well as software applications to easily satisfy a variety of production requirements.

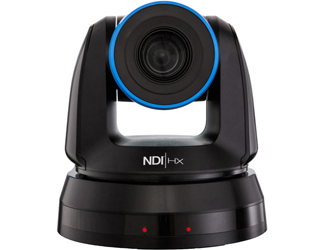

Native NDI IP Full HD PTZ Camera
NewTek - 'NDIHX-PTZ1'

NewTek - 'NDIHX-PTZ1'

Full-HD PTZ Camera The very first camera designed with NDI video workflows in mind, ‘NewTek’s incredible ‘NDIHX-PTZ1’ is an affordable, IP-based pan-tilt-zoom camera, packed with impressive NDI technology and powered via Ethernet.

The NewTek ‘NDIHX-PTZ1’ is the perfect way to attain live video for input into modern video production. The very first motorized PTZ camera to transmit full HD video direct to NDI-compatible receiving devices across the network, it’s uniquely equipped for IP-based live production and streaming, and other single- and multi-camera applications to include sports and event coverage, video conferencing, lecture capture, distance learning, media communications, and surveillance.

Discover the potential and possibilities of a PTZ which can serve as a live video input for any NDI-compatible hardware or software-from anywhere on your network. Introducing NDIHX-PTZ1, the faster, easier, and better way to capture live video.

3.5mmAudio Inputs

1-1/10,000 secShutter Speed

20xOptical Zoom

at a glance • Native support for HD video formats up to 1080p 60
• Integrated and automatic tally support via NDI
• Motor-driven pan-tilt-zoom operation with preset positions
• Remote control & monitoring via Web-based user interface
• Remote control over IP via NewTek Studio Monitor

One Camera. Hundreds of Uses.

NewTek - 'NDIHX-PTZ1'

'Simple. Amazing. And Simply Amazing.' Carefully design for the modern production world, ‘NewTek’s ‘NDIHX-PTZ1 NDI PTZ’ marries together both standard SDI and HDMI connections, alongside Ethernet/NDI network connectivity for HD video streaming, recording and broadcasting. Full functionality is possible via the traditional SDI and serial connectors, what differentiates this PTZ however, is the NDI connectivity.

EDUCATIONStreamline virtual classroom production, lecture capture, and distance learning for live and on-demand teaching.

ENTERTAINMENTExpand event coverage in-venue and behind the scenes for live streaming, recording, and social video.

GAMINGCapture the action, emotion, and intensity of competitive gaming and esports from every angle.

GOVERNMENTInform and involve citizens with real-time access to live meetings and community programming.

PROFESSIONAL A/VExplore virtually endless video applications, from medical and security installations to weddings and graduations.

SPORTSEnhance the fan experience with unique camera angles or outfit facilities for covering practices and club activities.

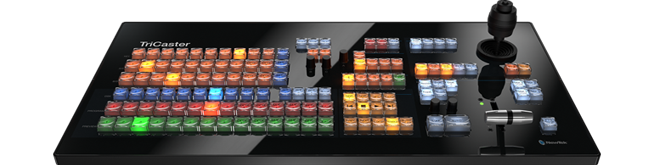

NewTek 'TriCaster TC1SP' Control Surface

4K Recording

Intuitive control layoutThe NewTek TriCaster TC1SP Control Panel is a compact, yet comprehensive control panel for modern productions. Expertly engineered for performance, ergonomics, and style, it pairs with 'TriCaster TC1' to deliver powerful, professional control in a space-saving frame ideal for producing in the studio, on the move, and everywhere in between.

Amazing Features • Intuitive layout mapped to the TriCaster TC1 user interface.
• Practical lighting and backlighting for heightened visibility of control panel activity.
• Dynamically variable T-Bar lighting for visual feedback of effect status and progress.
• Expertly engineered for performance, ergonomics, and style.

'Tricaster Mini 4K' Tech Spec

Features Specification
Network Video Input 2160p: 59.94, 50, 29.97, 25, 24, 23.976 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial & network protocols, including RS232, RS422, & IP, with integrated controls & preset system
Network Video Output 2x independent IP video mix outputs via NDI®
Stream Output 2x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs 4x mini display port with HDMI output adapters; 2x of the outputs support multiviewers using st&ard display resolutions
Mix/Effect Buses (M/E) 4x M/E buses supporting video re-entry; 1x Mix/Effect channel per bus with support for up to 2 sources; 2x KEY layers per bus; 9x memory slots per bus; DSK Channels: 2x DSK channels
Media 5x media players; 2x DDR; 2x GFX; 1x Sound; 15x media buffers; 5x animation buffers; 10x graphic buffers
Keyers Integrated LiveMatte™ chroma & luma keying technology on all source channels & M/E buses; 8x input keyers; 2x media player keyers; 4x M/E keyers; 15x buffer keyers
COMP Integrated video composition engine on the switcher & each M/E bus to create, store, & apply layer configurations & DVE-style motion sequencesl; 16x configurable COMP presets per bus
Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets & box effects included
DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal & external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII & more
Recording 4x recording channels from either NDI® inputs or Mix outputs (10x with Premium Access)
Storage Capacity varies by format, resolution & file specification; Supports recording to external storage via USB 3.0
Local Audio Input 1x 1/4" bal. mic; 2x 1/4" bal. line
Local Audio Output 2x 1/4" bal. line; 1x 1/4" stereo headphones jack
MIDI Support for st&ard MIDI protocol enabling third-party device control
Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video)
Live Video Frame Rate
Zoom
LCD Display No
Sensor Type
Dynamic Range
Connectivity
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight
Dimensions
Colour
5.1 Sound No
Additional Information
Scan Code LN109518
Model Number TCM4KUHDDB
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
