New
Scan code: LN109519 Manufacturer code: TCM4KUHD

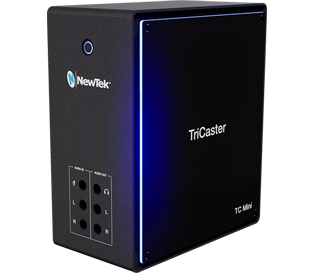

TriCaster TC Mini 4K Video Production System

TriCaster TC Mini 4K - IP Multi-Camera Live Production and Streaming System

Thumbnail 1 : TriCaster TC Mini 4K Video Production System Thumbnail 2 : TriCaster TC Mini 4K Video Production System Thumbnail 3 : TriCaster TC Mini 4K Video Production System
Scan code: LN109519 Manufacturer code: TCM4KUHD
£8,965.60Item currently awaiting an ETA
Pre order
From £244.87 / month (APR 14.9%)
Monthly Payment: £804.87
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,965.60
Total inc. interest: £9,658.42
Monthly Payment: £430.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,965.60
Total inc. interest: £10,328.05
Monthly Payment: £306.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,965.60
Total inc. interest: £11,026.37
Monthly Payment: £244.87
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £8,965.60
Total inc. interest: £11,753.30
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Compact Video Creation System
NewTek - 'Tricaster Mini 4K'

Zoom F6

INCLUDES 2 INPUT MODULES NewTek’s powerful ‘TC Mini’ is a simple and easy-to-use portable video creation system to enable anyone with a story to tell, to craft fun and exciting shows without the need for extensive production knowledge.

Users don’t have to be a video production veteran to tell your story with TV-quality results. With the NewTek ‘TC Mini’, you can be on your way to creating a show in resolutions up to 4K UHD for delivery to any type of screen you want within minutes of opening the box. TC Mini elevates portable live production to new heights with hundreds of amazing features, including virtual sets, social media publishing, multi-channel audio mixing, streaming, integrated media playback, and even live motion graphics and Live Story Creator MS Word® show automation with Premium Access.

‘TC Mini’ hands you all the benefits of IP based production using NDI® for simple connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras and devices without annoying cable length limitations.

What's in the box? • 1x TriCaster Mini
• 2x Input Modules

At a glance • 8 x NDI Video Input IP Streams
• 2 x Output Streams, 2 x NDI Mix Outputs
• Video Resolution Support up to UHD 4K
• 2 x HDMI-to-NDI Input Modules

Direct One-to-One Connectivity

back

highly portableThere is simply no other portable video creation system which is able to offer so many simple and fun ways to tell stories in such a small form for the price than the NewTek ‘TC Mini’.

The sleek unit is easily transportable and set up with all the features you need to produce high quality shows to screens and displays of any size or shape. With NDI®, TC Mini connects to a wide variety of NewTek and third-party systems over IP like cameras, converters, and custom software applications.

Direct one-to-one connectivity with HDMI cameras and devices simplifies configurations and removes cable length limitations.

Introducing 'TriCaster Mini'

newtek - tricaster miniFrom the office, an event, or from anywhere... with TriCaster Mini, anyone using everyday camcorders can create and publish great video content in minutes, stream it live, and make even the smallest presentation captivate audiences like network-style TV.

The Tech Spec

Features Specification
Network Video Input 2160p: 59.94, 50, 29.97, 25, 24, 23.976 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial & network protocols, including RS232, RS422, & IP, with integrated controls & preset system
Network Video Output 2x independent IP video mix outputs via NDI®
Stream Output 2x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs 4x mini display port with HDMI output adapters; 2x of the outputs support multiviewers using st&ard display resolutions
Mix/Effect Buses (M/E) 4x M/E buses supporting video re-entry; 1x Mix/Effect channel per bus with support for up to 2 sources; 2x KEY layers per bus; 9x memory slots per bus; DSK Channels: 2x DSK channels
Media 5x media players; 2x DDR; 2x GFX; 1x Sound; 15x media buffers; 5x animation buffers; 10x graphic buffers
Keyers Integrated LiveMatte™ chroma & luma keying technology on all source channels & M/E buses; 8x input keyers; 2x media player keyers; 4x M/E keyers; 15x buffer keyers
COMP Integrated video composition engine on the switcher & each M/E bus to create, store, & apply layer configurations & DVE-style motion sequencesl; 16x configurable COMP presets per bus
Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets & box effects included
DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal & external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII & more
Recording 4x recording channels from either NDI® inputs or Mix outputs (10x with Premium Access)
Storage Capacity varies by format, resolution & file specification; Supports recording to external storage via USB 3.0
Local Audio Input 1x 1/4" bal. mic; 2x 1/4" bal. line
Local Audio Output 2x 1/4" bal. line; 1x 1/4" stereo headphones jack
MIDI Support for st&ard MIDI protocol enabling third-party device control
Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video)
Live Video Frame Rate
Zoom
LCD Display No
Sensor Type
Dynamic Range
Connectivity
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight
Dimensions
Colour
5.1 Sound No
Additional Information
Scan Code LN109519
Model Number TCM4KUHD
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
