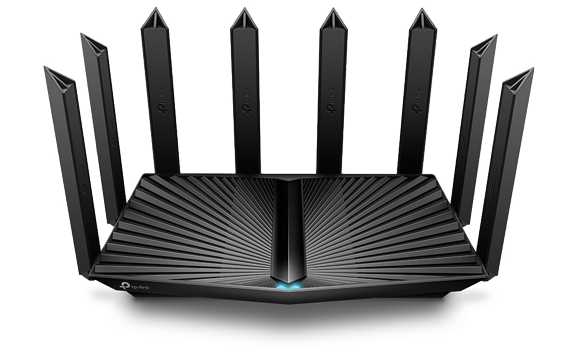

TP-LINK Archer AX90 Tri Band AX6600 WiFi 6 Router

TP-LINK Archer AX90 AX6600 WiFi 6 Router, 8x Antennas, MU-MIMO, Tri-Band (1148+4804+4804Mbps), 2.5GbE, 802.11ax

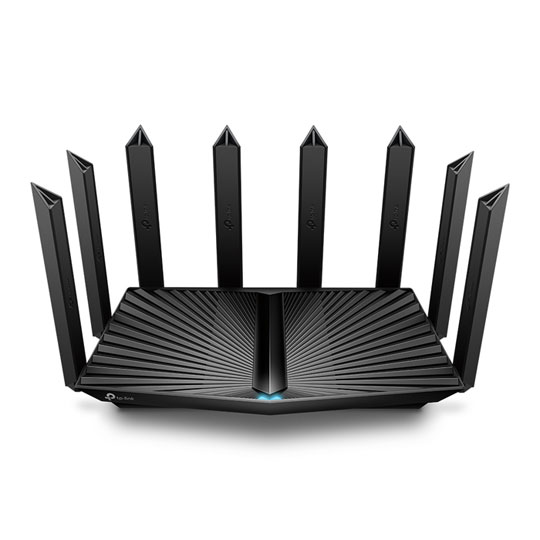

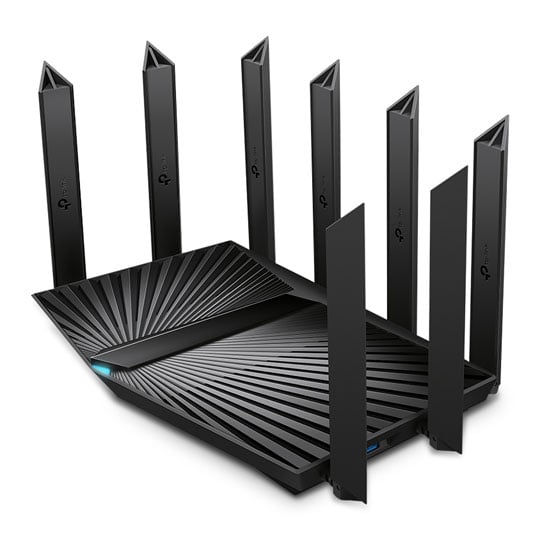

Thumbnail 1 : TP-LINK Archer AX90 Tri Band AX6600 WiFi 6 Router Thumbnail 2 : TP-LINK Archer AX90 Tri Band AX6600 WiFi 6 Router Thumbnail 3 : TP-LINK Archer AX90 Tri Band AX6600 WiFi 6 Router
Scan code: LN111959 Manufacturer code: Archer AX90
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

TP-LINK Archer AX90 AX6600 Tri-Band Gigabit Wi-Fi 6 Router

TP Link AX90

Step into the Future The new generation of phones—such as iPhone 11, Galaxy Note 10, and Galaxy S10—and laptops already support WiFi 6, with many more on the way. Your router should, too. WiFi 6 holds great promise to future-proof your home network for the next several years. Now is the best time to embrace this new technology. The TP-LINK Archer AX90 boasts tri-band Wifi and provides eight simultaneous data streams to open up more bandwidth allowing your devices to operate at full speed. In addition to stunning wireless speeds of more than 6.6 Gbps, AX90 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Plus with built-in security features you can rest assured that via an easy management interface that your network is safe.

What is Wi-Fi 6?

The latest Generation Wi-Fi 6 is the next generation standard in WiFi technology. Wi-Fi 6 also known as “AX WiFi" or "802.11ax WiFi” builds and improves on the current 802.11ac WiFi standard. Wi-Fi 6 was originally built in response to the growing number of devices in the world. If you own a VR device, multiple smart home devices, or simply have a large number of devices in your household, then a Wi-Fi 6 router might just be the best WiFi router for you. In this guide, we’ll go over Wi-Fi 6 routers and break down how they’re faster, increase efficiency, and are better at transferring data than previous generations.

down

4X Larger Capacity

up

3X Faster Speed

up

Increase Device Efficiency

down

Backwards Compatible

Incredible Tri-Band Connection

4K Recording

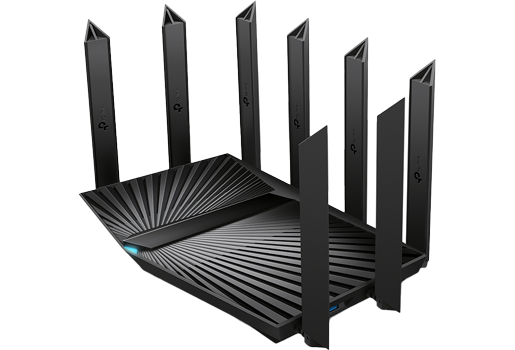

Powerful and ExquisiteCombining Tri-band WiFi with high-tech WiFi 6, Archer AX90 provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed. Eight high gain antennas not only deliver boosted WiFi signals to every corner of your home, but also bring a sense of aesthetics.

Go Faster: Wired or Wireless

4K Recording

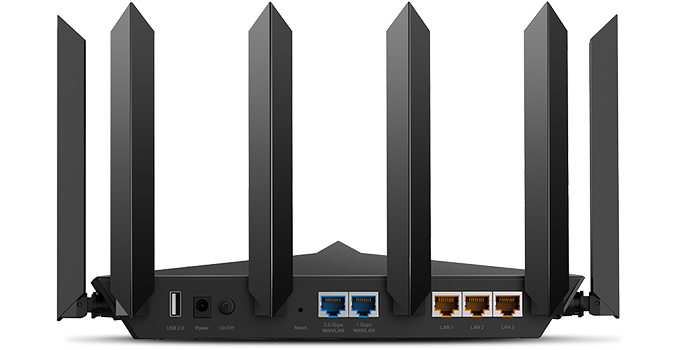

Flexible enough to meet your needsIn addition to stunning wireless speeds of more than 6.6 Gbps, AX90 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.

Your Security is the Priority

Secured with HomeshieldCustomise your home network with enhanced security using TP-Link HomeShield's kit of built-in features. Whether you're identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.

down

Comprehensive ReportsHomeShield constantly monitors your home network security, keeps an eye on your WiFi usage, and generates weekly and monthly reports. This helps you gain insight and better control of your home network.

up

Quality of ServiceChoose devices or activities you want to prioritise on your network with Quality of Service (QoS). In just a few taps, make sure your laptop or movie stream is first in line for WiFi or Ethernet.

up

Parental ControlsWhether you want to block inappropriate websites, set daily limits for the total time spent online, see which sites your kids are using, or pause the internet, you can do it with parental controls—all from the convenience of an app.

down

Home Network ScannerThe security threats to your home network are continually evolving as your WiFi usage grows. HomeShield provides a home network scanner for your private WiFi to detect potential threats and alert you of security issues.

Specifications
Networking, Connectivity & Ports
Model Archer AX90
Form-Factor Desktop
Device Type Router
Compatible Internet Connections
  • Existing WiFi Network
  • Fiber-based Modems
Network Connectivity
  • 10/100/1000
  • 10/100/1000/2500
  • Wireless LAN
Network Ports
  • 3 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for LAN/WAN
Other Connectors
  • 1 x USB 2.0
  • 1 x USB 3.0
USB Applications FTP Server
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 5
Total WAN Connections 2
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 6600 (574+1201+4804) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IPv4
  • IPv6
Wireless Band Tri-Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 8 External
Core Features
Features
  • Automatic security updates
  • Beamforming
  • DFS (Dynamic Frequency Selection)
  • DHCP Server
  • DynDNS
  • MU-MIMO
  • OFDMA
  • Parental Control
  • Quality of Service (QoS)
Router/Modem Processor 1.5GHz Quad Core
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
  • 1 x LED On/Off Button
  • 1 x Power Button
  • 1 x Reset Button
  • 1 x Wireless On/Off Button
  • 1 x WPS Button
OS Support
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols
  • Access Control
  • IP and MAC Address Binding
  • SPI Firewall
  • WPA
  • WPA-Enterprise
  • WPA2
  • WPA2-Enterprise
  • WPA3
Firewall/NAT Yes
Management
VPN Support
  • OpenVPN Server
  • PPTP Server
Physical Specifications
Dimensions 311 x 174 x 207 mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN111959
Model Number Archer AX90
GTIN 6935364053383
