Townsend Labs Sphere L22 Precision Microphone Modeling System

Townsend Labs Sphere L22 Dual Capsule Precision Microphone, DSP Modeling System For Emulating Classic Mics

Townsend Labs
Scan code: LN84307 Manufacturer code: SPHERE-L22 Request call
£1,399.00Item overdue since 20 November 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £34.94 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview

Dual Channel Precision Microphone With Advanced Modeling Technology


Townsend Labs Sphere L22
The Sphere L22™ microphone system from Townsend Labs models the characteristics of the most sought-after large-diaphragm condenser microphones with amazing accuracy, and allows selection of different mics and patterns even after tracking.

The Sphere™ system consists of a high precision dual channel microphone, which when paired with the included Sphere DSP plug-in (UAD, VST, AU, AAX Native) accurately models the response of a wide range of mics, including transient response, harmonics, proximity effect and three-dimensional polar response.

Now You Can:
• Record with the sound of microphones many have only dreamt about
• Change mic type, polar pattern, and other microphone characteristics, even after tracking!
• Audition the sound of different microphones without tiring the vocalist
• Reduce bleed, undesirable room coloration, and other common issues using Off-Axis Correction™
• Record in stereo from a single microphone




Townsend Labs Sphere L22

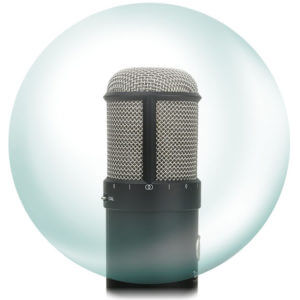

Breakthrough Microphone Modeling Technology
Sphere's three-dimensional approach captures the spatial nuances, proximity effect and off-axis frequency response of a wide range of microphones, which until now was not possible with any other product.




Townsend Labs Sphere L22

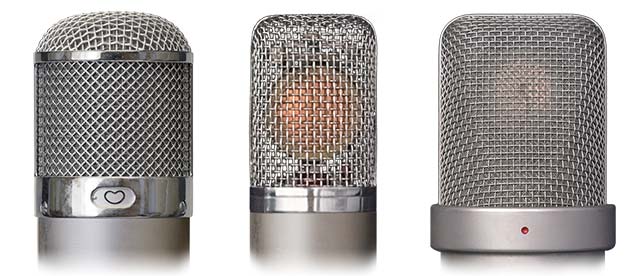

Dream Collection
Access some of the most prized microphones of all time, including a 47 (with VF14 tube), a 67, an M49, and a C12.




Townsend Labs Sphere L22

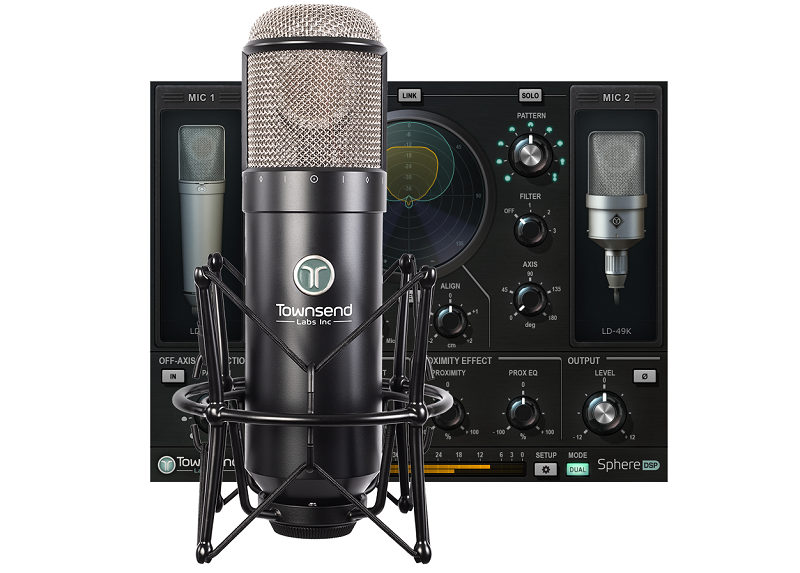

Sphere L22 Microphone

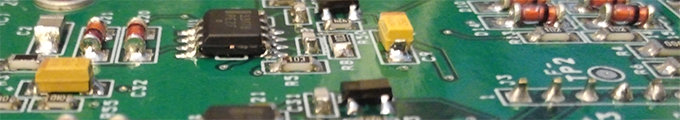

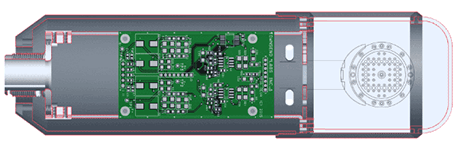

The Sphere system employs the high-resolution, dual-channel L22 large-diaphragm condenser microphone, custom designed to capture the three-dimensional soundfield with exacting detail. Manufactured to extremely tight tolerances, the L22 ensures that modeling is consistent and accurate.




Townsend Labs Sphere L22
Realtime UAD Processing
With Universal Audio Apollo, achieve extremely low latency (approx. 1.6ms round trip at 96kHz) for guaranteed real-time performance. Also supports native AAX, VST and AU.




Townsend Labs Sphere L22

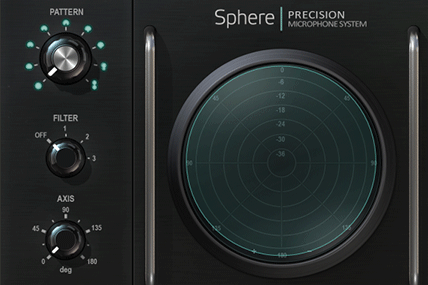

Polar Pattern Modeling
Because Sphere captures the three-dimensional response of target microphones, it precisely emulates the polar patterns and other off-axis characteristics of vintage microphones which are essential to their unique sound.

Re-Mic Sphere Tracks
Select mic type, polar pattern and other settings both before and after tracking.

Adjustable Proximity Effect
No need to move a microphone solely because of too little or too much bass due to proximity effect. Great for punching in a vocal where distance from the mic varies from take to take.




Townsend Labs Sphere L22

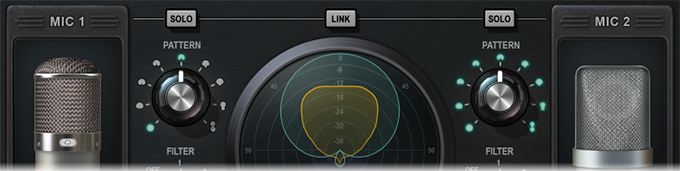

Dual Mic Models
Dual Mode in the Sphere plug-in makes possible phase-coherent mixing of multiple virtual mic models from the same physical microphone, before or after tracking. It's also possible to adjust the relative phase alignment of the two mics with the Align control.




Townsend Labs Sphere L22

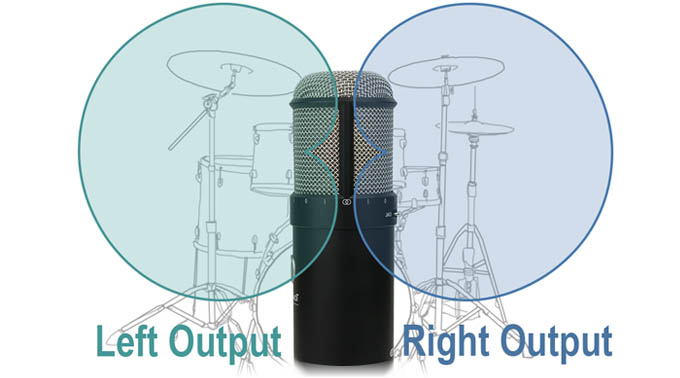

Record In Stereo (With One Mic)
With just one Sphere L22 mic it's possible to make coincident stereo recordings, and even have different mic models on the left and right channels, using the Sphere 180 plug-in.

Axis Shift
Virtually rotate the axis of the mic to give a more off-axis sound before or after tracking.

Off-Axis Correction™
Create more accurate polar patterns to reduce bleed, room coloration, and susceptibility of feedback before or after tracking. For more information see the Off-Axis Correction chapter in the Sphere Hardware and Software User Guide.




Townsend Labs Sphere L22

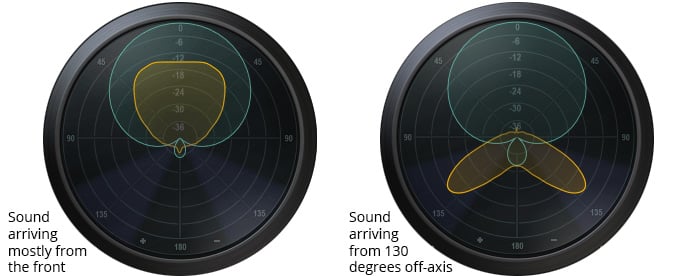

Polar Meter
The Sphere plug-in features a visually informative (and very cool) Polar Meter that dynamically displays the direction and level of sound being picked up by the microphone, as well as the currently selected polar pattern.




Townsend Labs Sphere L22
Low Noise
The microphone hardware has a self-noise level of 7dB-A SPL, well below most vintage microphones and comparable to many of the best modern microphones.

High SPL Handling
The L22 can handle in excess of 140dB SPL before clipping and is remarkably rugged. It won't be damaged by high SPLs or air blasts as some vintage microphones can be.

Sphere - How It Works


Townsend Labs Sphere L22

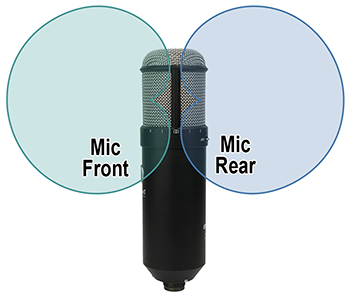

Using a dual-capsule microphone with dual outputs makes it possible to more completely capture the soundfield-including the directional and distance information otherwise lost with a conventional single-channel microphone. This allows the Sphere system to precisely reconstruct how different microphones respond to the soundfield.

In contrast, other microphone modeling technologies apply EQ to filter the sound from what is essentially a conventional microphone. This is fundamentally no different from using EQ to process a recorded track. track.

Townsend Labs Sphere L22


The Sphere L22 microphone modeling system comprises this precision dual-channel microphone, plus an audio plug-in for your DAW. The software plug-in does all of the DSP processing used to create the microphone models. Using a plug-in, instead of DSP processing built into the mic, has the major advantage of allowing the user to change all of the modeling settings, such as mic type and polar pattern, after the audio is recorded.

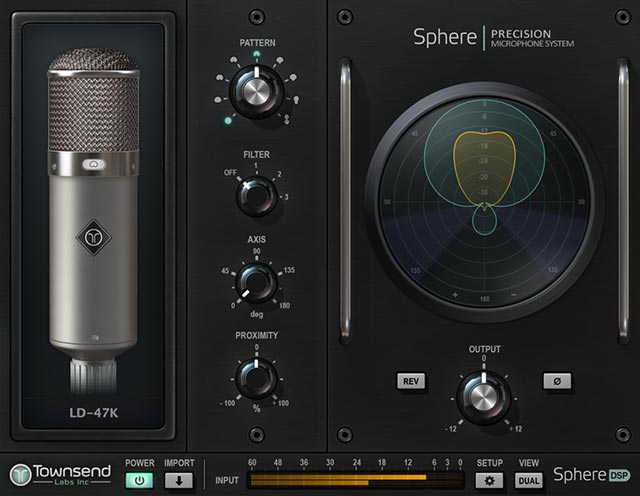

Sphere Plug-in


Townsend Labs Sphere L22


Sphere™ DSP algorithms - accurately models a wide range of the most sought-after microphones in the world.
Re-Mic technology - allows the user to change the mic type and polar pattern even after tracking.
New patented features - including Off-Axis Correction™, which can produce more accurate polar patterns for reduced bleed, room coloration, and feedback.
Supports a wide range of plug-in formats - including UAD, VST2, VST3, Audio Units, and AAX Native on Mac and Windows. Voucher included for free UAD Sphere plug-in.

Microphone Models

Townsend Labs Sphere L22

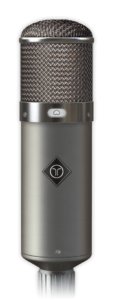

LD-47K
For many, the 47 is the ultimate vocal mic. Rumor has it that Frank Sinatra would not sing without his. The specimen we modeled is an original 47 with a fully brass K47 capsule with a mylar diaphragm and a VF-14 tube.

Townsend Labs Sphere L22
LD-12

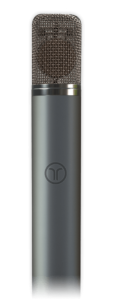

Released in 1953 the C12 is another iconic mic which has a gorgeous high-end sheen and sparkle, due to the uniquely designed CK12 capsule. It's a great choice for lush, breathy vocals, without overly accentuating sibilance.

Townsend Labs Sphere L22
LD-67

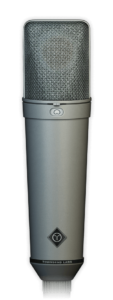

The 67 is a very unique and wonderful mic that tends toward warm, yet without sounding dull. We modeled a mid-1960s version. It really shines on distorted guitar amps where it can reduce harshness while maintaining detail.

Townsend Labs Sphere L22
LD-49K
Although the M49 used the same capsules as the U47, it has a number of "enhancements" which give it its iconic and distinctive sound. The center position on the pattern knob is approximately cardioid, but often the pattern was dialed in a little more exactly to get the best cardioid pattern possible. The model uses this "best" cardioid position.

Townsend Labs Sphere L22
Sphere Linear
The Sphere Linear model provides ruler-flat frequency response from 20Hz to 20kHz, as well as an extremely smooth and well controlled off-axis response. A first of its kind, for a directional microphone.

More information can be found in the User Manual below:
Data Sheet
Features • Equivalent Noise Level: 7 dB-A
• Max SPL at 0.5% THD: 140dB (with -20dB pad engaged)
• Pad Attenuation: -10db and -20dB
• Sensitivity: 22 mV/Pa
• Output Connector: 5-pin male XLR
• Breakout Cable: 10’ (3m) 5-pin female XLR to dual 3-pin male XLR
• Weight (mic only): 1.7 lbs. (770 grams)
• Dimensions (mic only): 8.9" x 2.5" (225mm x 63mm)
• Output Impedance: 200 Ohms
• Recommended Load Impedance: >1000 Ohms
• Phantom Power
• Voltage: 44 to 52 V per channel
• Current: 5 mA per channel typical, 8 mA at max SPL

In the Box
• Sphere L22 Microphone – high precision, dual-capsule, large-diaphragm condenser studio microphone, which can be used with or without modeling
• 10 Foot (3 Meter) Breakout Cable
• Shock Mount
• Swivel Mount
• Hard Carrying Case
• Plush Dust Cover
Specifications
Type Condenser
Polar Pattern (Direction)
Impedance 200 ohms
Sensitivity 22 mV/Pa
Frequency Response
Wired / Wireless Wired
Connectors 1 x 3 Pin XLR
Weight
Including Shock Mount Yes
Including Pop Shield No
Including Mic Clip No
Powered By Phantom
