Topping - L30 - Desktop Headphone Amp - Silver
Topping - L30, Ultra-High Performance Headphone Amplfier, NFCA modules, Pre-Amp Functionality - Silver
- By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Ultra-High Performance Headphone Amplifier

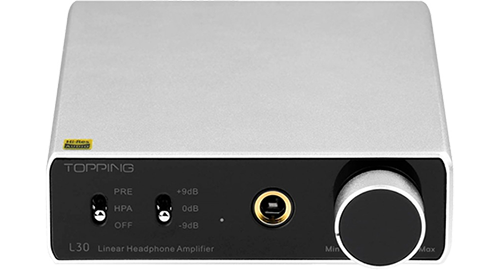

Topping - L30
(Silver)
HIgh-performance Headphone amplifier
with some some serious punch!Topping’s L30 Headphone Amplifier is the companion to the highly regarded E30 DAC. With the ability to be utilised as either an amplifier or indeed a pre-amplifier, the L30 comes fully equipped with NFCA modules as found in Topping’s flagship A90, features 3-step gain settings and is fully Hi-Res Audio certified.
The L30 uses NFCA (Nested Feedback Composite Amplifier) which enable it to drive low impedance headphones with the upmost of ease. The L30 also boasts an ultra-low noise level of 0.3uV that blows away similarly priced competitors, while producing a high dynamic range of 141dB with no audible noise or dark backgrounds in sensitive IEMs!
at a glance
• Ultra-Low Noise of 0.3uV
• Can drive sensitive IEMs to power demanding headphones
• Amp and Pre-Amp performance numbers provided in the images
• Dynamic Range of 141dB
• Pre-Amp Functionality
The Tech Spec
| Features | Specification | THD+N @1kHz A-wt | <0.00007% @Output=500mW(32Ω) <0.00006% @Output=80mW(300Ω) |
|---|---|
| THD @20-20kHz 90kBW | <0.0001% @Output=500mW(32Ω) <0.00009% @Output=80mW(300Ω) |
| [email protected] OUT 1kHz A-wt | 141dB |
| Dynamic [email protected] A-wt | 141dB |
| Frequency Response | 20Hz-40kHz(±0.05dB) |
| Output Level | 26Vpp @G=L 26Vpp @G=M 26VppG=H |
| AP measured noise [email protected] | <0.7uVrms @G=L <0.7uVrms @G=M <0.9uVrms @G=H |
| Actual noise level*@A-wt | <0.7uVrms @G=L <0.7uVrms @G=M <0.9uVrms @G=H |
| Channel [email protected] | -91dB |
| IMD [email protected](18kHz+19kHz) | -116dB |
| IMD [email protected](60Hz+7kHz) | [email protected]: 1 [email protected]: 1 |
| Input Sensitivity | 25Vrms @G=L 9.0Vrms @G=M 3.0Vrms @G=H |
| Gain | -9.9dB @G=L 0dB @G=M 9.5dB @G=H |
| Output Impedance | < 0.1Ω |
| Output Power | 3500mW x 2 @16Ω THD+N<0.1% 2300mW x 2 @32Ω THD+N<0.1% 280mW x 2 @300Ω THD+N<0.1% |
| Load Impedance | >8Ω |
