Ultra-High Performance Headphone Amplifier

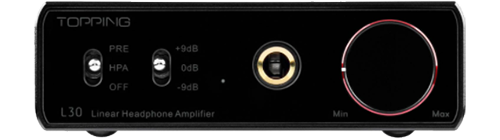

Topping - L30
(Black)

Topping - L30

HIgh-performance Headphone amplifier
with some some serious punch!
Topping’s L30 Headphone Amplifier is the companion to the highly regarded E30 DAC. With the ability to be utilised as either an amplifier or indeed a pre-amplifier, the L30 comes fully equipped with NFCA modules as found in Topping’s flagship A90, features 3-step gain settings and is fully Hi-Res Audio certified.

The L30 uses NFCA (Nested Feedback Composite Amplifier) which enable it to drive low impedance headphones with the upmost of ease. The L30 also boasts an ultra-low noise level of 0.3uV that blows away similarly priced competitors, while producing a high dynamic range of 141dB with no audible noise or dark backgrounds in sensitive IEMs!

at a glance • Ultra-Low Noise of 0.3uV
• Can drive sensitive IEMs to power demanding headphones
• Amp and Pre-Amp performance numbers provided in the images
• Dynamic Range of 141dB
• Pre-Amp Functionality

The Tech Spec

Features Specification
THD+N @1kHz A-wt <0.00007% @Output=500mW(32Ω)
<0.00006% @Output=80mW(300Ω)
THD @20-20kHz 90kBW <0.0001% @Output=500mW(32Ω)
<0.00009% @Output=80mW(300Ω)
[email protected] OUT 1kHz A-wt 141dB
Dynamic [email protected] A-wt 141dB
Frequency Response 20Hz-40kHz(±0.05dB)
Output Level 26Vpp @G=L
26Vpp @G=M
26VppG=H
AP measured noise [email protected] <0.7uVrms @G=L
<0.7uVrms @G=M
<0.9uVrms @G=H
Actual noise level*@A-wt <0.7uVrms @G=L
<0.7uVrms @G=M
<0.9uVrms @G=H
Channel [email protected] -91dB
IMD [email protected](18kHz+19kHz) -116dB
IMD [email protected](60Hz+7kHz) [email protected]: 1
[email protected]: 1
Input Sensitivity 25Vrms @G=L
9.0Vrms @G=M
3.0Vrms @G=H
Gain -9.9dB @G=L
0dB @G=M
9.5dB @G=H
Output Impedance < 0.1Ω
Output Power 3500mW x 2 @16Ω THD+N<0.1%
2300mW x 2 @32Ω THD+N<0.1%
280mW x 2 @300Ω THD+N<0.1%
Load Impedance >8Ω
Specifications
Product Type Analogue Headphone Amplifier
Max Sample Rate
Connectivity (Input) 1 x 2x RCA Phono (L/R)
Connectivity (Output) 1 x 2x RCA Phono (L/R)
Bluetooth No
Rechargable Battery No
Dimensions not published mm (WxHxD)
Additional Information
Scan Code LN120008
Model Number L30 BLACK
GTIN 2101622579
