Balanced USB DAC
Topping - D10B

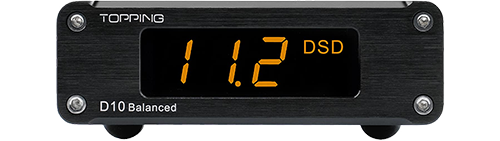

Topping D10B

Balanced Desktop USB DACAfter many requests from the community, Topping are proud to announce the D10B, a balanced variation on the hugely popular D10s. Featuring the very same configuration as that of the D10s, right down to the high-end ES9038Q2M DAC chip, premium XMOS USB receiver, and offering excellent performance. The only difference between the D10s and D10 Balanced is the output options.

On one hand, the Topping D10S is a single-ended DAC with an RCA line-out option, and the D10 Balanced is as the name suggests a balanced DAC with TRS line-out ports. Both the D10s and D10B features the same Coaxial and Optical Digital output options. The latest Topping D10B doesn’t support any adapter to connect single-ended RCA output with the device. Though it supports TRS to 3-pin XLR adapters for balanced XLR line-out connection.

at a glance • High-Performance ES9038Q2M ESS Sabre DAC Chip
• Native DSD256 Decoding & Customised Windows ASIO Drivers
• Balanced TRS Line-Out & Digital Coaxial & Optical Output
• PCM Decoding up to 32-Bit/384kHz
• XMOS XU208 USB Processor

what's included? • Topping D10B Balanced DAC
• 6.35mm TRS to XLR adaptor
• Warranty card
• User manual
• USB cable

Incredible Features At An Incredible Pricepoint!

Ultimate Power Of Sabre DAC ChipTopping D10B adopts the famous ES9038Q2M DAC chip from ESS Sabre Technologies. It is a premium reference-grade 32-Bit DAC chip with low-power requirements and high-quality audio signal decoding characteristics. It helps the D10B to achieve ultra-low distortion ratings that go as low as 0.00012%. Topping D10B provides the ultimate performance in terms of audio signal decoding with the help of this powerful DAC chip.

Your Balanced USB DACTopping D10B offers a balanced TRS line-out option. Users can also use the included 6.35mm TRS to 3-Pin XLR adapters in the package to connect 3-Pin XLR cables for balanced output to balanced amplifiers in your chain and make a completely balanced headphone/speaker setup. Please note that the D10B doesn’t support single-ended connections, so please don’t use any adapters with it.

Premium XMOS USB Signal Receiver ChipEquipped with a high-performance XMOS XU208 USB Processor chip, the Topping D10B supports high-resolution audio signal decoding with 32-Bit/384kHz PCM and native DSD256 support. With the help of customized Windows ASIO drivers unlock the full potential of D10B with high-resolution signal decoding.

Automatic Power-On/OffTopping D10B doesn’t need any external power source. It takes its power through the connected USB source as it has very low power requirements. It automatically turns on/off whenever you turn your PC on or off. It supports compatibility across various systems, one can simply plug and play it on Windows, Mac, or Linux devices. Please note that Android and iOS are not compatible due to insufficient OTG current.

The Tech Spec

Features Specification
Display LED
Digital output OPT/Coax
Line out output 6.35 TRS (note: no single-ended output)
Signal input USB
Max sampling rates USB: 32-bit/384kHz, DSD128(Dop), DSD256(Native)
Opt/Coax: 24-bit/192kHz, DSD64(Dop)
[email protected] A-wt <0.00012%
THD <0.00015% @20-20kHz
[email protected] A-wt 125dB
Dynamic [email protected] A-wt 125dB
Frequency response 20Hz-20kHz (±0.2dB)
Output level 4.2Vrms @0dBFS
Noise <2.4uVrms
Channel crosstalk @1kHz -141dB
Channel balance 0.3dB
Output impedance 88Ω
Power input DC5V/0.5A (USB power supply)
Dimensions 4 x 5.7 x 1.4” (10.3cm x 14.6cm x 3.6cm)
Weight 0.74lbs (340g)
Specifications
Product Type DAC
Max Sample Rate 384kHz
Connectivity (Input) 1 x USB Input
Connectivity (Output)
  • 2 x 6.35mm Stereo Jack - Line Level
  • 1 x SP/DIF - Coaxial
Bluetooth No
Rechargable Battery No
Dimensions 103 x 36 x 146 mm (WxHxD)
