Thermaltake View 71 Tempered Glass Full Tower PC Gaming Case

Thermaltake View 71 Full Tower Computer Chassis, w/ 4x Tempered Glass Windows, EATX/ATX/mATX/mITX, 2x140mm Blue LED Fans

ThermalTake
Scan code: LN84313 Manufacturer code: CA-1I7-00F1WN-00 Request call
£169.99Item due on 28 September 2017
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £9.58 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

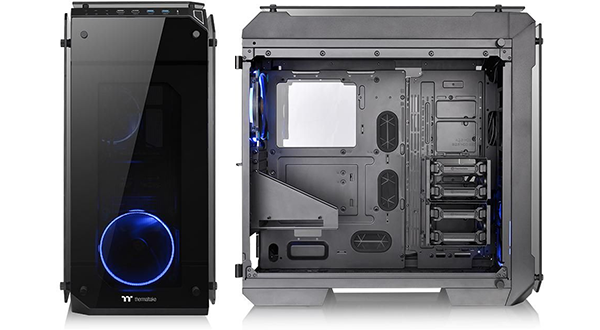

Product Overview Designed to expand the legacy of the View Series line-up, the View 71 Tempered Glass Edition Full Tower Chassis features unrivalled cooling support and expandability surrounded in tempered glass for a one of a kind view. Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Preinstalled with two 140mm Riing Blue fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination. Features TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

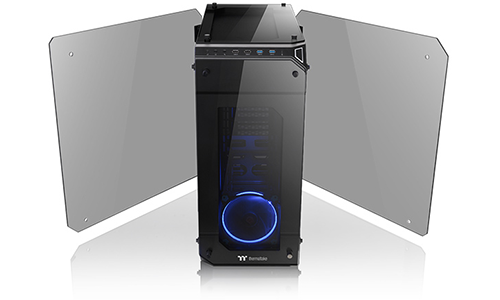

Four-Sided 5mm Thick Tempered Glass Panels with Swing Door Design
Premium-quality 5mm thick tempered glass guarantees the durability of the window and adds overall strength to the chassis. Swing Doors on either side allows users to demonstrate their DIY spirit and enjoy the ultimate internal component visibility. Take on easy to install building with a fully modular design and easy removal of swing door for full access.

Make the Move to Modular Design
The View 71 TG Edition enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.

Tool-Free Installation
Innovative 3.5” and 2.5” tool-free drive bay design minimizes the hassles of installation/removal, allowing users to freely interchange the 3.5” and 2.5” storage drives to secure and store with ease.

High-End Complete Solution
The View 71 TG Edition allows users to build a complete high-end system that supports motherboards up to standard E-ATX with high-wattage PSU up to 220mm length. With extended graphic card support (up to 410mm), the case simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Modular HDD cage design offers more flexibility for custom cooling loops to take advantage of high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating enthusiast grade liquid cooling systems.

Riser GPU Support Bracket
Specially designed for dual GPU placement options, the View 71 TG Edition has the support for vertical graphic card layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic card from sagging, but also helps to reduce the weight on the motherboard PCI-E slots.

Thermaltake TT Premium PCI-E 3.0 Extender (Optional)
Supports a wide range of GPU solutions with ultra-excellent quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.
*PCI-e riser cable is optional, not included, & available separately. *VGA width limitation when using with GPU bracket: 68mm (3.4 expansion slot reference).

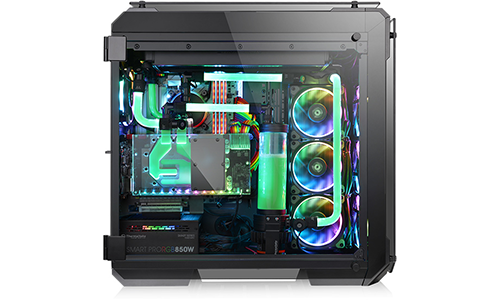

AIO/DIY Liquid Cooling Capable
The View 71 TG Edition features its roomy installation space for advanced AIO/DIY liquid cooling components. The case is natively supported for all types of AIO liquid cooling solutions. The case has the capability to house up to triple 420mm DIY liquid cooling radiator fitment and up to 360mm AIO liquid coolers. Most importantly, the case design is optimized for providing users a quick way to access the drain valve without having to turn around the entire PC when evacuating coolant from the loop.
*Radiator configurations and compatibility may vary depending on radiator size and thickness.

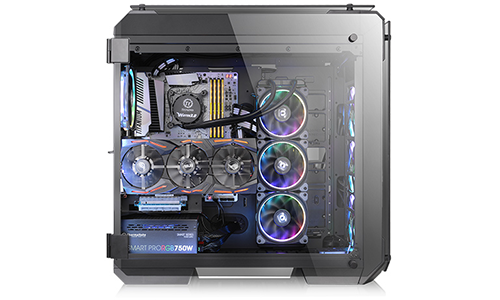

Vertical Radiator View (VRV)
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.
*Recommended to use Thermaltake’s all-in-one liquid cooler when applying vertical AIO radiator mounting.

Advanced Ventilation
With wide top-to-bottom side ventilation grills, the View 71 TG Edition maximizes airflow with two built-in 140mm Riing Blue fans. Including options for up to three 120mm or two 140mm front fans, combined with two bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with one rear fan and three sectional top mounts to manage proper air flow in and out.

Includes 2x Thermaltake Riing 14 LED Blue Fans
140mm high-static pressure fans with a patented blue LED rings.
Specifications
Case Edition View 71 Tempered Glass Edition
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Material SPCC / Tempered Glass
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5"/ 3.5" Internal (Accessible)
  • 3 x 2.5"/ 3.5" Internal (Hidden)
Expansion Slots 8+2
Fan Bays
  • 6 x 120/140mm
  • 2 x 120mm
Fans Included 2 x 140mm w/ Blue LEDs
Front Radiator Compatibility 1 x 120/140/240/280/360/420mm
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility 1 x 120/240mm
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility 1 x 120/140/240/280/360/420mm
Window Yes
Power Supply Form Factor ATX
Max PSU Length 220 mm
Max CPU Cooler Height 190 mm
Max VGA Card Length 310/410 mm
Colour Black
Dimensions 274 x 592 x 577 (WxHxD mm)
Weight 18.9 kg (Approx)
