S100 Tempered Glass Black Micro Chassis by ThermalTake

S100 Tempered Glass by Thermaltake

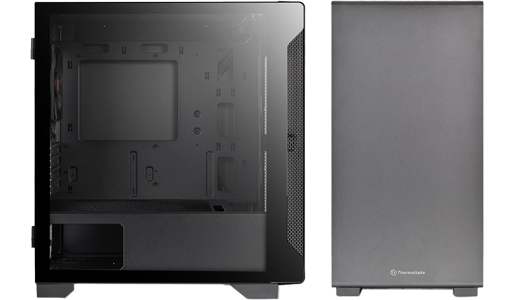

Elegance and Sophistication Housed in Modern Steel The S100 Tempered Glass mid-tower chassis combines sophistication and elegance in a modern steel case construction. The S100 TG is designed to be even more compact and utilises the key features of S Series chassis and is manufactured with a tempered glass side panel to give you surreal panoramic views of your chosen build and includes one preinstalled 120mm standard fan at the rear for fundamental ventilation and can support up to Micro-ATX motherboards. The flexibility is limitless for high-end components. The S100 TG Micro Chassis is a great fit for users who are looking for a budget friendly and stylish chassis.

High Quality Products You Can Rely On

tt lcs certified

TT LCS CERTIFIED Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Take Pride in your Craft

Tempered Glass Side Panel

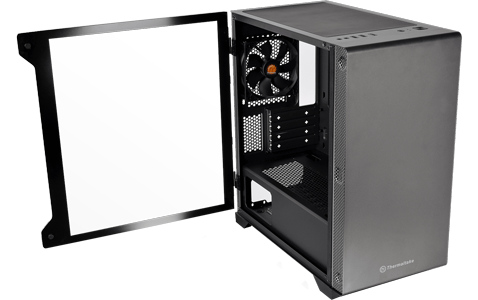

Durable Tempered Glass Side Panel The S100 boasts a 4mm tempered glass window that is built to be more durable, scratch resistant and to provide you with a clear view of your build. Show off your own style and make even the most seasoned enthusiasts envious of your style, your craft, your system.

Build it your way!

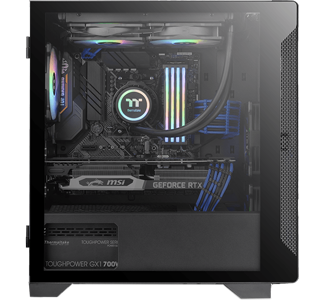

Complete System Build Example

Maximum Expandability Gives you Greater Choice S100 TG has excellent expandability. It can support a CPU cooler with a maximum height of 165mm, VGA up to 330mm long, and a full length power supply of up to 160mm. The case comes with a preinstalled 120 mm rear exhaust fan optimized for excellent cooling capabilities. S100 TG is able to house up to two 140mm or Three 120mm fans at the front and a radiator of up to 280mm at the front and on the top to allowing users to build their desired high-end system.

Cooler Height

Cooler
Height
Max Height 165mm

Motherboard compatiblity

Motherboard CompatibilityMicro-ATX, Mini-ITX

Max Length PSU

PSU
Length
Max Length 160mm

Max Length GPU

GPU
Length
Max Length 330mm

Connections at your Fingertips

Handy I/O Ports One 3.0 USB and two 2.0 USB ports and HD audio ports on the top-front panel to grants direct access when needed.

USB 3.0

1x USB 3.0

USB 2.0

2x USB 2.0

Mic and Headphone Port

Headphone Out

Mic and Headphone Port

Microphone In

Specifications
Core Chassis Specifications
Case Edition S100 TG
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 2 x USB 2.0
  • 1 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 4 x 120mm / 4x 140mm
  • 1 x 200mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 240/280mm
Top Radiator Compatibility 1 x 240/280mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 330 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Front
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 160 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic / Tempered Glass
Dimensions 220 x 411 x 411 (WxHxD mm)
Weight 5.8 kg (Approx)
