Level 20 XT RGB Cube Gaming Case by Thermaltake

Thermaltake Level 20 XT Case

BUILD THE ULTIMATE COOLING MACHINE The Level 20 XT is a cube case that has been specially designed to flaunt extreme liquid cooling systems. It offers a unique flat motherboard design that puts your components on display from any angle, and a split-level, chambered design that separates cooling, PSU and hardware components into upper and lower sections. This one-of-a-kind case can house up to E-ATX motherboards and can be fitted with RGB fans so you can construct a truly unique and vibrant system that can house incredible cooling solutions. The Level 20 XT has four tempered glass panels, to show off the inside of the build, and a wealth of versatile air and liquid cooling options so you can give your system fantastic temperature control and ultimately gain greater performance.

Put your System on Display for Everyone to See

Level 20 System Design

FOUR SLEEK TEMPERED GLASS PANELS The Level 20 XT houses four durable tempered glass side panels, on the front, top and both sides of the chassis so you can put your incredible build on display for people to see. The ultra-durable 4mm tempered glass offers great resistance to dust and scratches more than cases with acrylic panels.

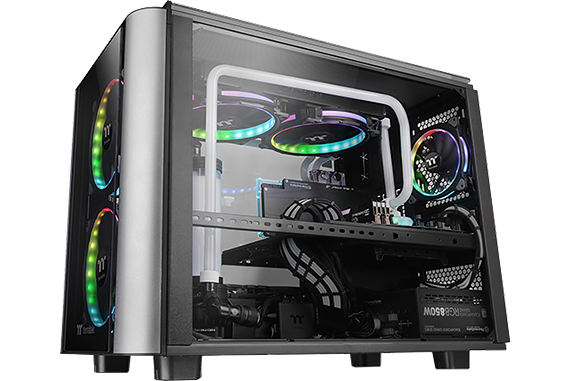

Innovative Design to get the Best from your System

dual chamber design

INTUITIVE CHAMBER DESIGN Thermaltake's Level 20 XT carries over the innovations of earlier cube case designs by splitting the chassis into two chambers. The upper chamber houses the motherboard tray, GPU and other PCI-E cards, while the lower chamber houses the power supply, storage devices and cooling elements.

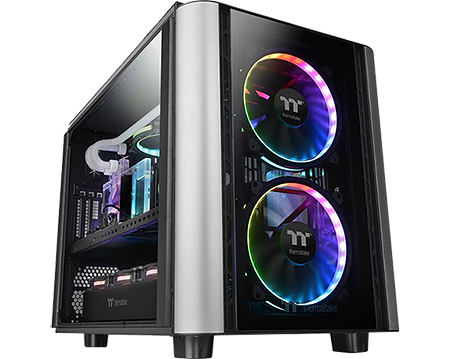

Incredible Solutions for Enhanced Airflow

level 20 xt fans

FAN PLACEMENT AND THREE FILTERS This versatile chassis is preinstalled with one 140mm rear fan. Level 20 XT allows users to build a completely high-end system with ample room for up to two front 200m fans on the front and top, up to two 140mm fans on the rear, up to three 120mm on the bottop and up to three 140mm fans on the right or left side. Removable dust filters on the top, front and bottom also provide reduced dust and better airflow.

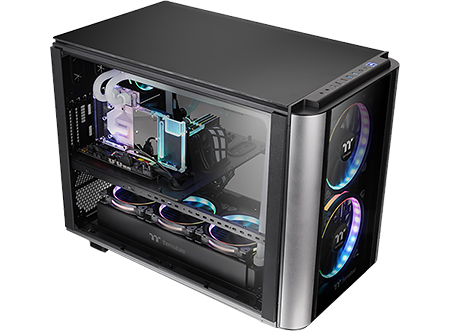

Superior Hardware and Liquid Cooling Support

level 20 xt hardware

PLENTY OF SPACE FOR ALL YOUR COMPONENTS Level 20 XT supports up to E-ATX motherboards, CPU coolers up to 250mm in height, VGA lengths up to 400mm and PSU sizes up to 220mm in length. The XT also supports up to 480mm radiators, with mounting positions along the top, the front, or along either side in the lower chamber, proving the Level 20 XT as a top contender when it comes to versatility when building.

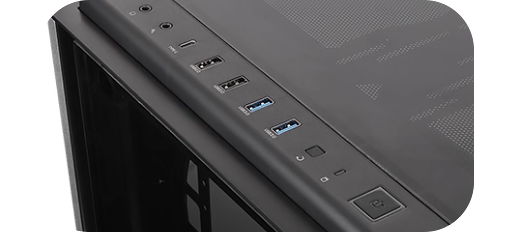

Level 20 XT Connection Ports

thermaltake lvl 20 ports

high-speed USB ports for every task The speedy USB on the I/O panel located on the side of the case offers two USB 3.0, two USB 2.0 and one Type-C port to give you easy access for speedy transmission and data transfer, along with a convenient place to plug in your peripherals and devices.

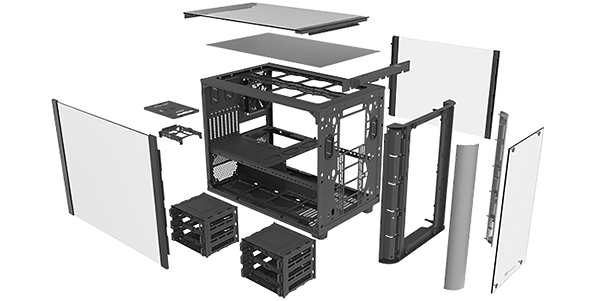

Experience Building in a New Way

building design

DISMANTABLE MODULAR DESIGN The Level 20 XT features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with Dismantlable Modular Design.

Core Chassis Specifications
Case Edition Level 20 XT
Case Form Factor E-ATX Cube
Motherboard Form Factor
  • ATX
  • E-ATX (12" x 13")
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 1 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen1 Type-C
Drive Bays
  • 1 x 2.5" Internal (Hidden)
  • 6 x 2.5"/ 3.5" Internal
  • 3 x 2.5"/ 3.5" Internal (Hidden)
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
  • 1 x 120/240/360mm
  • 1 x 140/280mm
Top Radiator Compatibility
  • 2 x 120/240/360/480mm
  • 2 x 140/280/420mm
Bottom Radiator Compatibility
  • 1 x 120/240/360/480mm
  • 1 x 140/280/420mm
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
  • 1 x 120/240/360/480mm
  • 1 x 140/280/420mm
Max CPU Cooler Height 250 mm
Max GPU Card Length 590 (without ODD Cage) mm
Cable Routing Space 220 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Front
  • 1 x Main Side
  • 1 x Top
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SPCC
Dimensions 394 x 515 x 623 (WxHxD mm)
Weight 20.4 kg (Approx)
Please Note
Additional Information
Scan Code LN90992
Model Number CA-1L1-00F1WN-00
GTIN 1100100000433

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
Manufacturer Contact Details
Thermaltake Level 20 XT E-ATX Cube Case, mATX, mITX, Black, USB 3.0 x 2,USB 2.0 x 2, 4mm Tempered Glass Panels x 4 is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Very heavy duty case This is a brilliant case for a heavy duty custom build. This is not the sort of case you go to for a gaming PC, it is something to use when all else has failed - or just isn't up to the job. I'm currently in the middle of a ML workstation build using the 20XT. A dual Xeon motherboard and 1/2 TB of memory paired with three high end GPUs mean a serious water-cooling solution with dual custom loops. The 8 SSDs will also need to be accommodated and a plan to add 8 HDDs means I need to save space for later. I have done quite a bit of modding with a new bulk-head, custom mounts for disks, pumps, radiators and reservoirs as well as stripping out half the fashionable but impracticable tempered glass to improve the cooling. No case on the market would have been perfect off-the-shelf for what I needed but this thing begs to be modified and features like the removable motherboard plate (also modified for the non-standard motherboard stand-offs) make it a pleasure to take power tools to it! This is not a case for people keen on LEDs. This is a case for people with a problem to solve and there is no better place to start than with the Level 20 XT!
Date published: 2020-08-13
Rated 5 out of 5 by from covid-19 change build got bored with this self isolating and decided to change my build, and while I was at it Ichanged the mobo as well
Date published: 2020-04-15
Rated 5 out of 5 by from The Level 20 XT is a must have case I got this case for the Thermaltake UK modding trophy 2018, the case is very easy to work with and can be formed in many varients to show off your custom water cooling loops. This enormous E-ATX chassis lays the motherboard down horizontally allowing you to install a vertical gpu. All the internal parts are easy to remove or place where required for custom air or liquid cooling. All the tempered glass panels are removable and easy to fit the case has a top quality look and feel to it.
Date published: 2019-01-08
