Thermaltake Level 20 VT micro-ATX Case

Thermaltake Level 20 VT Cube micro-ATX/ITX, Black, USB 3.0 x 2,USB 2.0 x 2, 4mm Tempered Glass Panels x 4

Thumbnail 1 : Thermaltake Level 20 VT micro-ATX Case Thumbnail 2 : Thermaltake Level 20 VT micro-ATX Case Thumbnail 3 : Thermaltake Level 20 VT micro-ATX Case Thumbnail 4 : Thermaltake Level 20 VT micro-ATX Case Thermaltake Level 20 VT micro-ATX Case : video thumbnail 1 Thermaltake Level 20 VT micro-ATX Case : video thumbnail 2 Thermaltake Level 20 VT micro-ATX Case : video thumbnail 3
Scan code: LN90984 Manufacturer code: CA-1L2-00S1WN-00
£98.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Level 20 Series which commemorates 20 years of dedication to the PC industry. The Level 20 VT is the pocket rocket of the Level 20 series, offering massive support inside an M-ATX footprint.

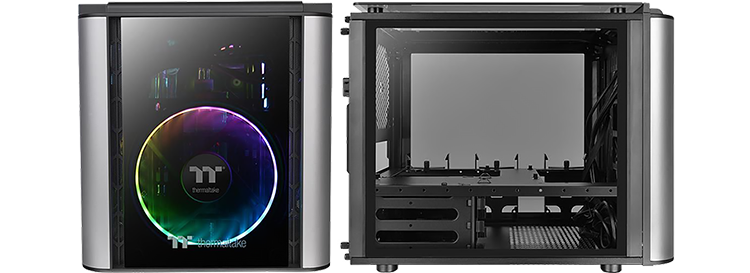

The Level 20 VT is designed to prove that micro cases don’t have to be small on power. It boasts a 200mm fan preinstalled at the front as well as great liquid cooling support, four 4mm tempered glass panels and interchangeable panels with filters. The VT also has a split-level design with a flat motherboard tray that lets you hide away cables, while showing off liquid cooling hardware at the top. The Level 20 VT takes our latest case innovations and wraps them in an ultra-modern, space-conscious style that’s utterly unique in the case market today.

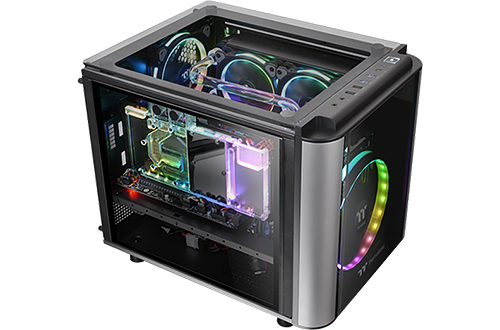

The Level 20 VT is all about big things coming in small packages. The VT supports M-ATX motherboards, as well as CPU coolers up to 185mm in height, VGA lengths up to 350mm and PSU sizes up to 200mm in length. It also supports up to two 240mm radiators side-by-side in the top panel, or one 280mm at the top or along the side. Meaning you can fit plenty of top-end hardware in this little case.

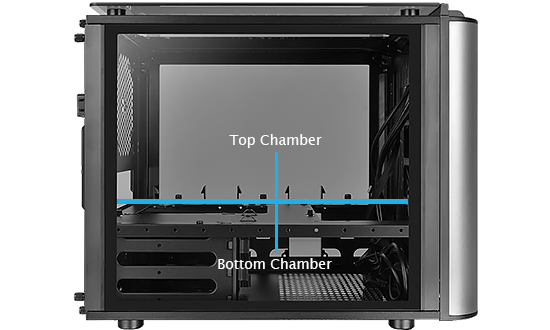

The Level 20 VT is optimized for space management. It’s divided into two main chambers: the upper chamber is made to house the motherboard and PCI-E components, while the lower one is made for the PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to fit larger components or build a custom liquid cooling loop.

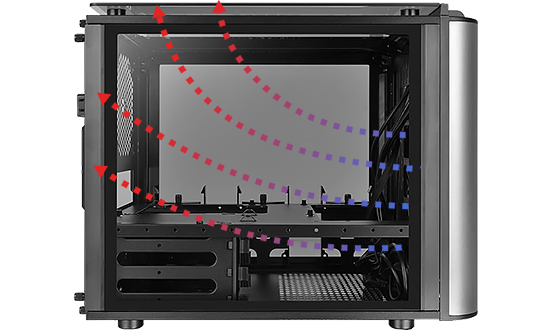

The Level 20 VT comes preinstalled with one 200mm front fan and boasts space for up to two front 140mm fans, one 140mm rear fan and two 140mm fans on the top. If you’re building a liquid cooling system, it can also handle 280mm, 240mm, 140mm and 120mm radiators. Intake areas are also protected by removable dust filters, installed in the front, top and bottom of the case to shield your hardware from particles in the air.

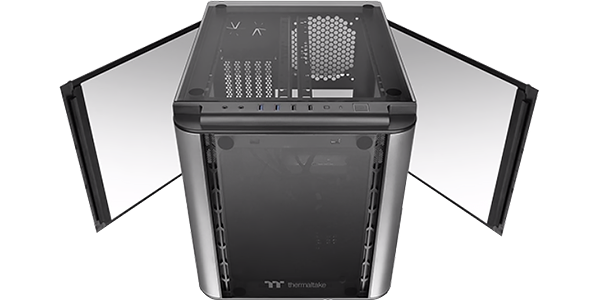

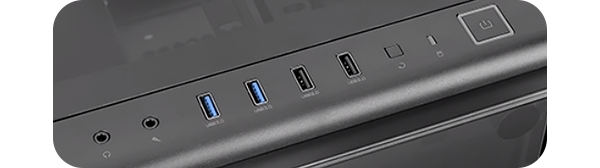

The front, top and side panels are all built from our ultra-durable 4mm tempered glass. This means the panels are more resistant to dust and scratches than acrylic and provide a clearer view of internal components. The side I/O ports features two USB 3.0 and two USB 2.0 to grant users easy access for speedy transmission. Features
- Model: Level 20 VT
- P/N: CA-1L2-00S1WN-00
- CHAIR TYPE: Micro Case
- Dimension (H x W x D): 348 x 330 x 430 mm (13.7 x 13 x 16.9 inch)
- Net Weight: 8.66 kg / 19.09 lb
- Side Panel: 4mm Tempered Glass x 4(Left & Right & Front & Top)
- Colour: Exterior & Interior - Black
- Material : SPCC
- Cooling System: Front (intake): 200 x 200 x 30 mm fan (800rpm, 13dBA)
- Drive Bays: Hidden - 3.5’’ or 2.5” x 3 , 2.5’’ x 3
- Expansion Slots: 5
- Motherboards: 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX)
- I/O Port: USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1
- PSU: Standard PS2 PSU (optional)
- Fan Support: Front - 2 x 120mm, 2 x 140mm, 1 x 200mm, Top - 4 x 120mm, 2 x 140mm, Rear - 1 x 120mm, 1 x 140mm, Bottom - 2 x 120mm
- Radiator Support: Front - 1 x 240mm, 1 x 140mm, 1 x 180mm(200mm series), Top - 2 x 240mm, 1 x 280mm, 1 x 180mm(200mm series), Rear - 1 x 120mm
- Clearance: CPU cooler height limitation - 185mm, VGA length limitation - 350mm, PSU length limitation - 200mm (With Bottom Fan)
Specifications
Core Chassis Specifications
Case Edition Level 20 VT
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal (Hidden)
  • 3 x 2.5"/ 3.5" Internal (Hidden)
Standard Expansion Slots 5
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120/140/200mm
  • 5 x 120/140mm
  • 2 x 120mm
Fans Included
  • 1 x 140mm w/ RGB LEDs
  • 1 x 200mm w/ RGB LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
  • 1 x 140mm
  • 1 x 240mm
Top Radiator Compatibility
  • 2 x 240mm
  • 1 x 280mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 185 mm
Max GPU Card Length 350 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Front
  • 1 x Main Side
  • 1 x Top
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 200 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC
Dimensions 330 x 348 x 430 (WxHxD mm)
Weight 8.66 kg (Approx)
