Scan code: LN90986 Manufacturer code: CA-1K9-00F1WN-00

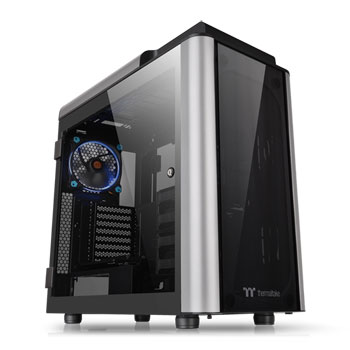

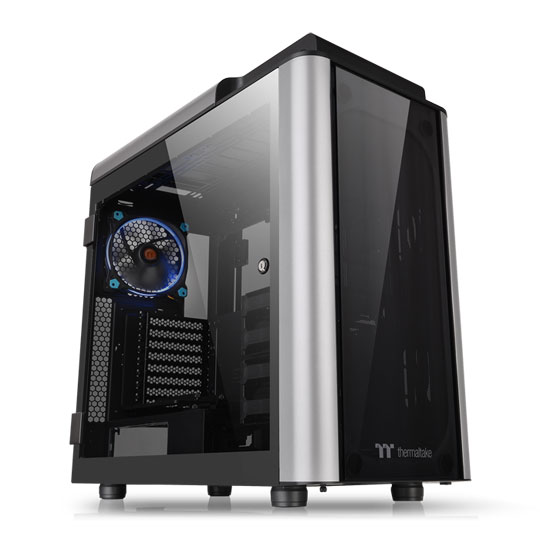

Thermaltake Level 20 GT Full Tower Chassis

ThermalTake Level 20 GT, Black, Full Tower Chassis with Window/s, ATX E-ATX MicroATX Mini-ITX, 1x140mm Fan,USB 3.0/2.0

Thumbnail 1 : Thermaltake Level 20 GT Full Tower Chassis Thumbnail 2 : Thermaltake Level 20 GT Full Tower Chassis Thumbnail 3 : Thermaltake Level 20 GT Full Tower Chassis Thumbnail 4 : Thermaltake Level 20 GT Full Tower Chassis
Scan code: LN90986 Manufacturer code: CA-1K9-00F1WN-00
£176.99
From £15.89 / month (APR 14.9%)
Monthly Payment: £30.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £176.99
Total inc. interest: £184.27
Monthly Payment: £15.89
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £176.99
Total inc. interest: £190.67
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

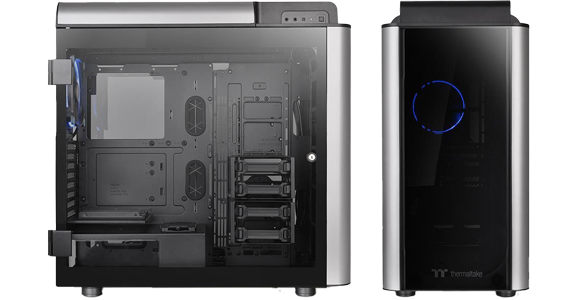

Product Overview The level 20 GT is our new premium full tower in the Level 20 range. The Level 20 GT features E-ATX motherboard support, four tempered glass panels with a lockable hinged door design, the latest I/O port options (USB Type-C™ & USB 3.0), an all-new rotating PCI-E slot system, and removable power supply shroud.

The Level 20 GT takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today.

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Advanced Ventilation
The Level 20 GT gives users the option to build either a complete high-end air or liquid cooled system, with extensive support for either.The GT comes with one 140mm fan installed, but has space for up to 8 case fans, as well as support from 120mm all the way up to 420mm radiators.
Intake areas are also protected by removable dust filters, installed in the front, top and bottom of the case to shield your hardware from particles in the air.

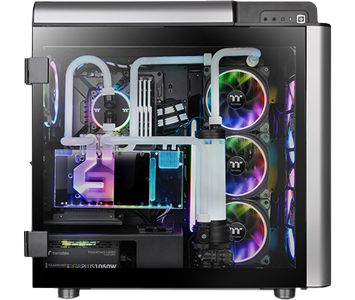

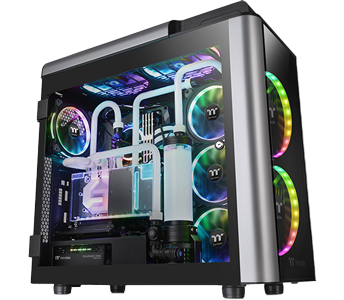

Superior Hardware and Liquid Cooling Support
The Level 20 GT supports up to E-ATX motherboards, CPU coolers up to 200mm in height, VGA lengths up to 310mm and PSU sizes up to 220mm in length. On top of this, the GT is also fully capable of housing a complete liquid cooling system, including our range of PR-22 pumps and RGB Plus hardware.

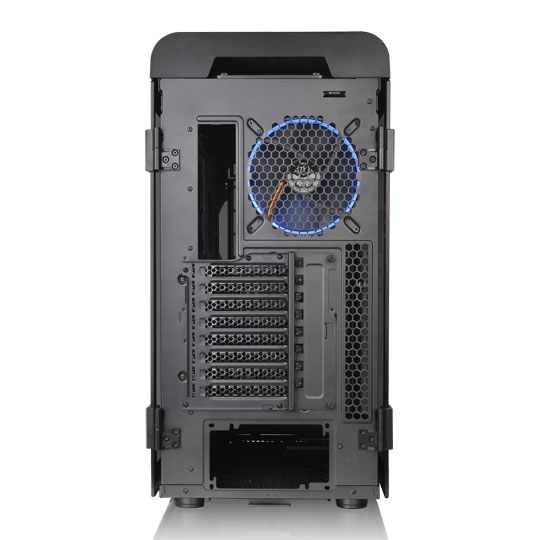

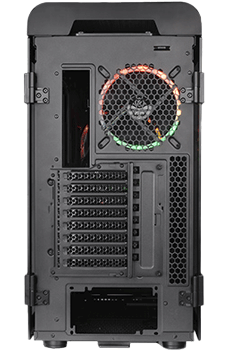

Patented Rotational PCI-E Slot Design
Our brand new rotational PCI-E system allows you to stack multiple GPUs either vertically or horizontally, depending on how you want to build your system.

Vertical Radiator Placement
Whether you’re building a custom loop or running an AIO CPU cooler, the Level 20 GT lets you mount your radiator against the back panel to show off your RGB fans. The back panel provides adequate exhaust while putting your RGB fans on display, with support for up to a 420mm radiator as well as radiator support on the front and top of the chassis.

Power Cover Design

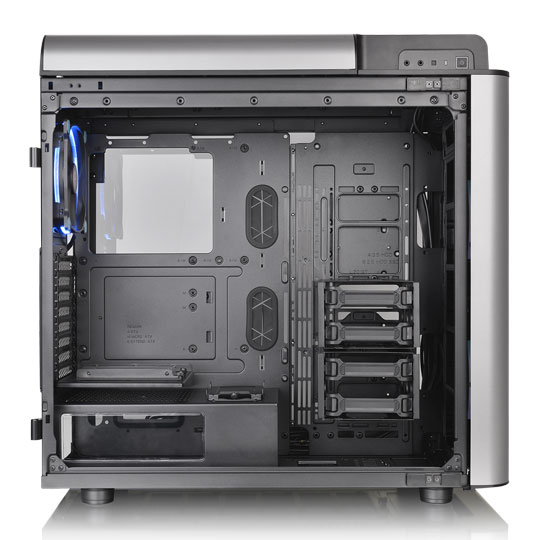

Level 20 GT is designed with a removable power cover, which can be used to organize unused cables to make for a tidy-looking system.

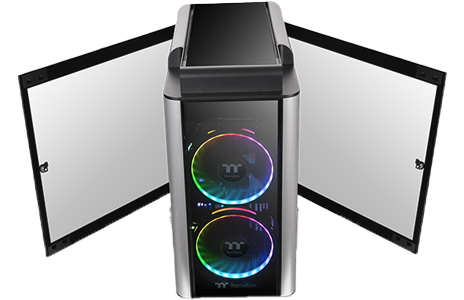

Four Tempered Glass Panels
The Level 20 GT boasts tempered glass panels on the front, top and both sides. The left and right hinged doors are also equipped with smart lock security systems to secure the inner components of your case.

Modern I/O Support (USB Type-C™ & USB 3.0)
The top-right panel features two USB 3.0 and two USB 2.0 data transfer ports, along with one USB 3.1 Type-C port.

DMD: Dismantlable Modular Design

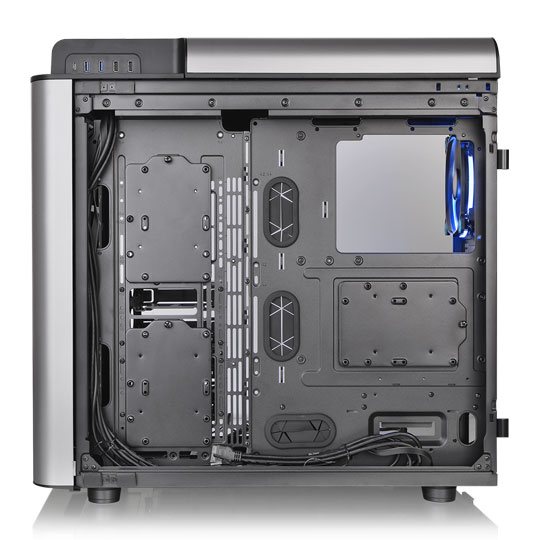

Strip your case down to the bones and install elements when and as you need them with our modular design. The level 20 GT features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Features • Tempered Glass Swing Door Panels With a Lockable Hinged Door Design
• Preinstalled with One 140mm Fan But Has Space For Up To 8 Case Fans
• 8 Patented Rotational PCI-E slots Design
• 2 x USB 3.0, 2 USB2.0, 1 x Type-C
• 4+3 Drive Bays with Modular Drive Racks Design
• AIO/ DIY Liquid Cooling Capable up to 360mm Radiator
• Supports Up To E-ATX Motherboard
• Mount Your Radiator Against The Back Panel To Show Off Your RGB Fans
Specifications
Core Chassis Specifications
Case Edition Level 20 GT
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen1 Type-C
Drive Bays
  • 4 x 2.5"/ 3.5" Internal
  • 6 x 2.5"/ 3.5" Internal (Hidden)
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 9 x 120mm
  • 7 x 140mm
  • 4 x 200mm
Fans Included 1 x 140mm w/ Blue LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 360/420mm
Top Radiator Compatibility 1 x 360/420mm
Bottom Radiator Compatibility 1 x 240mm
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility 1 x 360/420mm
Clearances
Max CPU Cooler Height 200 mm
Max GPU Card Length 410 (Without HDD Rack) 310 (With HDD Rack) mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Front
  • 1 x Main Side
  • 1 x Top
Window Construction Tempered Glass (Clear)
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included LED Fan/s
LED Lighting Colour Blue
LED Lighting Support & Control Control via Inc. Controller/Hub (Software Control)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC
Dimensions 294 x 580 x 592 (WxHxD mm)
Weight 18.9 kg (Approx)
