Scan code: LN78209 Manufacturer code: CA-1F8-00M1WN-02

Core X71 Thermaltake Tempered Glass Full Tower Water Cooling Gaming Case

ThermalTake Core X71 TG Edition Computer Chassis, Tempered Glass, Dual Chamber and Fully Modular, 2x USB 3.0, w/o PSU

Thumbnail 1 : Core X71 Thermaltake Tempered Glass Full Tower Water Cooling Gaming Case Thumbnail 2 : Core X71 Thermaltake Tempered Glass Full Tower Water Cooling Gaming Case Thumbnail 3 : Core X71 Thermaltake Tempered Glass Full Tower Water Cooling Gaming Case Thumbnail 4 : Core X71 Thermaltake Tempered Glass Full Tower Water Cooling Gaming Case
Scan code: LN78209 Manufacturer code: CA-1F8-00M1WN-02
£149.99
From £13.47 / month (APR 14.9%)
Monthly Payment: £26.03
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £156.17
Monthly Payment: £13.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £161.58
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Jul 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

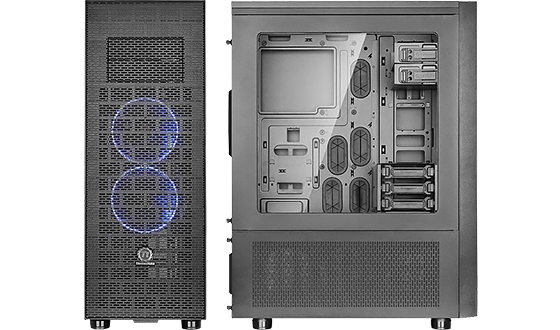

Product Overview Thermaltake Core X71 Tempered Glass Edition Full Tower Chassis
The new Core X71 Tempered Glass Edition full tower chassis by Thermaltake features an enlarged 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, two preinstalled 140mm Riing Blue fans, and its groundbreaking interior design that offers full assembly capacity and expandability for PC enthusiasts to create an advanced or a massive liquid cooling system. The Core X71 is an ideal choice for those who are looking for a chassis with superior expansion and unparalleled cooling performance!

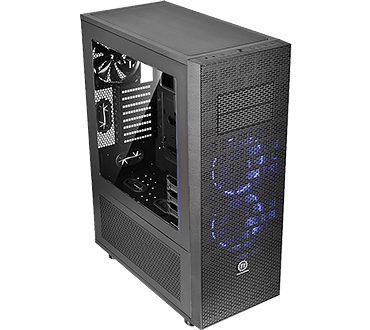

Features 4mm Thick Tempered Glass Window with Gorgeous View
The tempered glass features 4mm thickness that guarantees the durability of the window. Moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!

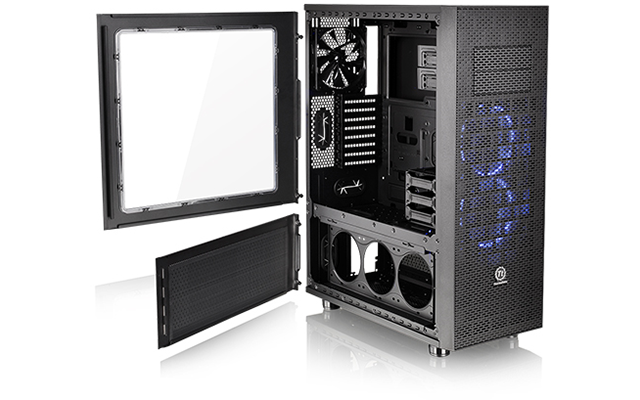

Space-Optimized Dual Chamber Design
Optimized for space management, the Core X71 utilizes dual chamber design to offer a tidy looking system by separating the liquid-cooling loop, and PSU and HDD cages into a different chamber. The removable 3.5”/2.5” drive device racks give assemblers plenty of flexibility to gain the maximum interior space needed for advanced cooling performance.
*When placing the PSU at the lower chamber, 8 Pin power extension cable may be required.

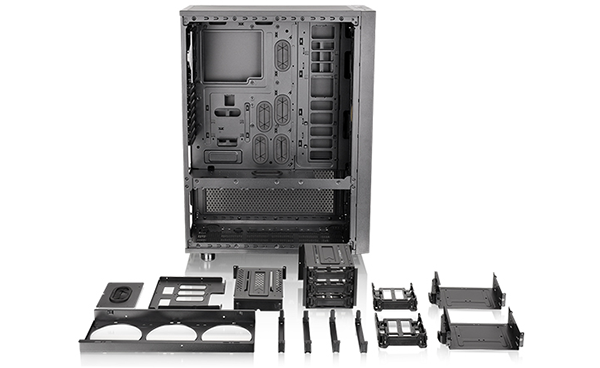

Fully Modular Concept
A “2 + 5” drive bay design for storage devices makes setting up the latest storage solution super easy and flexible. Besides hanging 2 x 3.5”/2.5” at the back of motherboard tray, users are also capable of freely adjusting the 3.5” drive cages within the upper chamber or to the lower chamber to suit their particular needs.

Riser GPU Support Bracket
Specially designed with dual GPU placement, the Core X71 has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.

Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.

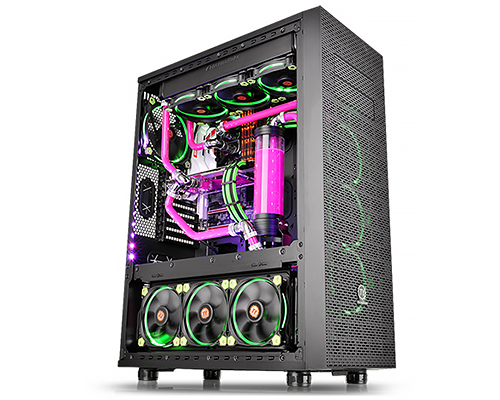

Superior Expandability
Designed for high-end gaming system compatibility, the Core X71’s modular drive racks allow users to easily install up to seven data storage devices, a dual expansion slot VGA of up to 420mm in length, and a tower CPU cooler as high as 180mm. Even with a high-wattage PSU stretching to 220mm in length, the Core X71 still leaves plenty of interior space for cable management. Moreover, a 480mm radiator can be installed at front of the chassis, delivering superior cooling performance.

Ideal for Advanced Cooling Solutions
Featuring a width of 250mm, the Core X71’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Users can install up to 480mm radiator at the front and a 360mm radiator on each side in the lower chamber. Additionally, the Core X71 comes with two 140mm Riing Blue fans at front and a 140mm fan at the rear to optimize system ventilation.

Patented Riing 14 LED Blue – A 140mm patented blue LED Ring radiator fan with high-static pressure design.
Specifications
Core Chassis Specifications
Case Edition Core X71 Tempered Glass Edition
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5"/ 3.5" Internal
  • 2 x 2.5"/ 3.5" Internal (Hidden)
  • 2 x 5.25" External
Standard Expansion Slots 8+2
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 280/360mm
Top Radiator Compatibility 1 x 280/360mm
Bottom Radiator Compatibility 1 x 120/240mm
Rear Radiator Compatibility 1 x 120/240mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 278/420 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 180/220 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Tempered Glass
Dimensions 677 x 250 x 511 (WxHxD mm)
Weight 12.7 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
