Thermaltake Core P8 Full Tower Tempered Glass PC Gaming Case

Thermaltake Core P8, Black, Full Tower Chassis w/ Tempered Glass Windows, USB Type-C, E-ATX/ATX/MicroATX/Mini-ITX

Thumbnail 1 : Thermaltake Core P8 Full Tower Tempered Glass PC Gaming Case Thumbnail 2 : Thermaltake Core P8 Full Tower Tempered Glass PC Gaming Case Thumbnail 3 : Thermaltake Core P8 Full Tower Tempered Glass PC Gaming Case Thumbnail 4 : Thermaltake Core P8 Full Tower Tempered Glass PC Gaming Case
Scan code: LN108961 Manufacturer code: CA-1Q2-00M1WN-00
£199.99
Order now and get it tomorrow, Wed 23rd Sep
From £8.34 / month (APR 0%)
Monthly Payment: £16.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £199.99
Monthly Payment: £8.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £199.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 23rd Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

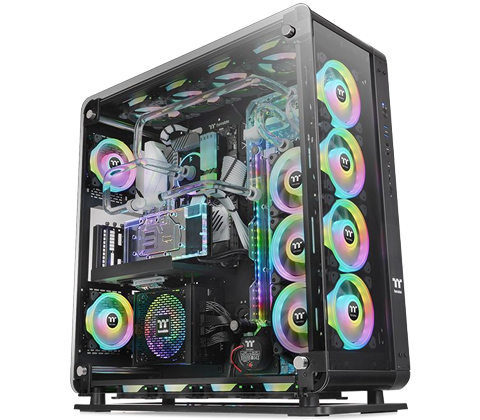

Core P8 Tempered Glass Full Tower Chassis

All combine in one, the Core P8 Tempered Glass Full Tower Chassis can be transformed between the two forms effortlessly and is the newest member to the Thermaltake iconic open frame Core Series. The Core P8 TG features a fully modular design, Rotational PCI-E Slots, support for 120mm or 140mm fans, and removable filters, remarkable expansion for high-end PC components. The Pacific Core P5 DP-D5 Plus Distro-Plate with pump combo is also installable with this case, giving you plenty of options to display your liquid cooling. The Core P8 TG is a great fit for users who are looking for a unique PC case.


TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.


Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.


Built for Makers

By practicing and incorporating the idea of the “maker movement” as well as 3D printing, Thermaltake designs the open frame panoramic viewing chassis as anyone can access and do his/her own mods as well as print out his/her own ideas using available liquid cooling components and manuals without boundaries.

Users can download 3D printing accessory files on 3D Makers Microsite, printing them out to do a special mod.


Transformable Full Tower Chassis

The Core P8 TG can be transformed into an open frame chassis once the front and top tempered glass panels are removed.

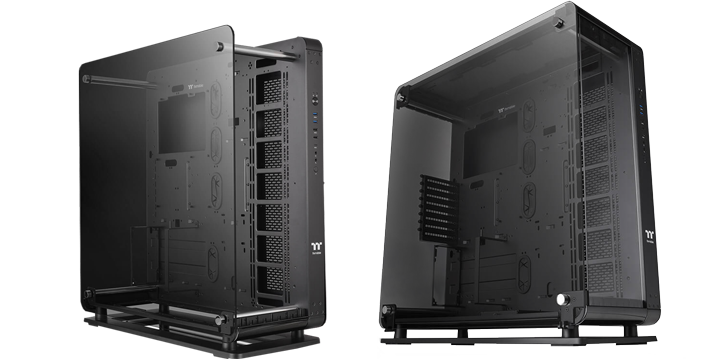

4mm Thick Tempered Glass Window with Stunning Viewing

The Core P8 TG features three 4mm thick tempered glass panels which are designed to meet the highest standards in the industry. The enlarged glass windows permit users to fully display every RGB component in the system, and show off their dedication and skill sets.

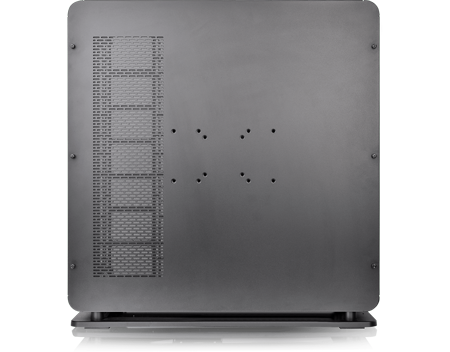

Two-Way Placement Layout

The Core P8 TG is designed for use in two different ways: Wall-mount and vertical placement. Built for customization that reflects the makers’ personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance. Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds vertically.

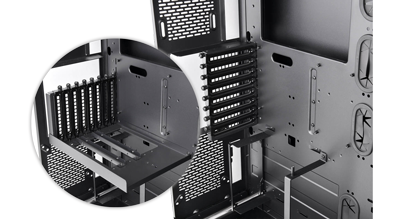

Rotational PCI-E Slots

Rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.

Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.

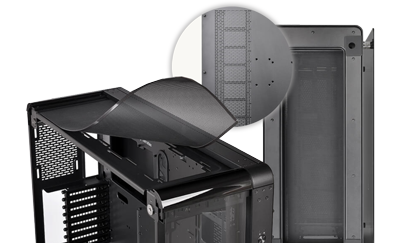

Dust Reduction

Three super fine magnetic filters on the right, top, and at the bottom are designed to provide excellent protection against dirt and dust from the outside of the case and is easily removable for cleaning.


Expansion and Liquid-Cooling Solution

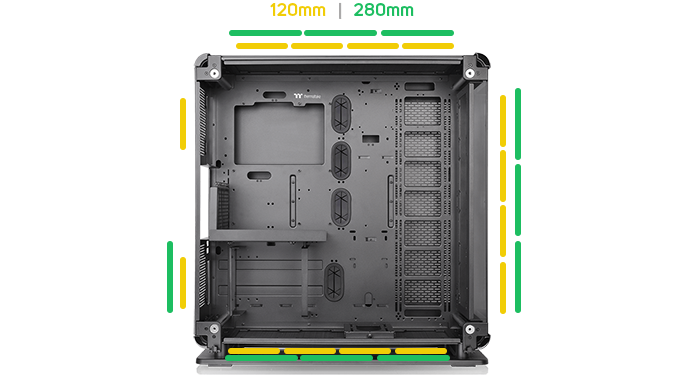

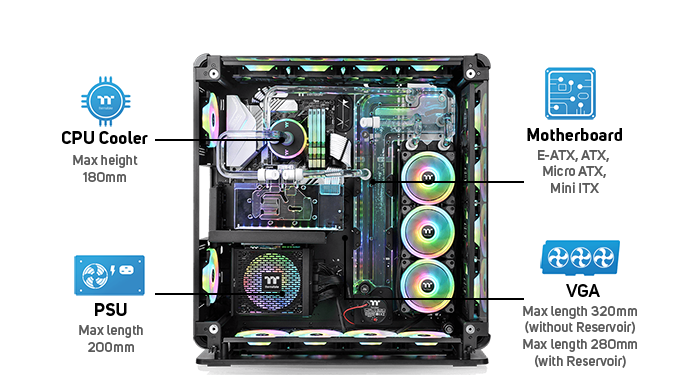

The Core P8 TG has excellent expandability which helps users build a complete thermal solution. It can support up to an E-ATX motherboard, a CPU cooler with a maximum height of 180mm, two-way VGA placement of up to 320mm in length (without reservoir), a power supply with a length of up to 200mm, and up to six 2.5” SSD or three 3.5” HDD. When it comes to cooling solution, the Core P8 TG is optimized for air cooling and advanced AIO/DIY liquid cooling components as well. For example, you can either house up to 18 x 120mm radiator fans in total or have our Pacific Core P5 DP-D5 Plus Distro-Plate with Pump Combo to build an eye-catching and advanced liquid-cooled PC. With the remarkable hardware expansion and liquid cooling support, the Core P8 TG has endless possibilities for users to build their dream machine.

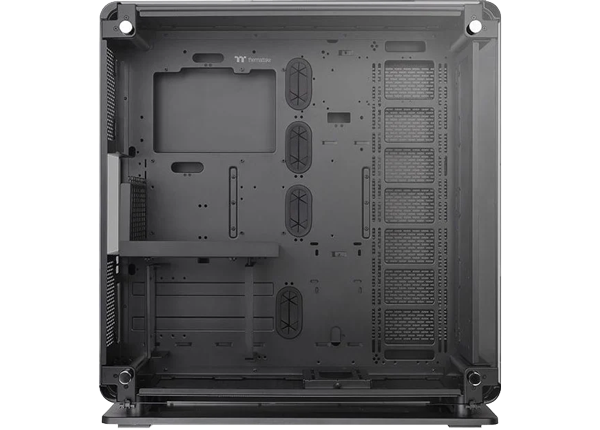

DMD – Dismantlable Modular Design

The Core P8 TG enables user to freely build the system from the ground up with given modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps and enjoys installation in a breeze with Dismantlable Modular Design.

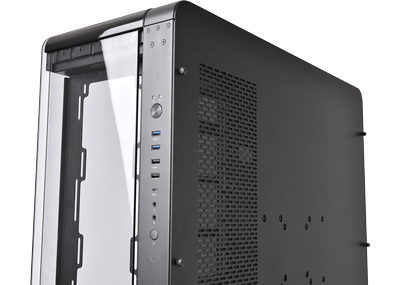

Handy I/O Ports

Two 3.0 USB, two 2.0 USB, and one Type-C port placed at the front-right panel to grant direct access when needed.

Features
Connection: Front I/O ports with 1 x Type C, 2 x USB 3.0 and 2 x USB 2.0.
Expansion: 3 drive bays with modular drive racks design.
Support: LCS & Advance Cable Management.
Specifications
Core Chassis Specifications
Case Edition Core P8 TG
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX (12" x 13")
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB Type-C
Drive Bays
  • 1 x 2.5" Internal (Accessible)
  • 3 x 3.5" / 6x 2.5" Internal
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360/420/480mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility 1 x 120/240mm
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 120/140/240/280/360/420/480mm
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 320 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
  • 1 x Top
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters
LED Lighting Colour RGB
LED Lighting Support & Control
Power Supply Compatibility
PSU Included Yes
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 200 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC
Dimensions 260 x 660 x 626 (WxHxD mm)
Weight 22.6 kg (Approx)
Please Note
Additional Information
Scan Code LN108961
Model Number CA-1Q2-00M1WN-00
GTIN 4713227523899
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
