Core P5 Thermaltake Tempered Glass Open Frame Glass PC Gaming Case
Thermaltake Core P5 Mid Tower Case, Tempered Glass Edition, Wall Mountable, Dismantlable Modular Design, Black
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

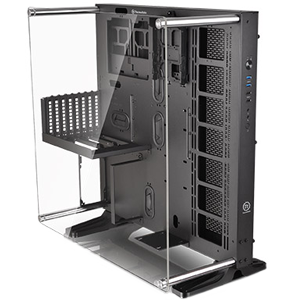

Built for Makers
By practicing and incorporating the idea of “maker movement” as well as 3D printing, Thermaltake designs the open frame pamoramic viewing chassis as anyone can access and do his/her own mods as well as print out his/her own ideas using available liquid cooling components and manuals without boundaries.
Users can download 3D printing accessory files on 3D Makers Microsite, printing them out to do a special mod.

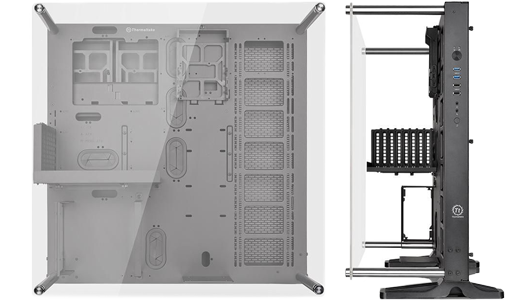

5mm Thick Tempered Glass Window with Stunning Viewing
The Core P5 is a true open frame case with viewing capability of showing front and back full sides. The tempered glass panels feature 5mm thickness that meets the highest standards in the industry. Moreover, unlike any other cases on the market, the enlarged glass windows permit users to fully display every RGB component of the system, and show off their dedication and skill set.

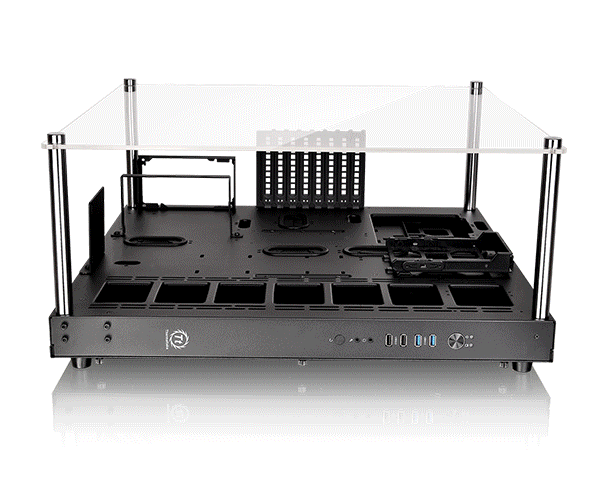

3-Way Placement Layout
The Core P5 is designed for use in three different ways: Wall-mount, vertical, and horizontal placement. Built for customization that reflects the makers’ personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance.
Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds vertically or horizontally.
DMD – Dismantlable Modular Design
The Core P5 enables user to freely build the system from the ground up with given modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps and enjoys installation in a breeze with Dismantlable Modular Design.

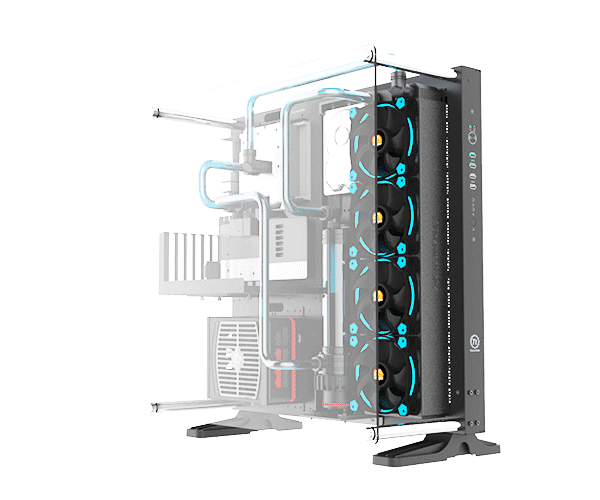

Versatile GPU & PSU Orientation
Show off your graphic card and power supply with our special design bracket. The Core P5 has included a riser cable for you to choose the way you want to build the system. Further, the Core P5 also has the support for vertical PSU layout when ITX motherboard is applied.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.
Designed for high-end gaming system compatibility, the Core P5 supports motherboard up to standard ATX, a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 320mm in length without reservoir. Further, the modular drive racks allow users to easily install up to four 3.5”/2.5” storage devices. Users can remove the drive bays to gain maximum space for cable management up to 45mm.
• 3.5” or 2.5” HDD Drive Compatible

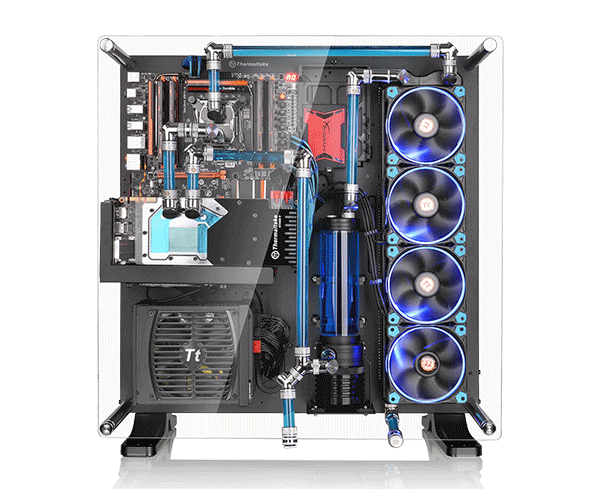

Supreme Liquid-Cooling Support
The Core P5 has the capability to deliver an excellent cooling efficiency, and enables users to build a complete thermal solution, including DIY/AIO liquid-cooling systems and air-cooling units. It supports up to either 480mm liquid cooling radiator, or a 140mm case fans with a long graphic card at the same time. Users can also install an AIO cooler onto the case after mounting the AIO bracket.
Thermaltake Core P5 AIO Bracket (Optional) – Designed to support the AIO liquid cooling system and HDD expansion. The Core P5 can hold up to three brackets, and a single AIO bracket can support one 120mm or 140mm fan. Features P/N CA-1E7-00M1WN-03
Case Type Mid Tower
Dimension (H x W x D) 608 x 333 x 570 mm (23.9 x 13.1 x 22.4 inch)
Net Weight 18.45 kg
Drive Bays Accessible 1 x 3.5’’ or 2.5’’ (HDD tray)
Hidden 3 x 3.5’’ or 2.5’’ (Behind the M/B tray)
Expansion Slots 8
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Left Side: 4 x 120mm 3 x 140mm
Radiator Support Left Side: 1 x 480mm 1 x 420mm
Clearance CPU cooler height limitation:
VGA length limitation:
280mm (With Reservoir)
570mm (Without Reservoir)
PSU length limitation:
