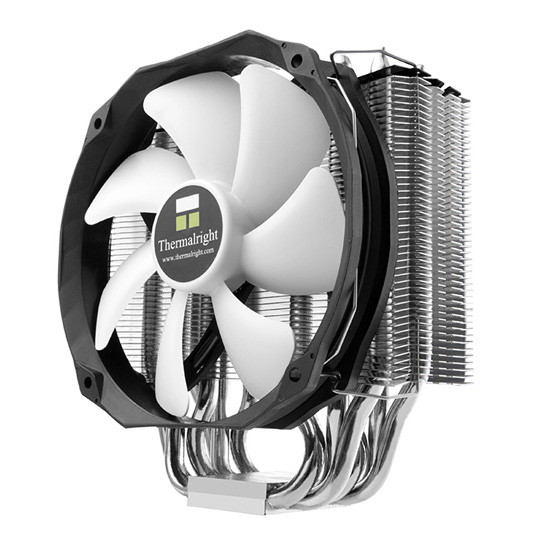

Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD
End Of Life
Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD
Scan code: LN56574 Manufacturer code: 814256000956
End Of Life
  • Thumbnail 1 : Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD
  • Thumbnail 2 : Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD
  • Thumbnail 3 : Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD
  • Thumbnail 4 : Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD
End Of Life

Thermalright True Spirit 140 Power Aluminum Heat Pipe CPU Cooler with Fan for Intel & AMD

Thermalright True Spirit 140 Power CPU Cooler with TY-140 PWM Quiet Fan for Intel & AMD CPU's
MORE INFO
MORE INFO

Scan code: LN56574 Manufacturer code: 814256000956
End of life
This product is no longer available to purchase.
  • 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview • ULTRA style heatsink fin array, with copper base, elevates heatsink’s overall quality.
• Large heatsink fin array, provides dissipating area of up to 150*125mm, make complete use of the airflow, with 140mm or 120mm fan.
• With the max width of 55mm, tall memory spreaders are avoided.

• Support Multiple-Platforms.
• Includes one Thermalright TY-140 PWM fan, Ultra low noise at 21 dBA at max rpm (50cm testing distance)
• Fan-clips are compatible with both 140mm and 120mm fan. Features Heatsink Specifications:
Dimension: L155 mm x W53.4 mm x H171.2 mm
Weight: 880g
Heat pipes: 8mm heatpipe x 6 units
Copper Base: C1100 Pure copper nickel plated

TY-140 FAN Spec
Dimension: L152 mm x H140 mm x W26.5 mm
Weight: 160g
Rated Speed: 900 - 1300 RPM
Noise Level: 17 - 21dBA
Air Flow: 28.3 - 73.6 CFM
Connector: 4 Pin (PWM Fan connector)
